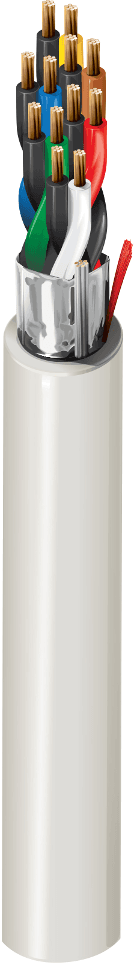

Belden 6545FE 877, Multi Conductor 6 Pair 22 AWG FLRST FS Natural

Belden 6545FE 877 is a Plenum-CMP security & sound cable built with 6 pairs of 22 AWG stranded bare copper conductors and a PVC - Polyvinyl Chloride jacket. It uses a 100% tape shield made from Bi-Laminate (Alum+Poly) with a 24 AWG (7x32) TC drainwire type, and includes a ripcord for easier stripping. Key electrical characteristics include a UL Voltage Rating of 300 V, a Nom. Conductor DCR of 17.5 Ohm/1000ft, and a Max. current of 2 Amps per Conductor at 25ºC.

Key Features

• Plenum-CMP security & sound cable design for indoor installations.
• 6 pairs of 22 AWG stranded bare copper conductors with 7x30 stranding.
• 100% tape shield using Bi-Laminate (Alum+Poly) with a 24 AWG (7x32) TC drainwire type.
• PVC - Polyvinyl Chloride insulation and PVC - Polyvinyl Chloride jacket.
• Includes a ripcord to help speed up stripping and installation.
• UL Voltage Rating: 300 V; Max. current: 2 Amps per Conductor at 25ºC.

Applications

• Designed for security system wiring in indoor environments.
• Use it for intercom/PA installations where paired conductors are needed for signal distribution.
• Choose it for audio/speaker runs in noisy environments where shielding is beneficial.
• Intended for power-limited control applications in indoor settings.
• Well-suited for noisy environment installations where improved noise rejection is desired.
