Belden 7804C B59, Composite SMPTE HDTV Camera Cable Black Matte
Description

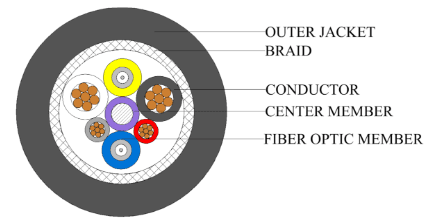

Belden 7804C B59 is a heavy gauge SMPTE 311M HDTV camera cable designed for reliable indoor broadcast connectivity. It combines 2 single mode fibers (OS2, G.657.A2) with 2 TC conductors 24 AWG stranded (7x32) and 2 TC conductors 16 AWG stranded (65x34) to support signal and power needs in one composite design. The cable features PVC insulation, a TC braid shield (95% coverage), and a PVC - Polyvinyl Chloride Belflex® jacket in Black Matte. It is CMR rated and provides max. attenuation of 0.50 dB/km at 1310 nm and 0.50 dB/km at 1550 nm.
Belden 7804C B59 Key Features
- SMPTE cable suitable for SMPTE 311M HDTV cable applications.
- Composite construction combines 2 fibers with 2 TC conductors 24 AWG stranded (7x32) and 2 TC conductors 16 AWG stranded (65x34).
- Fiber type OS2, G.657.A2 with max. attenuation at 1310 nm of 0.50 dB/km and at 1550 nm of 0.50 dB/km.
- PVC insulation with a TC braid shield (95% coverage) for shielded performance.
- PVC - Polyvinyl Chloride Belflex® jacket with Black Matte color/finish.
- NEC / UL compliance: CMR; flammability / reaction to fire: UL1666 Vertical Shaft.
Belden 7804C B59 Applications
- Use it for indoor broadcast connectivity where SMPTE 311M HDTV camera cable is required.
- Enable combined signal and power needs in a single composite cable design for broadcast camera connectivity.
- Choose it for demanding studio and venue environments where a heavy gauge SMPTE cable is needed.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Fiber count | 2 |
| Fibers per subunit | 1 |
| Fiber buffer diameter | 900 µm |
| Fiber buffer material | PVC - Polyvinyl Chloride |
| Fiber color code | Yellow, Blue |
| Nom. diameter | 0.362 in (9.19 mm) |
| Bulk cable weight | 81.3 lbs/1000ft (121 kg/km) |
| Environmental suitability | Indoor |
| Crush resistance | Compression, FOTP-41; 397 lbs. |
| Operating Temperature Range | -40°C to 70°C |
| Installation temperature range | -10°C to 70°C |
| Storage temperature range | -40°C to 70°C |
| CEC / C(UL) compliance | CMG |
| CPR Euroclass | Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 7804C B59100, 7804C B59250, 7804C B59500, 7804C B591000, UPC 612825189381 |
| Priced Per | FT |
