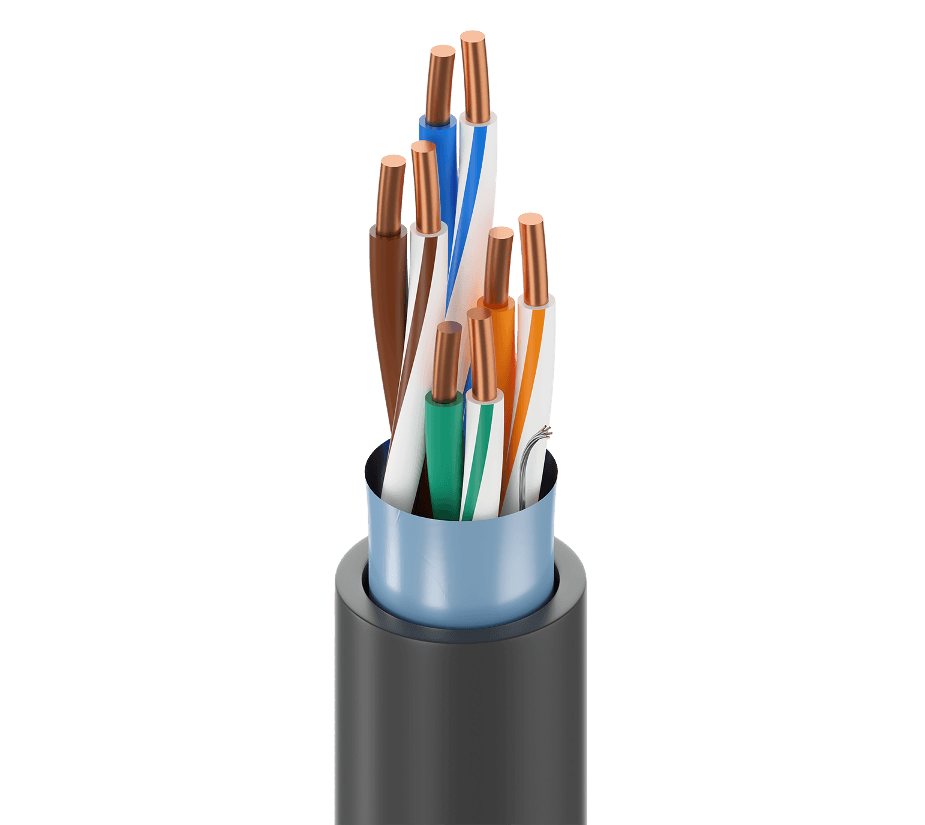

Belden 7903A 010, Industrial Ethernet Cat 5e 4 Pair 22 AWG Shielded PVC
Description
Belden 7903A 010 is an industrial Ethernet Category 5e data cable designed for power-limited tray and harsh-environment networking in factory or process automation. It is built with 4 pair 22 AWG solid bare copper conductors with PO insulation and bonded-pair construction. For EMI protection, it includes an overall Beldfoil® tape shield with 100% coverage plus a 22 AWG (7x30) TC drainwire. The cable has a black PVC outer jacket and includes markings such as PLTC CMR and FT4.
Belden 7903A 010 Key Features
- This industrial Ethernet Category 5e data cable is designed for power-limited tray and harsh-environment networking.
- It features 4 pair 22 AWG solid bare copper conductors with PO insulation and bonded-pair construction.
- For EMI protection, it uses an overall Beldfoil® tape shield with 100% coverage plus a 22 AWG (7x30) TC drainwire.
- A black PVC outer jacket supports use in indoor, outdoor, sunlight resistance, and oil resistance environments.
- Compliance and markings include PLTC CMR, FT4, and UL1666 Riser.
Belden 7903A 010 Applications
- Supports power-limited tray installations where industrial networking cable routing is required.
- Works well in harsh-environment deployments where added protection is needed for networking runs.
- In IIoT systems, it is commonly used to connect networked industrial devices.
- For factory or process automation networks, it is designed to support reliable data communication.
- Connects IP cameras and devices within industrial networking environments.
- Provides general data communication links in industrial Ethernet systems.
Patent Information
- This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Insulation color code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Ripcord | No |
| Overall cable diameter (nominal) | 0.335 in (8.51 mm) |
| Bulk cable weight | 43 lbs/1000ft |
| Max. Conductor DCR | 56.5 Ohm/km (17.2 Ohm/1000ft) |
| Max. mutual capacitance | 17 pF/ft (56 pF/m) |
| Max. capacitance unbalance | 330 pF/100m |
| Max. delay | 510 ns/100m |
| Max. delay skew | 25 ns/100m |
| Nom. velocity of prop. | 70% |
| UL Voltage Rating | 300 V RMS (PLTC, CMR, CMX Outdoor), 600 V (AWM) |
| UL temperature | 75°C |
| Operating temperature | -40°C To +75°C |
| Installation temperature | -25°C To +75°C |
| Storage temperature | -25°C To +75°C |
| Bend radius (stationary min.) | 3.38 in (85.9 mm) |
| Max Pull Tension | 40 lbs (18 kg) |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | CMR, PLTC |
| AWM compliance | AWM 21047 |
| CEC / C(UL) compliance | CMR |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 5e |
| ISO/IEC compliance | ISO/IEC 11801 Cat 5e |
| UK regulation compliance | UKCA Mark |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
