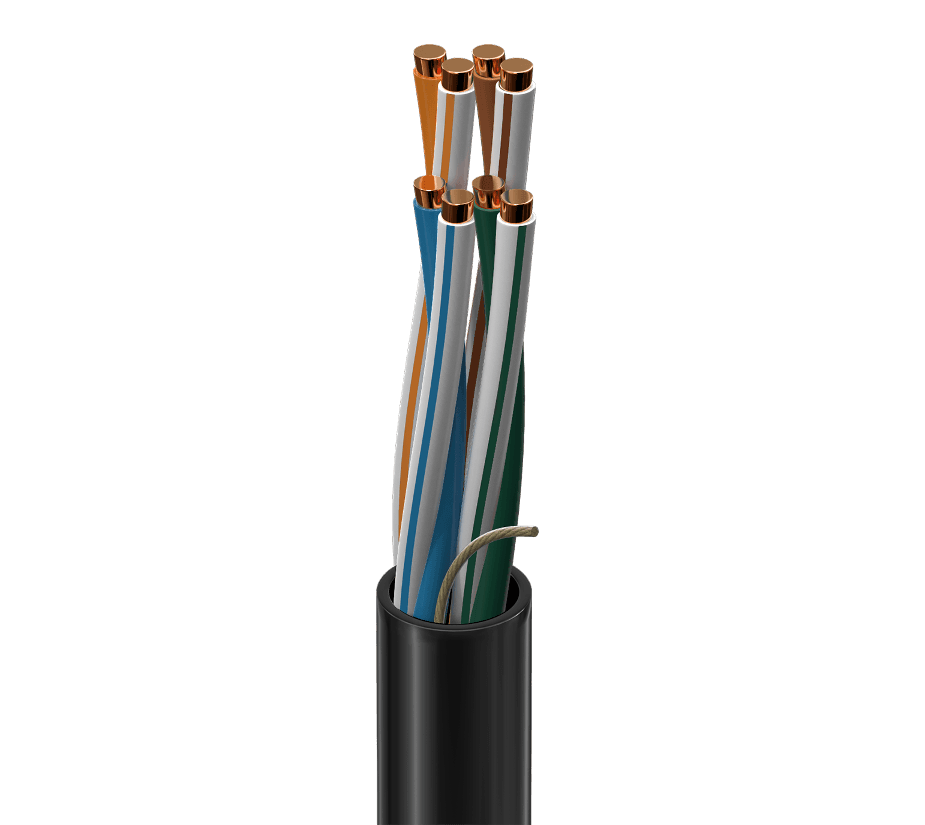

Belden 7922A 010, UTP Cat 5E CMR 4 PAIR 22 AWG Black Jacket
SKU:Belden 7922A 010
● In stock
× 250 ft = Total: 250 ft
Description
Belden 7922A 010 is an Industrial Ethernet Category 5e U/UTP data cable built for reliable data communication in demanding environments. It features 4 bonded pairs of 22 AWG solid BC - Bare Copper conductors with PO - Polyolefin insulation and a PVC - Polyvinyl Chloride outer jacket. The black jacket supports Indoor/Outdoor use with Sunlight Resistance and Oil Resistance, and it meets PLTC CMR/CMX-Outdoor requirements.
Belden 7922A 010 Key Features
- This Industrial Ethernet Category 5e U/UTP - Unshielded Twisted Pair data cable supports dependable data transmission.
- It is constructed with 4 bonded pairs and 22 AWG solid BC - Bare Copper conductors.
- PO - Polyolefin insulation uses the color code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown.
- The PVC - Polyvinyl Chloride outer jacket is Black and includes Ripcord: Yes.
- Environmental suitability includes Indoor/Outdoor use, Sunlight Resistance, and Oil Resistance.
- Compliance includes Article 800, Article 725, CMR, CMX-Outdoor, and PLTC.
Belden 7922A 010 Applications
- It supports power-limited tray installations where a PLTC-rated cable is required.
- For harsh environment installations, it is designed to provide durability.
- In IIoT deployments, it helps maintain consistent data communication.
- Factory or process automation networks commonly use it.
- IP cameras and devices in networked systems can be connected with it.
- It is intended for general data communication runs.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Type | Data |
| Nom. diameter | 0.301 in (7.65 mm) |
| Overall cable diameter (nominal) | 0.301 in (7.65 mm) |
| UL Voltage Rating | 300 V (PLTC, CMR/CMX-Outdoor), 600 V (AWM) |
| Bulk cable weight | 42 lbs/1000ft |
| Max. Conductor DCR | 56.5 Ohm/km (17.2 Ohm/1000ft) |
| Max. capacitance unbalance | 66 pF/100m |
| Max. delay | 510 ns/100m |
| Max. delay skew | 25 ns/100m |
| Nom. velocity of prop. | 70% |
| UL temperature | 60°C |
| Operating | -25°C To +75°C |
| Installation | -10°C To +75°C |
| Storage | -25°C To +75°C |
| Stationary min. bend radius | 1.2 in (30 mm) |
| Max Pull Tension | 40 lbs (18 kg) |
| Flammability / reaction to fire | UL1666 Riser, FT4, IEC 60332-1-2 |
| CPR Euroclass | Eca |
| CEC / C(UL) compliance | CMR |
| AWM compliance | AWM 21047 |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 5e |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-5 |
| Third party performance verification | Category 5e |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Patent | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
