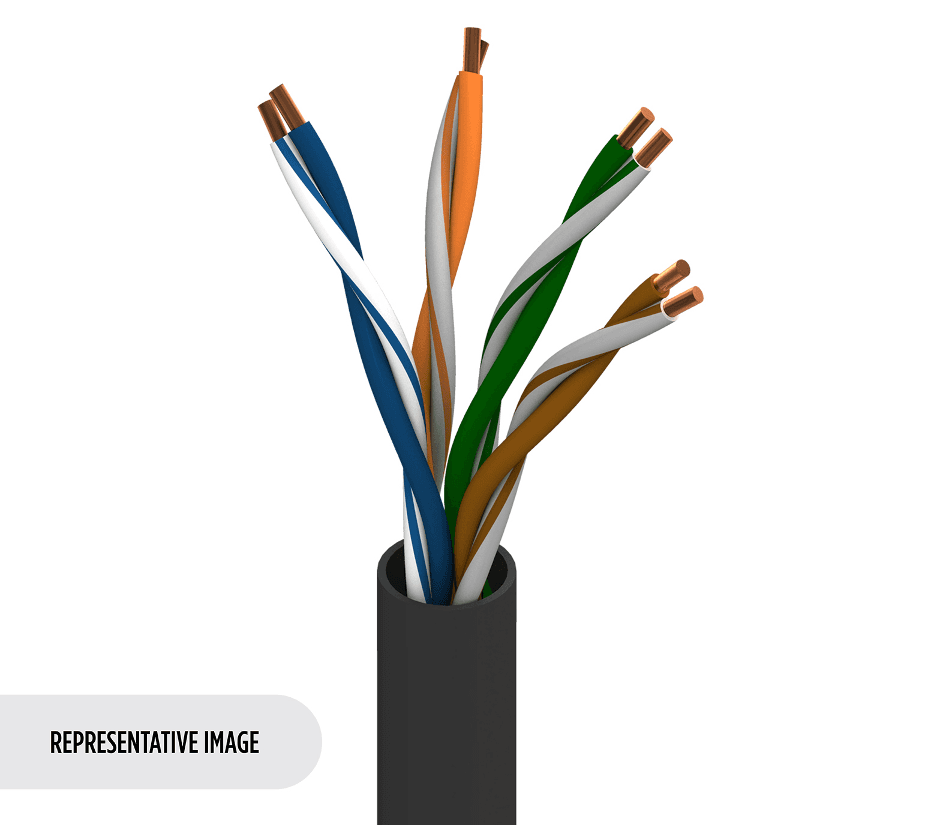

Belden 7923A 010, Cat 5e 4 Pairs 24 AWG PVC Jacket, Black Jacket
SKU:Belden 7923A 010
$416.88
● In stock
× 250 ft = Total: 250 ft
Description
Belden 7923A 010 is an Industrial Ethernet Category 5e data cable with 4 bonded pairs of 24 AWG solid BC - Bare Copper conductors and PO - Polyolefin insulation. It features a black PVC - Polyvinyl Chloride outer jacket with ripcord and is listed for indoor/outdoor use with sunlight resistance and oil resistance. Belden 7923A 010 is rated MSHA CMR and meets ANSI/TIA-568.2-D Category 5e and UL1666 Riser.
Belden 7923A 010 Key Features
- Category 5e data cable for Industrial Ethernet installations.
- U/UTP - Unshielded Twisted Pair construction with 4 pairs and bonded-pair: Yes.
- 24 AWG solid conductors made with BC - Bare Copper.
- PO - Polyolefin insulation with color code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown.
- Black PVC - Polyvinyl Chloride jacket with ripcord: Yes.
- Environmental suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance.
- Standards and ratings: MSHA CMR; ANSI/TIA-568.2-D Category 5e; UL1666 Riser.
High Frequency Performance
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Nom. diameter | 0.230 in (5.84 mm) |
| Overall cable diameter (nominal) | 0.230 in (5.84 mm) |
| Max. Conductor DCR | 93.8 Ohm/km (28.6 Ohm/1000ft) |
| Max. capacitance unbalance | 66 pF/ft |
| Max. delay | 510 ns/100m |
| Max. delay skew | 25 ns/100m |
| Nom. velocity of prop. | 70% |
| UL Voltage Rating | 300 V (CMR), 300 V (CMX-Outdoor) |
| UL temperature | 75°C |
| Operating temperature | -40°C To +75°C |
| Installation temperature | -25°C To +75°C |
| Storage temperature | -25°C To +75°C |
| Bend radius (stationary min.) | 2.5 in (64 mm) |
| Max Pull Tension | 40 lbs (18 kg) |
| Bulk cable weight | 25 lbs/1000ft |
| Flammability / reaction to fire | UL1666 Riser, FT4, IEEE 1202 Vertical Tray Flame Test, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| High frequency performance | Frequency 1 MHz: Max. insertion loss (attenuation) 2.4 dB/100m; Min. NEXT 65.3; Min. PSNEXT 65.3; Min. ACR 62.9; Min. PSACR 62.9; Min. ACRF (ELFEXT) 63.8; Min. PSACRF (PSELFEXT) 60.8; Min. RL (return loss) 20; Max./Min. input impedance (unFitted) 100 ± 12; Max./Min. fitted impedance 105 ± 10 Frequency 4 MHz: Max. insertion loss (attenuation) 4.8 dB/100m; Min. NEXT 56.3; Min. PSNEXT 56.3; Min. ACR 51.5; Min. PSACR 51.5; Min. ACRF (ELFEXT) 51.7; Min. PSACRF (PSELFEXT) 48.7; Min. RL (return loss) 23.6; Max./Min. input impedance (unFitted) 100 ± 12; Max./Min. fitted impedance 100 ± 10 Frequency 8 MHz: Max. insertion loss (attenuation) 6.8 dB/100m; Min. NEXT 51.8; Min. PSNEXT 51.8; Min. ACR 45.0; Min. PSACR 45.0; Min. ACRF (ELFEXT) 45.7; Min. PSACRF (PSELFEXT) 42.7; Min. RL (return loss) 25.4; Max./Min. input impedance (unFitted) 100 ± 12; Max./Min. fitted impedance 100 ± 10 Frequency 10 MHz: Max. insertion loss (attenuation) 7.7 dB/100m; Min. NEXT 50.3; Min. PSNEXT 50.3; Min. ACR 42.6; Min. PSACR 42.6; Min. ACRF (ELFEXT) 43.8; Min. PSACRF (PSELFEXT) 40.8; Min. RL (return loss) 26; Max./Min. input impedance (unFitted) 100 ± 12; Max./Min. fitted impedance 100 ± 10 Frequency 16 MHz: Max. insertion loss (attenuation) 9.7 dB/100m; Min. NEXT 47.3; Min. PSNEXT 47.3; Min. ACR 37.5; Min. PSACR 37.5; Min. ACRF (ELFEXT) 39.7; Min. PSACRF (PSELFEXT) 36.7; Min. RL (return loss) 26; Max./Min. input impedance (unFitted) 100 ± 12; Max./Min. fitted impedance 100 ± 10 Frequency 20 MHz: Max. insertion loss (attenuation) 11.0 dB/100m; Min. NEXT 45.8; Min. PSNEXT 45.8; Min. ACR 34.8; Min. PSACR 34.8; Min. ACRF (ELFEXT) 37.7; Min. PSACRF (PSELFEXT) 34.7; Min. RL (return loss) 26; Max./Min. input impedance (unFitted) 100 ± 12; Max./Min. fitted impedance 100 ± 10 Frequency 25 MHz: Max. insertion loss (attenuation) 12.4 dB/100m; Min. NEXT 44.3; Min. PSNEXT 44.3; Min. ACR 31.9; Min. PSACR 31.9; Min. ACRF (ELFEXT) 35.8; Min. PSACRF (PSELFEXT) 32.8; Min. RL (return loss) 25.5; Max./Min. input impedance (unFitted) 100 ± 15; Max./Min. fitted impedance 100 ± 10 Frequency 31.25 MHz: Max. insertion loss (attenuation) 13.9 dB/100m; Min. NEXT 42.9; Min. PSNEXT 42.9; Min. ACR 29.0; Min. PSACR 29.0; Min. ACRF (ELFEXT) 33.9; Min. PSACRF (PSELFEXT) 30.9; Min. RL (return loss) 25; Max./Min. input impedance (unFitted) 100 ± 15; Max./Min. fitted impedance 100 ± 10 Frequency 62.5 MHz: Max. insertion loss (attenuation) 20.2 dB/100m; Min. NEXT 38.4; Min. PSNEXT 38.4; Min. ACR 18.3; Min. PSACR 18.3; Min. ACRF (ELFEXT) 27.8; Min. PSACRF (PSELFEXT) 24.8; Min. RL (return loss) 23.5; Max./Min. input impedance (unFitted) 100 ± 15; Max./Min. fitted impedance 100 ± 10 Frequency 100 MHz: Max. insertion loss (attenuation) 26.0 dB/100m; Min. NEXT 35.3; Min. PSNEXT 35.3; Min. ACR 9.2; Min. PSACR 9.2; Min. ACRF (ELFEXT) 23.8; Min. PSACRF (PSELFEXT) 20.8; Min. RL (return loss) 22.5; Max./Min. input impedance (unFitted) 100 ± 15; Max./Min. fitted impedance 100 ± 10 Frequency 155 MHz: Max. insertion loss (attenuation) 33.2 dB/100m; Min. NEXT 32.5; Min. PSNEXT 32.5; Min. ACR 4.7; Min. PSACR 4.7; Min. ACRF (ELFEXT) 19.9; Min. PSACRF (PSELFEXT) 16.9; Min. RL (return loss) 19; Max./Min. input impedance (unFitted) 100 ± 18; Max./Min. fitted impedance 100 ± 10 Frequency 200 MHz: Max. insertion loss (attenuation) 38.4 dB/100m; Min. NEXT 30.8; Min. PSNEXT 30.8; Min. ACR 3; Min. PSACR 3; Min. ACRF (ELFEXT) 17.7; Min. PSACRF (PSELFEXT) 14.7; Min. RL (return loss) 19; Max./Min. input impedance (unFitted) 100 ± 20; Max./Min. fitted impedance 100 ± 10 Frequency 250 MHz: Max |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
