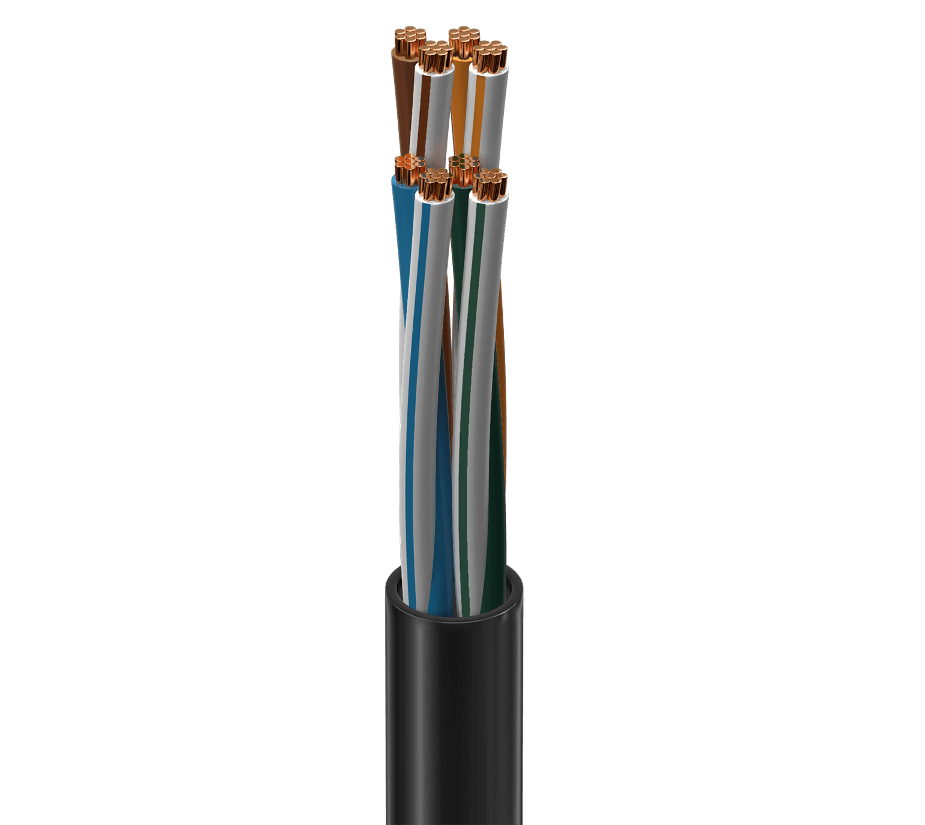

Belden 7930A 010, Cat 5e 4 Pairs 24 AWG PVC Jacket, Black Jacket
SKU:Belden 7930A 010
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden 7930A 010 is an Industrial Ethernet Category 5e data cable for indoor/outdoor networking in outdoor and harsh-environment installations. It features a U/UTP - Unshielded Twisted Pair design with 4 twisted pairs of 24 AWG stranded (7x32) BC - Bare Copper conductors, PO - Polyolefin insulation, and a black PVC - Polyvinyl Chloride outer jacket. The cable is rated CMR and CMX-Outdoor, with sunlight resistance and oil resistance. It also includes sequential marking at two foot intervals for easier installation and identification.
Belden 7930A 010 Key Features
- Industrial Ethernet Category 5e data cable construction for networking applications.
- U/UTP - Unshielded Twisted Pair design with 4 twisted pairs.
- 24 AWG stranded (7x32) BC - Bare Copper conductors.
- PO - Polyolefin insulation with color code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown.
- Black PVC - Polyvinyl Chloride outer jacket.
- Designed for indoor/outdoor use with sunlight resistance and oil resistance.
- NEC / UL compliance includes Article 800, CMR, CMX-Outdoor.
- Sequential marking at two foot intervals supports easier installation and identification.
Belden 7930A 010 Applications
- Outdoor installations where a Category 5e data communication cable is needed are supported.
- Harsh-environment networking locations are supported.
- IIoT networks are supported.
- Factory or process automation networking setups are supported.
- Connections for IP cameras and devices are supported.
- General data communication links are supported.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Overall cable diameter (nominal) | 0.24 in (6.1 mm) |
| Bulk cable weight | 26 lbs/1000ft |
| Max. Conductor DCR | 93.8 Ohm/km (28.6 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/ft |
| Max. delay | 510 ns/100m |
| Max. delay skew | 45 ns/100m |
| Nom. velocity of prop. | 69% |
| Typical delay skew | 12 ns/ft |
| UL Voltage Rating | 300 V (CMR), 300 V (CMX-Outdoor) |
| UL temperature | 60°C |
| Operating temperature | -40°C To +75°C |
| Installation temperature | -25°C To +75°C |
| Storage temperature | -40°C To +85°C |
| Stationary min. bend radius | 0.960 in (24.4 mm) |
| Max Pull Tension | 25 lbs (11 kg) |
| CEC / C(UL) compliance | CMR |
| Flammability / reaction to fire | UL1666 Riser, FT4, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 5e |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-6 |
| ICEA compliance | S-90-661 |
| NEMA Compliance | NEMA WC-63.1 |
| Third party performance verification | Category 5e Patch |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
