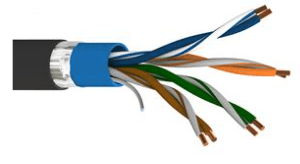

Belden 7937A 010, Cat 5e 4PR 24 AWG Solid Bare Copper LLPE, Black Jacket
SKU:Belden 7937A 010
$2,140.00
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden 7937A 010 is an Industrial Ethernet Category 5e data cable with 4 bonded pairs of 24 AWG solid BC - Bare Copper conductors and PO - Polyolefin insulation. It features an overall Beldfoil® shield with 100% coverage plus a 24 AWG (7x32) TC drainwire, and includes gel-filled waterblocking for harsh environments. The PO - Polyolefin inner and outer jackets support OSP burial use, and the black outer jacket is Sunlight Resistant and Oil Resistant. Key electrical performance includes a 300 V rating, 45 ns/100m max delay skew, and 70% nominal velocity of propagation.
Belden 7937A 010 Key Features
- Category 5e Industrial Ethernet data cable designed for harsh environments, including burial and outdoor IIoT, factory/process automation, and IP camera deployments.
- F/UTP - Foiled/Unshielded Twisted Pair construction with an overall Beldfoil® shield and 100% coverage.
- 4 bonded pairs of 24 AWG solid BC - Bare Copper conductors with PO - Polyolefin insulation.
- Includes a 24 AWG (7x32) TC drainwire for shield termination.
- Gel-filled waterblocking for waterblocked construction.
- PO - Polyolefin inner and outer jackets with a black outer jacket that is Sunlight Resistant and Oil Resistant.
Compliance & Certifications
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Type | Data |
| Overall cable diameter (nominal) | 0.276 in (7.01 mm) |
| Inner Jacket Nominal Diameter | 0.230 in (5.84 mm) |
| Outer shield type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Color Code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Ripcord | No |
| Max. Conductor DCR | 93.8 Ohm/km (28.6 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/ft |
| High frequency performance | 1 MHz: 2.0 dB/100m max insertion loss (attenuation); 65.3 min NEXT [dB]; 62.3 min PSNEXT [dB]; 63 min ACR [dB]; 60 min PSACR [dB]; 63.8 min ACRF (ELFEXT) [dB]; 60.8 min PSACRF (PSELFEXT) [dB]; 20 min RL (Return Loss) [dB]; 23 min SRL (Structural Return Loss) [dB]; 100 ± 15 max./min. input impedance (unFitted) [Ohm]; 100 ± 15 max./min. fitted impedance [Ohm] 4 MHz: 4.1 dB/100m max insertion loss (attenuation); 56.3 min NEXT [dB]; 53.3 min PSNEXT [dB]; 51 min ACR [dB]; 49 min PSACR [dB]; 51.7 min ACRF (ELFEXT) [dB]; 48.7 min PSACRF (PSELFEXT) [dB]; 23 min RL (Return Loss) [dB]; 23 min SRL (Structural Return Loss) [dB]; 100 ± 15 max./min. input impedance (unFitted) [Ohm]; 100 ± 15 max./min. fitted impedance [Ohm] 8 MHz: 5.8 dB/100m max insertion loss (attenuation); 51.8 min NEXT [dB]; 48.8 min PSNEXT [dB]; 46 min ACR [dB]; 43 min PSACR [dB]; 45.7 min ACRF (ELFEXT) [dB]; 42.7 min PSACRF (PSELFEXT) [dB]; 24.5 min RL (Return Loss) [dB]; 24.5 min SRL (Structural Return Loss) [dB]; 100 ± 15 max./min. input impedance (unFitted) [Ohm]; 100 ± 15 max./min. fitted impedance [Ohm] 10 MHz: 6.5 dB/100m max insertion loss (attenuation); 50.3 min NEXT [dB]; 47.3 min PSNEXT [dB]; 43 min ACR [dB]; 41 min PSACR [dB]; 43.8 min ACRF (ELFEXT) [dB]; 40.8 min PSACRF (PSELFEXT) [dB]; 25 min RL (Return Loss) [dB]; 25 min SRL (Structural Return Loss) [dB]; 100 ± 15 max./min. input impedance (unFitted) [Ohm]; 100 ± 15 max./min. fitted impedance [Ohm] 16 MHz: 8.2 dB/100m max insertion loss (attenuation); 47.3 min NEXT [dB]; 44.3 min PSNEXT [dB]; 39 min ACR [dB]; 36 min PSACR [dB]; 39.7 min ACRF (ELFEXT) [dB]; 36.7 min PSACRF (PSELFEXT) [dB]; 25 min RL (Return Loss) [dB]; 25 min SRL (Structural Return Loss) [dB]; 100 ± 15 max./min. input impedance (unFitted) [Ohm]; 100 ± 15 max./min. fitted impedance [Ohm] 20 MHz: 9.3 dB/100m max insertion loss (attenuation); 45.8 min NEXT [dB]; 42.8 min PSNEXT [dB]; 36.5 min ACR [dB]; 33.5 min PSACR [dB]; 37.7 min ACRF (ELFEXT) [dB]; 34.7 min PSACRF (PSELFEXT) [dB]; 25 min RL (Return Loss) [dB]; 25 min SRL (Structural Return Loss) [dB]; 100 ± 15 max./min. input impedance (unFitted) [Ohm]; 100 ± 15 max./min. fitted impedance [Ohm] 25 MHz: 10.4 dB/100m max insertion loss (attenuation); 44.3 min NEXT [dB]; 41.3 min PSNEXT [dB]; 33.9 min ACR [dB]; 30.9 min PSACR [dB]; 35.8 min ACRF (ELFEXT) [dB]; 32.8 min PSACRF (PSELFEXT) [dB]; 24.3 min RL (Return Loss) [dB]; 24.3 min SRL (Structural Return Loss) [dB]; 100 ± 15 max./min. input impedance (unFitted) [Ohm]; 100 ± 15 max./min. fitted impedance [Ohm] 31.25 MHz: 11.7 dB/100m max insertion loss (attenuation); 42.9 min NEXT [dB]; 39.9 min PSNEXT [dB]; 31 min ACR [dB]; 28 min PSACR [dB]; 33.9 min ACRF (ELFEXT) [dB]; 30.9 min PSACRF (PSELFEXT) [dB]; 23.6 min RL (Return Loss) [dB]; 23.6 min SRL (Structural Return Loss) [dB]; 100 ± 15 max./min. input impedance (unFitted) [Ohm]; 100 ± 15 max./min. fitted impedance [Ohm] 62.5 MHz: 17.0 dB/100m max insertion loss (attenuation); 38.4 min NEXT [dB]; 35.4 min PSNEXT [dB]; 22 min ACR [dB]; 19 min PSACR [dB]; 27.8 min ACRF (ELFEXT) [dB]; 24.8 min PSACRF (PSELFEXT) [dB]; 21.5 min RL (Return Loss) [dB]; 21.5 min SRL (Structural Return Loss) [dB]; 100 ± 15 max./min. input impedance (unFitted) [Ohm]; 100 ± 15 max./min. fitted impedance [Ohm] 100 MHz: 22.0 dB/100m max insertion loss (attenuation); 35.3 min NEXT [dB]; 32.3 min PSNEXT [dB]; 14 min ACR [dB]; 11 min PSACR [dB]; 23.8 min ACRF (ELFEXT) [dB]; 20.8 min PSACRF (PSELFEXT) [dB]; 20.1 min RL (Return Loss) [dB]; 20.1 min SRL (Structural Return Loss) [dB]; 100 ± 15 max./min. input impedance (unFitted) [Ohm] |
| Temperature (operating) | -40°C To +75°C |
| Temperature (installation) | -25°C To +75°C |
| Temperature (storage) | -40°C To +85°C |
| Bend radius (stationary min.) | 2.75 in (69.9 mm) |
| Max Pull Tension | 40 lbs (18 kg) |
| Bulk cable weight | 33 lbs/1000ft |
| Environmental suitability | Outdoor, Outdoor, Non-Halogenated, Sunlight Resistance, Oil Resistance |
| CPR compliance | CPR Euroclass |
| Item Type | Belden Networking cables |
| Other Part Numbers | 7937A 0101000, UPC 612825191728 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
