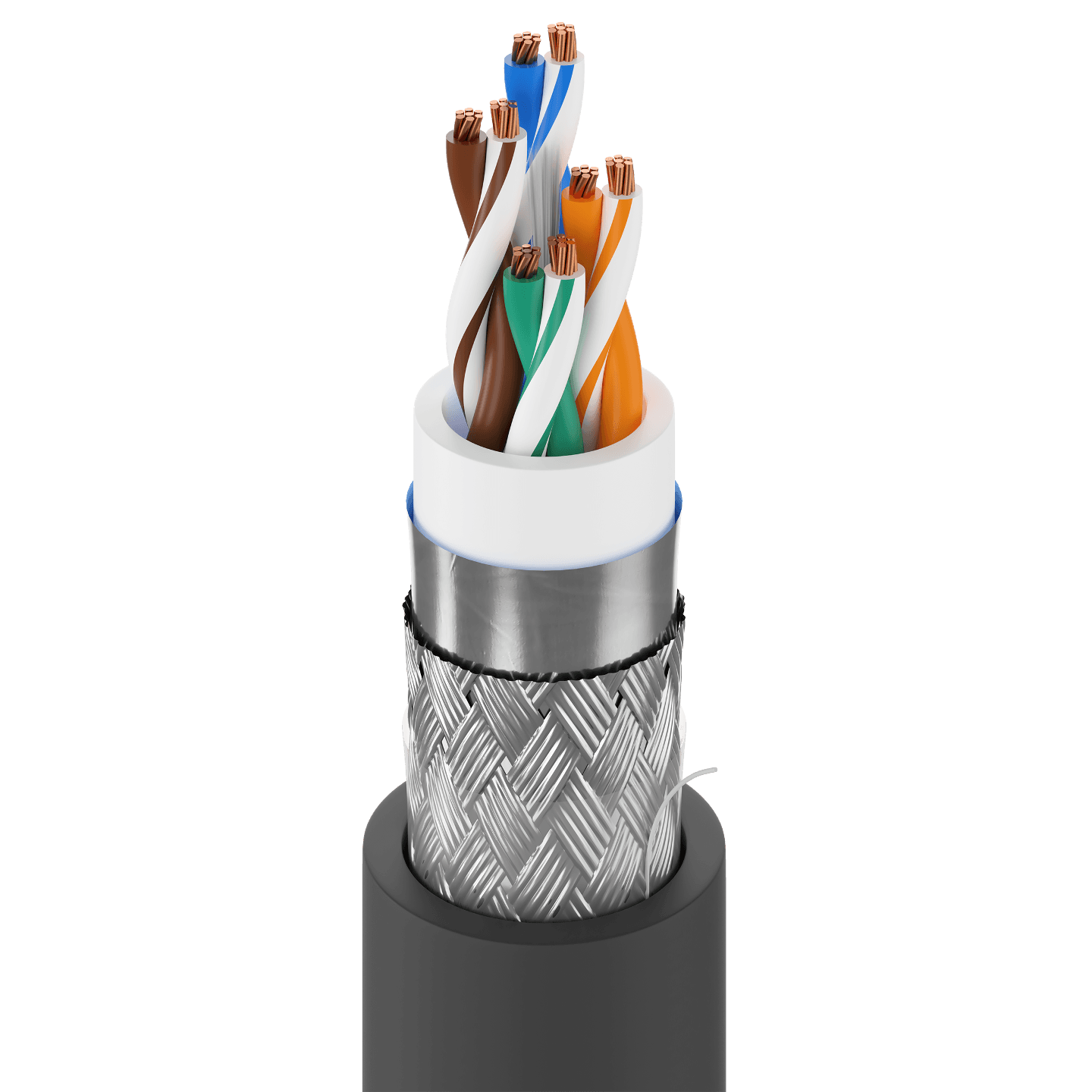

Belden 7938A B59, Cat 5e 4 Pairs 24 AWG Polyolefin TPE
SKU:Belden 7938A B59
● In stock
× 50 ft = Total: 50 ft
Description
Belden 7938A B59 is an Industrial Ethernet Category 5e Cable with 4 bonded pairs of 24 AWG (Stranded) BCA - Bare Copper Alloy conductors and PO - Polyolefin insulation. It features an overall Beldfoil® shield with 100% coverage plus an 85% Tinned Copper (TC) braid for EMI protection. A TPE inner jacket and TPE outer jacket provide sunlight resistance and oil resistance, and it is rated High Flex 10M cycles at 10xOD AWM 20606. Key electrical characteristics include a UL Voltage Rating of 300 V and a Max. Conductor DCR of 93.8 Ohm/km (28.6 Ohm/1000ft).
Belden 7938A B59 Key Features
- Industrial Ethernet Category 5e Cable designed for data communication.
- 4 bonded pairs of 24 AWG conductors with 7x32 stranding and BCA - Bare Copper Alloy material.
- Overall Beldfoil® shield with 100% coverage plus an 85% Tinned Copper (TC) braid for EMI protection.
- TPE inner jacket and TPE outer jacket with jacket color: Black.
- Environmental suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance.
- High-flex rating: High Flex 10M cycles at 10xOD AWM 20606.
- Flammability / reaction to fire: UL 1581 (Vertical Tray), (VW-1), FT1.
- CPR compliance: CPR Euroclass: Eca.
- UK regulation compliance: UKCA Mark.
- APAC compliance: China RoHS II (GB/T 26572-2011).
- European directive compliance: EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16.
Belden 7938A B59 Applications
- Use in robotic systems where continuous motion and repeated flexing are part of normal operation.
- Install in harsh environments where rugged construction is needed for reliable connectivity.
- Support IIoT networks that connect industrial devices for data communication.
- Fit factory or process automation setups that require consistent Ethernet communication between equipment.
- Connect IP cameras and devices that rely on stable network connections for data transmission.
- Provide general data communication links in industrial environments.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Insulation Material | PO - Polyolefin |
| Color Code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Tape shield | Bi-Laminate (Alum+Poly), 100% |
| Braid shield | Tinned Copper (TC), 85% |
| Inner jacket separator | Central Filler |
| Inner jacket separator material | TPE - Thermoplastic Elastomer |
| Inner jacket ripcord | No |
| Outer jacket separator | Polyester Tape |
| Outer jacket separator material | TPE - Thermoplastic Elastomer |
| Outer jacket ripcord | Yes |
| Inner Jacket Nominal Diameter | 0.254 in (6.45 mm) |
| Overall cable diameter (nominal) | 0.342 in (8.69 mm) |
| Outer jacket nominal diameter | 0.342 in (8.69 mm) |
| Bulk cable weight | 62 lbs/1000ft |
| UL Voltage Rating | 300 V |
| Max. Conductor DCR | 93.8 Ohm/km (28.6 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/ft |
| Nom. velocity of prop. | 69% |
| Max. delay | 510 ns/100m |
| Max. delay skew | 45 ns/100m |
| Typical delay skew | 12 ns/ft |
| Stationary minimum bend radius | 3.5 in (89 mm) |
| Max Pull Tension | 40 lbs (18 kg) |
| UL temperature | 60°C |
| Operating temperature | -40°C To +80°C |
| Installation temperature | -25°C To +75°C |
| Storage temperature | -40°C To +80°C |
| Patent information | https://www.belden.com/patents |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
