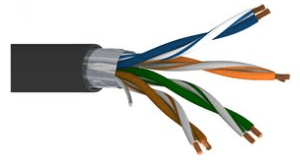

Belden 7939A 010, Cat 5e 4 Pairs 24 AWG PVC Jacket, Black Jacket

Belden 7939A 010 is an Industrial Ethernet Category 5e cable designed for outdoor and harsh-environment networks. It features 4 bonded pairs of 24 AWG (7x32) BC - Bare Copper conductors, PO - Polyolefin insulation, and an overall Beldfoil® shield. The PVC - Polyvinyl Chloride outer jacket is sunlight- and oil-resistant and supports CMR and CMX-Outdoor performance. The cable is sequentially marked at two foot intervals to aid pulling and identification.

Belden 7939A 010 Key Features

• Industrial Ethernet Category 5e cable construction for data communication networks.
• 4 bonded pairs with 24 AWG (7x32) BC - Bare Copper conductors.
• PO - Polyolefin insulation with the specified insulation color code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown.
• Overall Beldfoil® shield with tape construction, Polyester + Bi-Laminate (Alum+Poly) material, and 100% coverage.
• PVC - Polyvinyl Chloride outer jacket in Black with sunlight resistance and oil resistance.
• Sequential marking at two foot intervals for easier pulling and identification.

Belden 7939A 010 Applications

• Use it for outdoor network runs where sunlight resistance is needed.
• Install it in harsh-environment locations where oil resistance is required.
• Deploy it in IIoT networks to connect industrial devices for data communication.
• Choose it for factory or process automation environments that require Industrial Ethernet connectivity.
• Connect IP cameras and devices in networked security or monitoring systems with it.
• Support general data communication links in compatible Category 5e network infrastructure.
