Belden 7940A 010, Multi Conductor Industrial Cat 6 CMR 23 AWG FRPVC
SKU:Belden 7940A 010
$2,160.00
● In stock
× 1,000 ft = Total: 1,000 ft
Description

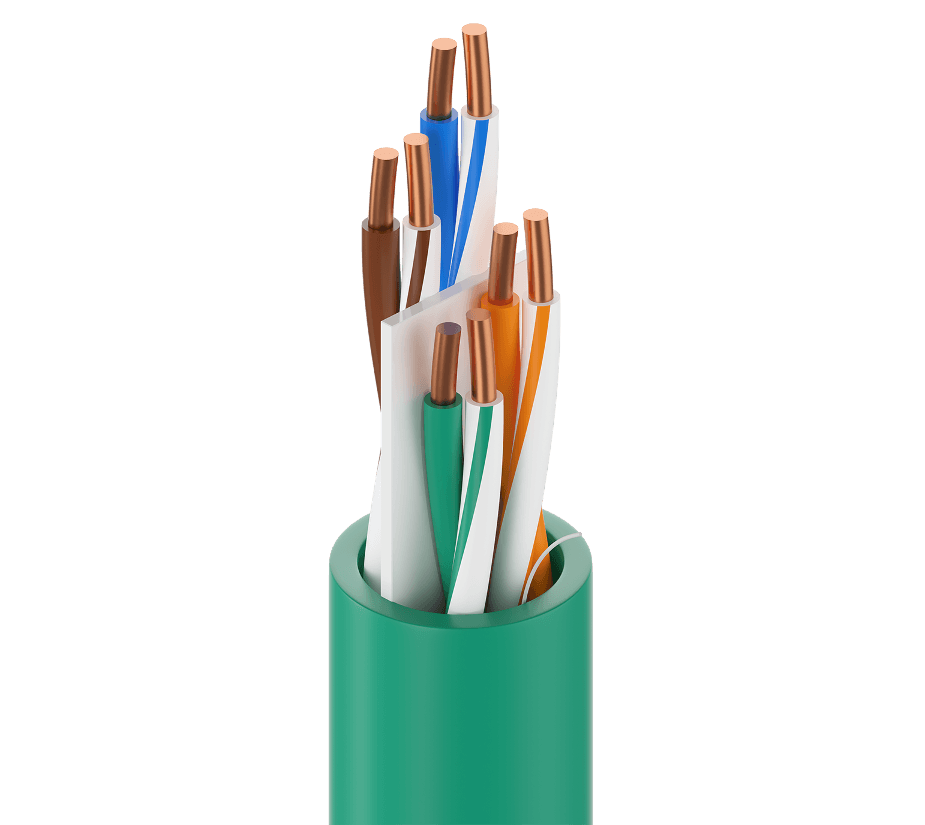

Belden 7940A 010 is a Category 6 industrial Ethernet data cable with 4 bonded pairs of 23 AWG solid BC - Bare Copper conductors and PO - Polyolefin insulation. It features a black DATATUFF PVC jacket and a U/UTP - Unshielded Twisted Pair construction for data communication in indoor/outdoor and harsh-environment installations. A patented dielectric tape separator and ripcord help support easier handling. It is rated 300 V (CMR), 300 V (CMX-Outdoor) and has a UL temperature of 75°C.
Belden 7940A 010 Key Features
- Category 6 data cable construction designed for industrial Ethernet data communication.
- U/UTP - Unshielded Twisted Pair design with 4 bonded pairs.
- 23 AWG solid BC - Bare Copper conductors.
- PO - Polyolefin insulation with color code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown.
- Black DATATUFF PVC jacket (PVC - Polyvinyl Chloride).
- Patented dielectric tape separator and ripcord for easier handling.
- Rated 300 V (CMR), 300 V (CMX-Outdoor) and UL temperature 75°C.
High Frequency Performance
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Type | Data |
| Overall cable diameter (nominal) | 0.25 in (6.4 mm) |
| Max. Conductor DCR | 82 Ohm/km (25 Ohm/1000ft) |
| Max. capacitance unbalance | 330 pF/ft |
| Max. delay | 537 ns/100m |
| Max. delay skew | 45 ns/100m |
| Nom. velocity of prop. | 72% |
| Operating temperature | -40°C To +75°C |
| Installation temperature | -20°C To +75°C |
| Storage temperature | -40°C To +75°C |
| Bend radius (stationary min.) | 2.5 in (64 mm) |
| Max Pull Tension | 40 lbs (18 kg) |
| Bulk cable weight | 30 lbs/1000ft (45 kg/km) |
| Environmental suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Aerial |
| Fire rating | Riser |
| Flammability / reaction to fire | UL1666 Riser, FT4, IEEE 1202 Vertical Tray Flame Test, IEC 60332-1-2 |
| NEC / UL compliance | Article 800, CMR |
| High frequency performance | Frequency 1 MHz: Max. Insertion Loss (Attenuation) 2.0 dB/100m; Min. NEXT 74.3 dB; Min. PSNEXT 72.3 dB; Min. ACR 72.3 dB; Min. PSACR 70.3 dB; Min. ACRF (ELFEXT) 67.8 dB; Min. PSACRF (PSELFEXT) 64.8 dB; Min. RL (Return Loss) 21 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm Frequency 4 MHz: Max. Insertion Loss (Attenuation) 3.8 dB/100m; Min. NEXT 65.3 dB; Min. PSNEXT 63.3 dB; Min. ACR 61.5 dB; Min. PSACR 59.5 dB; Min. ACRF (ELFEXT) 55.8 dB; Min. PSACRF (PSELFEXT) 52.7 dB; Min. RL (Return Loss) 24 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm Frequency 8 MHz: Max. Insertion Loss (Attenuation) 5.3 dB/100m; Min. NEXT 60.8 dB; Min. PSNEXT 58.8 dB; Min. ACR 55.4 dB; Min. PSACR 53.4 dB; Min. ACRF (ELFEXT) 49.7 dB; Min. PSACRF (PSELFEXT) 46.7 dB; Min. RL (Return Loss) 25.5 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm Frequency 10 MHz: Max. Insertion Loss (Attenuation) 6 dB/100m; Min. NEXT 59.3 dB; Min. PSNEXT 57.3 dB; Min. ACR 53.3 dB; Min. PSACR 51.3 dB; Min. ACRF (ELFEXT) 47.8 dB; Min. PSACRF (PSELFEXT) 44.8 dB; Min. RL (Return Loss) 26 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm Frequency 16 MHz: Max. Insertion Loss (Attenuation) 7.6 dB/100m; Min. NEXT 56.2 dB; Min. PSNEXT 54.3 dB; Min. ACR 48.7 dB; Min. PSACR 46.7 dB; Min. ACRF (ELFEXT) 43.7 dB; Min. PSACRF (PSELFEXT) 40.7 dB; Min. RL (Return Loss) 26 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm Frequency 20 MHz: Max. Insertion Loss (Attenuation) 8.5 dB/100m; Min. NEXT 54.8 dB; Min. PSNEXT 52.8 dB; Min. ACR 46.3 dB; Min. PSACR 44.3 dB; Min. ACRF (ELFEXT) 41.8 dB; Min. PSACRF (PSELFEXT) 38.8 dB; Min. RL (Return Loss) 26 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm Frequency 25 MHz: Max. Insertion Loss (Attenuation) 9.5 dB/100m; Min. NEXT 53.3 dB; Min. PSNEXT 51.3 dB; Min. ACR 43.8 dB; Min. PSACR 41.8 dB; Min. ACRF (ELFEXT) 39.8 dB; Min. PSACRF (PSELFEXT) 36.8 dB; Min. RL (Return Loss) 25.3 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm Frequency 31.25 MHz: Max. Insertion Loss (Attenuation) 10.7 dB/100m; Min. NEXT 51.9 dB; Min. PSNEXT 49.9 dB; Min. ACR 41.2 dB; Min. PSACR 39.2 dB; Min. ACRF (ELFEXT) 37.9 dB; Min. PSACRF (PSELFEXT) 34.9 dB; Min. RL (Return Loss) 24.6 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm Frequency 62.5 MHz: Max. Insertion Loss (Attenuation) 15.4 dB/100m; Min. NEXT 47.4 dB; Min. PSNEXT 45.4 dB; Min. ACR 32 dB; Min. PSACR 30 dB; Min. ACRF (ELFEXT) 31.9 dB; Min. PSACRF (PSELFEXT) 28.9 dB; Min. RL (Return Loss) 22.5 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm; Max./Min. Fitted Impedance 100 ± 15 Ohm Frequency 100 MHz: Max. Insertion Loss (Attenuation) 19.8 dB/100m; Min. NEXT 44.3 dB; Min. PSNEXT 42.3 dB; Min. ACR 24.5 dB; Min. PSACR 22.5 dB; Min. ACRF (ELFEXT) 27.8 dB; Min. PSACRF (PSELFEXT) 24.8 dB; Min. RL (Return Loss) 21.1 dB; Max./Min. Input Impedance (unFitted) 100 ± 15 Ohm Frequency 155 MHz: Max. Insertion Loss (Attenuation) 25.2 dB/100m; Min. NEXT 41.5 dB; Min. PSNEXT 39.5 dB; Min. ACR 16.3 dB; Min. PSACR 14.3 dB; Min. ACRF (ELF |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
