Belden 7957A 010, Cat 5e 4 Pairs 24 AWG PVC Jacket, Black Jacket

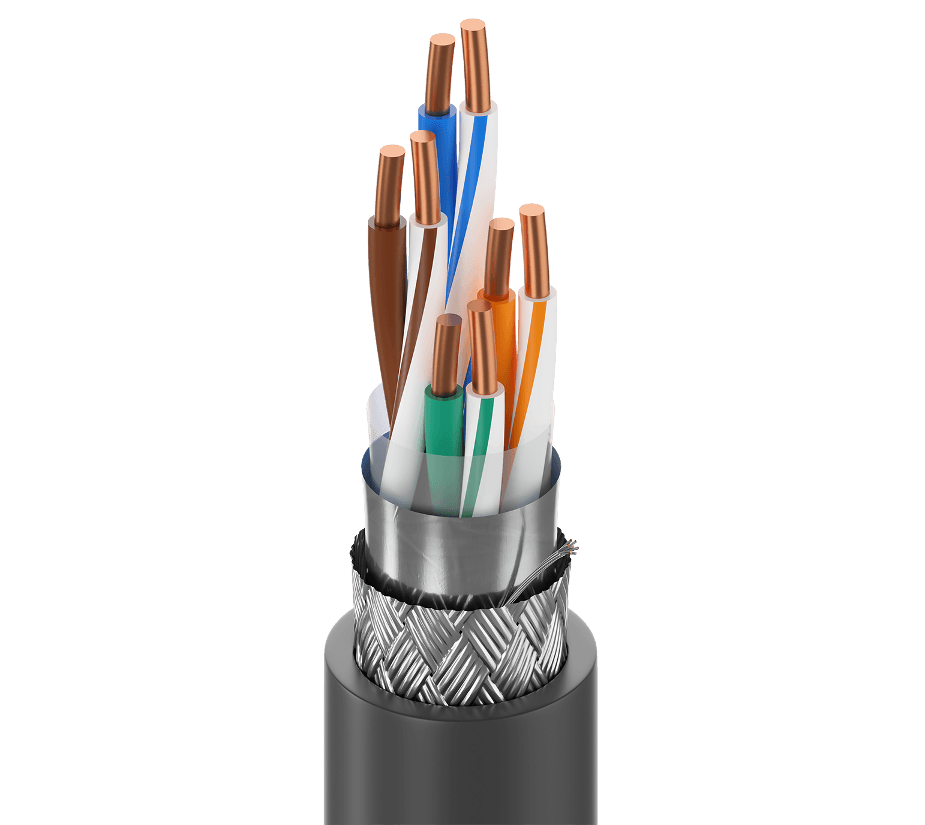

Belden 7957A 010 is an Industrial Ethernet Category 5e cable with 4 bonded pairs of 24 AWG solid bare copper conductors and PO insulation. It includes an overall Beldfoil® shield plus a 70% tinned copper braid, along with a 26 AWG (Solid) TC drainwire. The black PVC outer jacket is sunlight- and oil-resistant, supports indoor/outdoor use, and is rated CMR and CMX-Outdoor. Seq. Marking at 2 ft. in helps with identification during pulls.

Belden 7957A 010 Key Features

• Category 5e data category for Industrial Ethernet installations.
• 4 bonded pairs with 24 AWG solid bare copper conductors.
• PO - Polyolefin insulation with color code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown.
• Overall shield (tape): Polyester + Bi-Laminate (Alum+Poly), 100% coverage.
• Overall shield (braid): Tinned Copper (TC), 70% coverage, plus a 26 AWG (Solid) TC drainwire.
• PVC - Polyvinyl Chloride outer jacket in black with sunlight resistance and oil resistance for indoor/outdoor suitability.
• Jacket rating: CMR CMX-Outdoor.
• Seq. Marking at 2 ft. in for easier pulls and identification.

Belden 7957A 010 Applications

• Use it for data communication in noisy environment locations where EMI protection is important.
• Install it outdoors and in other harsh environment settings.
• Place it in cabinet with high volt devices, such as motor control center, where organized routing and identification are helpful.
• Deploy it for IIoT and factory or process automation networks.
• Connect IP cameras and devices in industrial or outdoor environments with it.
