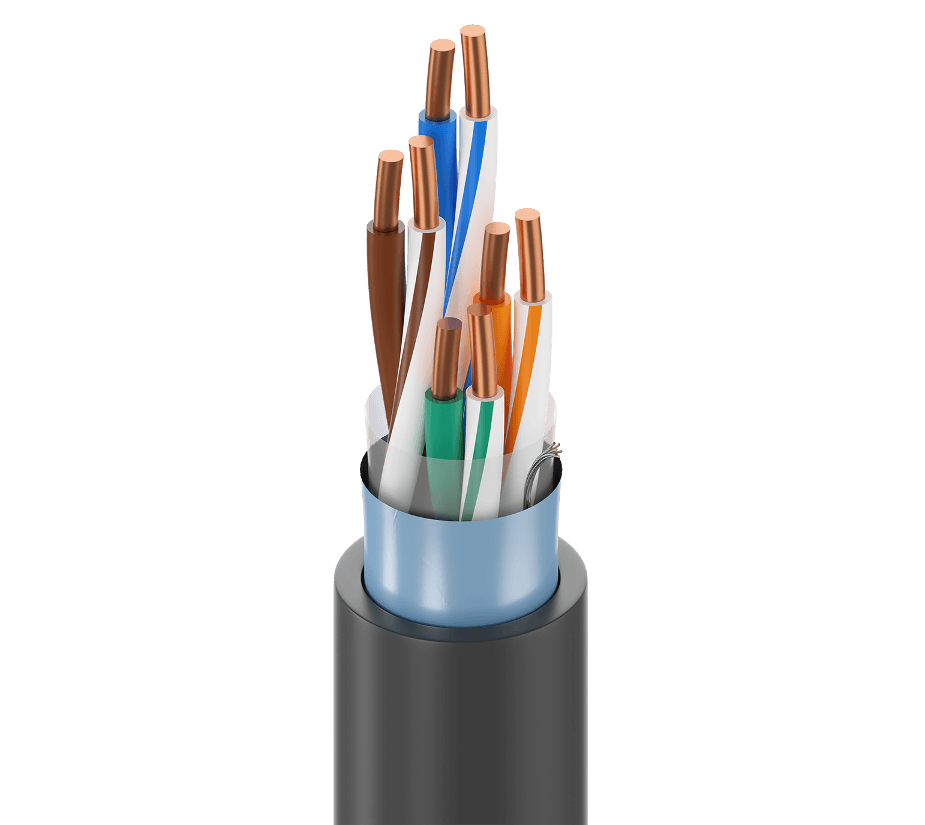

Belden 7958A 010, Cat 5e 4 Pairs 24 AWG PVC Jacket, Black Jacket

Belden 7958A 010 is an Industrial Ethernet Category 5e cable designed for use in noisy and harsh environments. It features 4 bonded pairs of 24 AWG solid bare copper conductors with PO insulation and an overall Beldfoil® shield for noise immunity. The black PVC jacket is sunlight- and oil-resistant for Indoor/Outdoor suitability, and the cable includes a drain wire and rip cord to simplify termination and handling. It is rated CMR and has a UL voltage rating of 300 V (CMR, CMX-Outdoor), 600 V (AWM 21047).

Belden 7958A 010 Key Features

• Category 5e data cable construction supports Industrial Ethernet installations.
• 4 bonded pairs of 24 AWG solid bare copper conductors help maintain pair integrity in demanding environments.
• Overall Beldfoil® shield with 100% coverage improves noise immunity in electrically noisy areas.
• Black PVC jacket is listed as sunlight resistance and oil resistance and is suited for Indoor/Outdoor use.
• Includes a 24 AWG (7x32) TC drain wire and a rip cord for easier termination and handling.
• Rated CMR with UL voltage rating of 300 V (CMR, CMX-Outdoor), 600 V (AWM 21047).

Belden 7958A 010 Applications

• Designed for noisy environment installations where improved noise immunity is needed.
• Used in mining environments where cabling may be exposed to harsh conditions.
• Suitable for in cabinet routing with high volt devices, such as motor control center.
• Supports harsh environment deployments where durability and handling features are important.
• Commonly used in IIoT networks to connect industrial devices and infrastructure.
• Fits factory or process automation systems where consistent data communication is required.
• Supports IP cameras and devices in industrial or facility environments.
• Used for data communication links in industrial Ethernet networks.
