Belden 7960A 1SW, PROFINET CAT5E 22 AWG 2 PAIR SF UT FRPE PV
SKU:Belden 7960A 1SW
$1,353.00
● In stock
× 500 ft = Total: 500 ft
Description

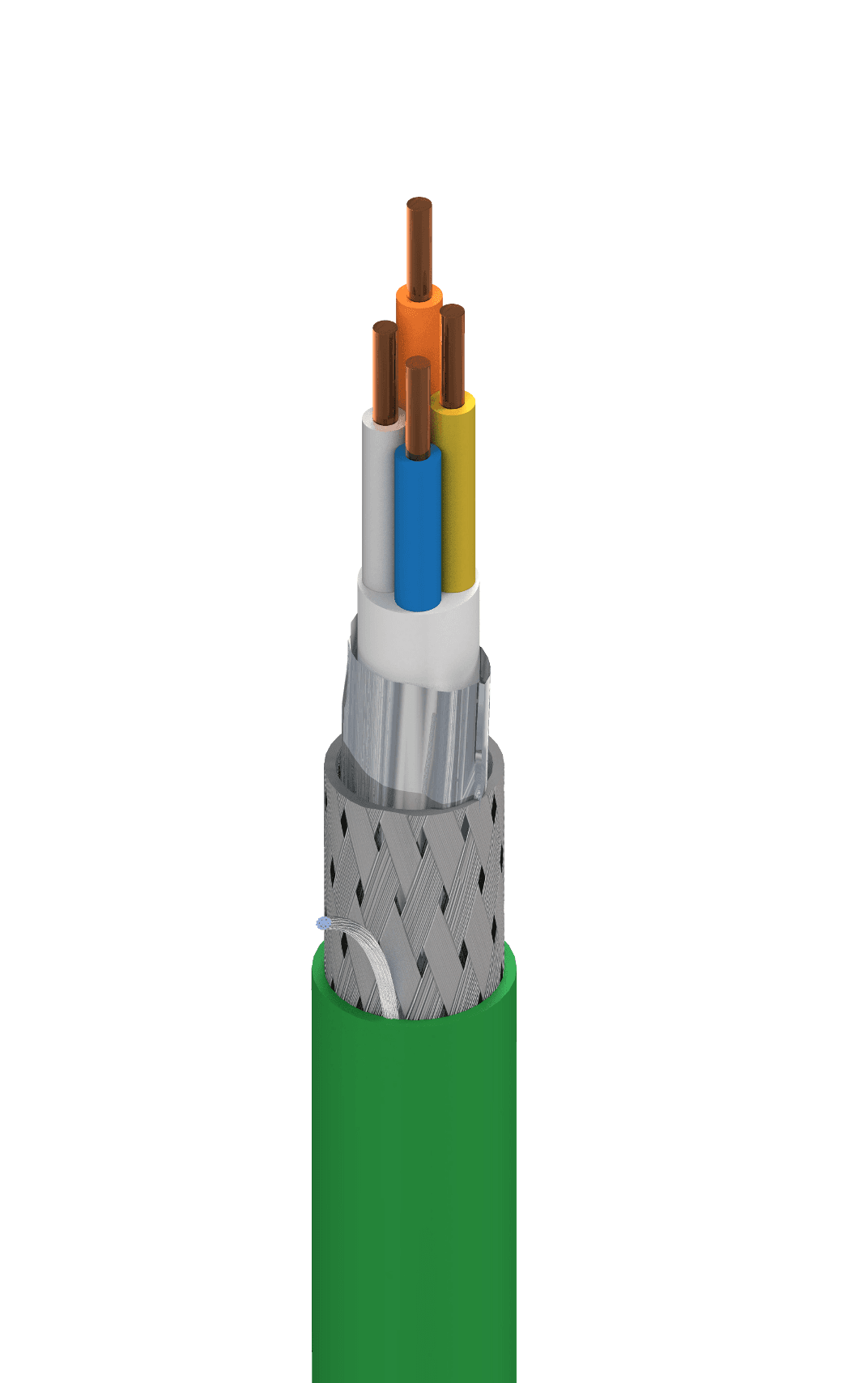

Belden 7960A 1SW is an Industrial Ethernet Category 5e PROFINET Cable for reliable data communication in outdoor and harsh-environment automation networks. It is built with 22 AWG solid bare copper conductors, PO - Polyolefin insulation, and a PVC - Polyvinyl Chloride outer jacket. For EMI reduction in demanding installations, it uses an overall Beldfoil® + Tinned Copper (TC) braid (85%) shield. It supports controlled electrical performance up to 100 MHz and carries CMG CMX-Outdoor ratings for indoor/outdoor use, including sunlight and oil resistance.
Belden 7960A 1SW Key Features
- This Industrial Ethernet Category 5e PROFINET Cable is designed for reliable data communication.
- It features 22 AWG solid bare copper conductors in quad(s) construction.
- Overall shielding includes Bi-Laminate (Alum+Poly), 100% tape plus Tinned Copper (TC), 85% braid for EMI reduction.
- The PVC - Polyvinyl Chloride outer jacket has a CMG CMX-Outdoor rating for indoor/outdoor use, including sunlight and oil resistance.
- It provides controlled electrical performance up to 100 MHz.
Compliance & Certifications
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Data category | Category 5e |
| Insulation | PO - Polyolefin |
| Insulation color code | White, Blue, Yellow, Orange |
| Inner jacket material | PE - Polyethylene |
| Inner Jacket Nominal Diameter | 0.164 in (4.17 mm) |
| Outer jacket nominal diameter | 0.265 in (6.73 mm) |
| Overall cable diameter (nominal) | 0.265 in (6.73 mm) |
| Ripcord | No |
| Max. Conductor DCR | 57 Ohm/km (17 Ohm/1000ft) |
| Max. capacitance unbalance | 150 pF/ft |
| Max. delay | 552 ns/100m |
| Nom. velocity of prop. | 70% |
| 1 MHz performance | 2.1 dB/100m max. insertion loss (attenuation); 65.3 min. NEXT [dB]; 62.3 min. PSNEXT [dB]; 63.2 min. ACR [dB]; 63.8 min. ACRF (ELFEXT) [dB]; 60.8 min. PSACRF (PSELFEXT) [dB]; 23 min. RL (Return Loss) [dB]; 100 ± 20.2 max./min. input impedance (unFitted) [Ohm]; 105 ±10 max./min. fitted impedance [Ohm] |
| 4 MHz performance | 4.0 dB/100m max. insertion loss (attenuation); 56.3 min. NEXT [dB]; 53.3 min. PSNEXT [dB]; 56.3 min. ACR [dB]; 51.7 min. ACRF (ELFEXT) [dB]; 48.7 min. PSACRF (PSELFEXT) [dB]; 23 min. RL (Return Loss) [dB]; 100 ± 14.2 max./min. input impedance (unFitted) [Ohm]; 100 ±10 max./min. fitted impedance [Ohm] |
| 8 MHz performance | 5.6 dB/100m max. insertion loss (attenuation); 51.8 min. NEXT [dB]; 48.8 min. PSNEXT [dB]; 46.2 min. ACR [dB]; 45.7 min. ACRF (ELFEXT) [dB]; 42.7 min. PSACRF (PSELFEXT) [dB]; 23 min. RL (Return Loss) [dB]; 100 ± 11.3 max./min. input impedance (unFitted) [Ohm]; 100 ±10 max./min. fitted impedance [Ohm] |
| 10 MHz performance | 6.3 dB/100m max. insertion loss (attenuation); 50.3 min. NEXT [dB]; 47.3 min. PSNEXT [dB]; 43.9 min. ACR [dB]; 43.8 min. ACRF (ELFEXT) [dB]; 40.8 min. PSACRF (PSELFEXT) [dB]; 25 min. RL (Return Loss) [dB]; 100 ± 11.3 max./min. input impedance (unFitted) [Ohm]; 100 ±10 max./min. fitted impedance [Ohm] |
| 16 MHz performance | 8.0 dB/100m max. insertion loss (attenuation); 47.3 min. NEXT [dB]; 44.3 min. PSNEXT [dB]; 35.2 min. ACR [dB]; 39.7 min. ACRF (ELFEXT) [dB]; 36.7 min. PSACRF (PSELFEXT) [dB]; 25 min. RL (Return Loss) [dB]; 100 ± 11.3 max./min. input impedance (unFitted) [Ohm]; 100 ±10 max./min. fitted impedance [Ohm] |
| 20 MHz performance | 9.0 dB/100m max. insertion loss (attenuation); 45.8 min. NEXT [dB]; 42.8 min. PSNEXT [dB]; 36.5 min. ACR [dB]; 37.7 min. ACRF (ELFEXT) [dB]; 34.7 min. PSACRF (PSELFEXT) [dB]; 25 min. RL (Return Loss) [dB]; 100 ± 11.3 max./min. input impedance (unFitted) [Ohm]; 100 ±10 max./min. fitted impedance [Ohm] |
| 25 MHz performance | 10.1 dB/100m max. insertion loss (attenuation); 44.3 min. NEXT [dB]; 41.3 min. PSNEXT [dB]; 34.2 min. ACR [dB]; 35.8 min. ACRF (ELFEXT) [dB]; 32.8 min. PSACRF (PSELFEXT) [dB]; 25.5 min. RL (Return Loss) [dB]; 100 ± 11.3 max./min. input impedance (unFitted) [Ohm]; 100 ±10 max./min. fitted impedance [Ohm] |
| 31.25 MHz performance | 11.4 dB/100m max. insertion loss (attenuation); 42.9 min. NEXT [dB]; 39.9 min. PSNEXT [dB]; 31.3 min. ACR [dB]; 33.9 min. ACRF (ELFEXT) [dB]; 30.9 min. PSACRF (PSELFEXT) [dB]; 23.6 min. RL (Return Loss) [dB]; 100 ± 13.2 max./min. input impedance (unFitted) [Ohm]; 100 ±10 max./min. fitted impedance [Ohm] |
| 62.5 MHz performance | 16.5 dB/100m max. insertion loss (attenuation); 38.4 min. NEXT [dB]; 35.4 min. PSNEXT [dB]; 21.6 min. ACR [dB]; 27.8 min. ACRF (ELFEXT) [dB]; 24.8 min. PSACRF (PSELFEXT) [dB]; 21.5 min. RL (Return Loss) [dB]; 100 ± 16.9 max./min. input impedance (unFitted) [Ohm]; 100 ±10 max./min. fitted impedance [Ohm] |
| 100 MHz performance | 21.3 dB/100m max. insertion loss (attenuation); 35.3 min. NEXT [dB]; 32.3 min. PSNEXT [dB]; 17.1 min. ACR [dB]; 23.8 min. ACRF (ELFEXT) [dB]; 20.8 min. PSACRF (PSELFEXT) [dB]; 20.1 min. RL (Return Loss) [dB]; 100 ± 20.0 max./min. input impedance (unFitted) [Ohm]; 100 ±10 max./min. fitted impedance [Ohm] |
| Operating temperature | -40°C To +80°C |
| Installation temperature | -25°C To +60°C |
| Storage temperature | -40°C To +80°C |
| Bend radius (stationary min.) | 2.560 in (65.02 mm) |
| Max Pull Tension | 55 lbs (25 kg) |
| Bulk cable weight | 41 lbs/1000ft |
| Environmental suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance |
| UL Voltage Rating | 300 V (CMG, CMX-Outdoor), 600 V (AWM 21047) |
| UL temperature | 60°C |
| Priced Per | FT |
