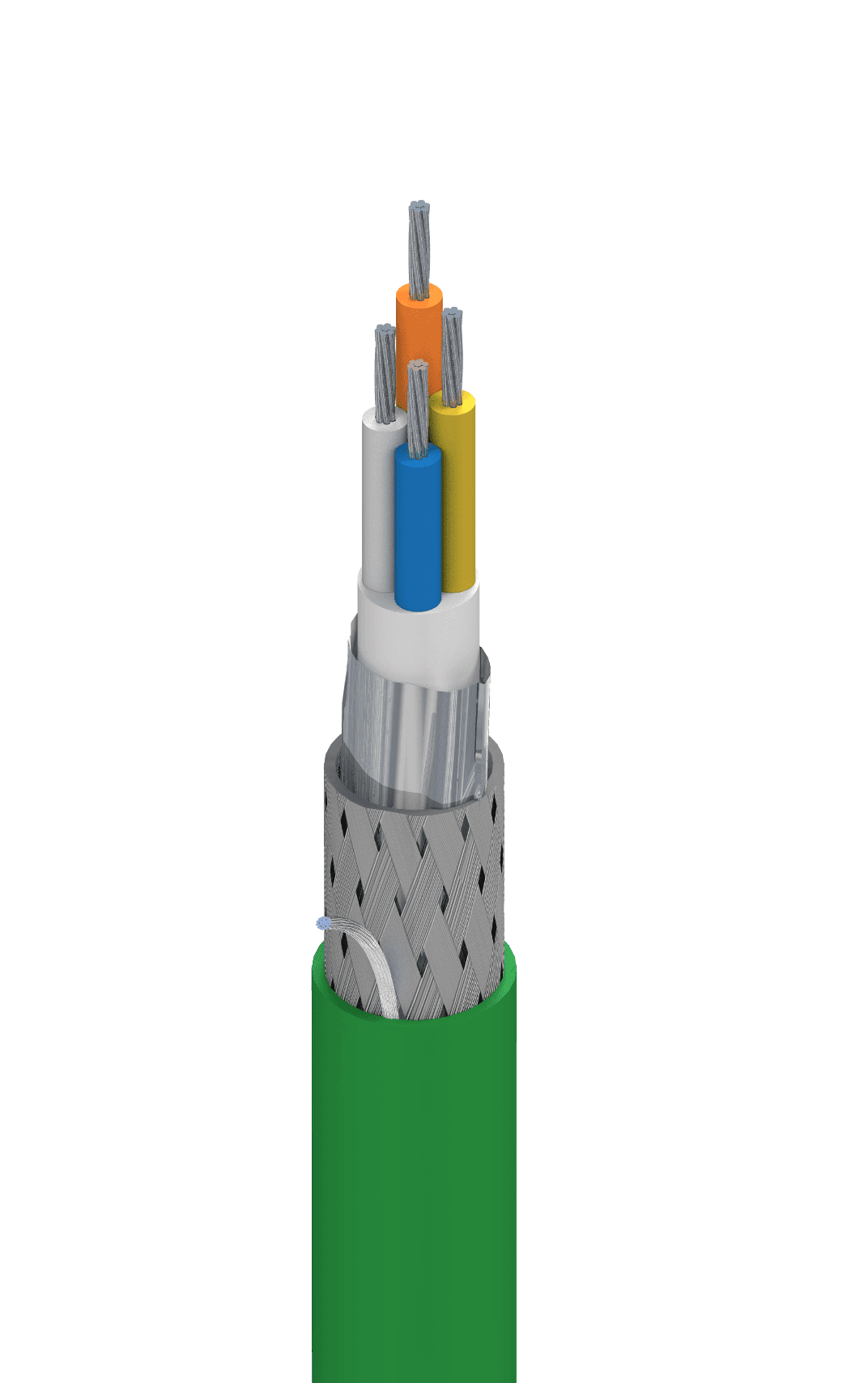

Belden 7961A 1SW, PROFINET CAT5E 22 AWG 4C SF UT FRPE Green
SKU:Belden 7961A 1SW
● In stock
× 250 ft = Total: 250 ft
Description
Belden 7961A 1SW is an Industrial Ethernet Cat 5e PROFINET cable with 1 Quad (2 pair) 22 AWG (7x30) TC - Tinned Copper conductors and PO - Polyolefin insulation. It features an Overall Belfoil® shield with a Bi-Laminate (Alum+Poly), 100% tape and a Tinned Copper (TC), 85% braid, and is finished with a PVC - Polyvinyl Chloride outer jacket. The cable is rated CMG and CMX-Outdoor and is listed for indoor/outdoor use, including Sunlight Resistance and Oil Resistance. High frequency performance is specified through 100 MHz, with UL voltage rating of 300 V (CMG, CMX-Outdoor), 600 V (AWM 21047).
Belden 7961A 1SW Key Features
- Industrial Ethernet Cat 5e / Category 5e construction for PROFINET networks.
- 1 Quad (2 pair) 22 AWG (7x30) TC - Tinned Copper conductors with PO - Polyolefin insulation.
- Overall Belfoil® shield with Bi-Laminate (Alum+Poly), 100% tape and a Tinned Copper (TC), 85% braid for shielding.
- PVC - Polyvinyl Chloride outer jacket with CMG and CMX-Outdoor ratings.
- Environmental suitability listed as indoor/outdoor, indoor, outdoor, Sunlight Resistance, Oil Resistance.
- High frequency performance specified through 100 MHz.
Belden 7961A 1SW Applications
- Enables PROFINET connectivity where consistent data communication is required.
- Works for outdoor installations where the cable is expected to be exposed to the environment.
- Handles harsh environment deployments in industrial settings.
- Connects industrial devices in IIoT networks that exchange data.
- Integrates into factory or process automation systems for networked communication between equipment.
- Supports IP cameras and devices that rely on Ethernet data communication.
- Serves general data communication links within industrial networks.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Core construction | 1 Quad (2 Pair) |
| Conductor size | 22 AWG |
| Conductor stranding | 7x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PO - Polyolefin |
| Nom. insulation diameter | 1.55 mm (0.0610 in) |
| Color Code | White, Blue, Yellow, Orange |
| Inner jacket material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
| Inner jacket nom. diameter | 0.164 in (4.17 mm) |
| Outer shield (tape) | Bi-Laminate (Alum+Poly), 100% |
| Outer shield (braid) | Tinned Copper (TC), 85% |
| Overall shield | Overall Belfoil®+Tinned Copper Braid(85%) Shield |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Ripcord | No |
| Outer jacket nom. diameter | 0.272 in (6.91 mm) |
| Overall cable diameter (nominal) | 0.272 in (6.91 mm) |
| Bulk cable weight | 43 lbs/1000ft (64 kg/km) |
| Max. Conductor DCR | 57 Ohm/km (17 Ohm/1000ft) |
| Max. capacitance unbalance | 150 pF/ft |
| Max. delay | 552 ns/100m |
| Nom. velocity of prop. | 70% |
| UL Voltage Rating | 300 V (CMG, CMX-Outdoor), 600 V (AWM 21047) |
| Stationary min. bend radius | 1.023 in (25.98 mm) |
| Max Pull Tension | 55 lbs (25 kg) |
| UL temperature | 60°C |
| Operating temperature | -40°C To +80°C |
| Installation temperature | -20°C To +60°C |
| Storage temperature | -40°C To +80°C |
| Flammability / reaction to fire | UL 1685 (UL Loading), FT4, IEEE 1202 Vertical Tray Flame Test, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMG, CMX-Outdoor, ITC, PLTC |
| AWM compliance | AWM 21047 |
| CEC / C(UL) compliance | CMX-Outdoor;CMG |
| NEMA Compliance | NEMA WC-63.1 |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 5e |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-6 |
| European directive compliance | EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
