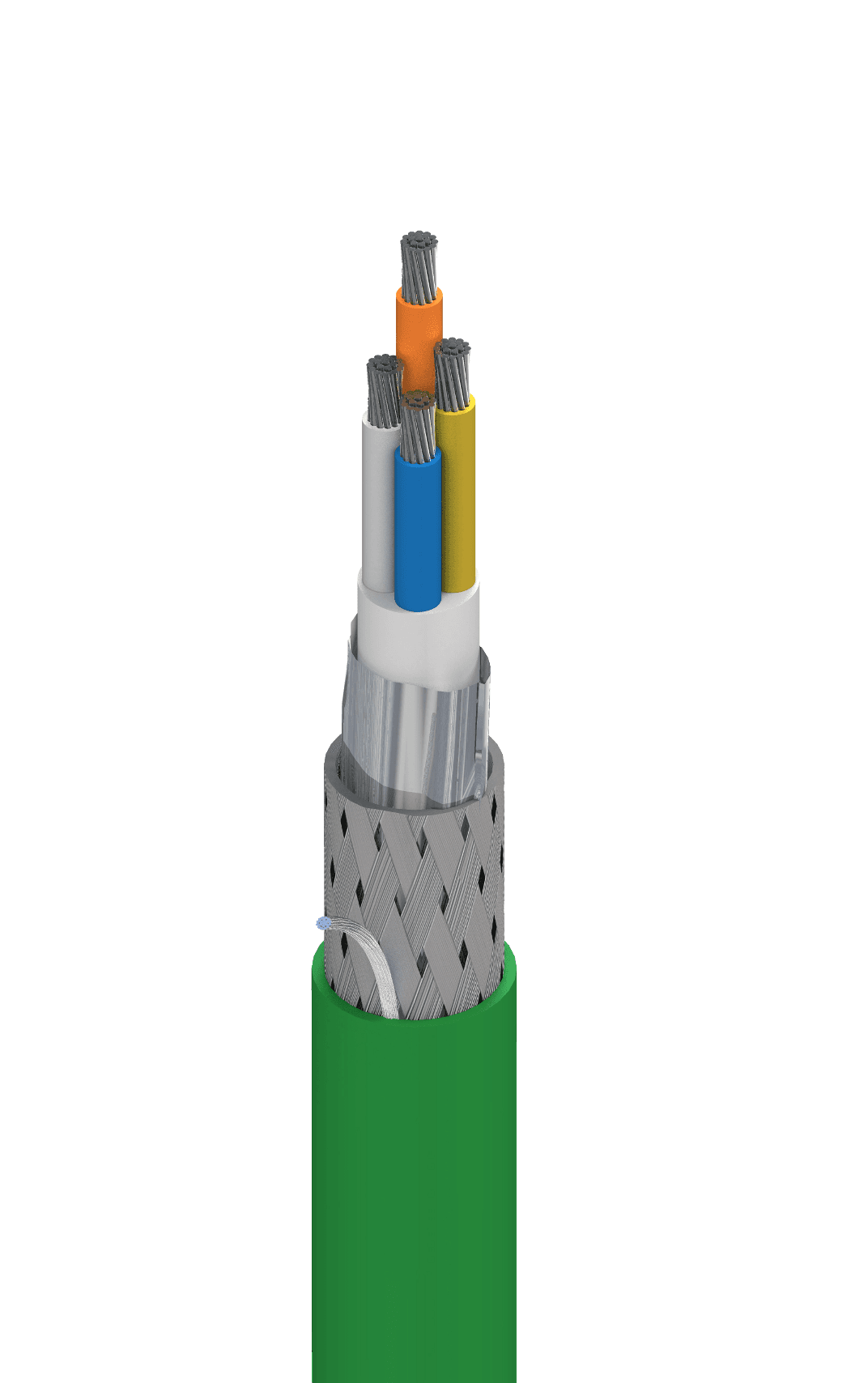

Belden 7962A 1SW, TNC 22 AWG 4C PROFINET CAT5E FRPE TPE GRN Jacket
SKU:Belden 7962A 1SW
● In stock
× 50 ft = Total: 50 ft
Description
Belden 7962A 1SW is an Industrial Ethernet Category 5e PROFINET Cable designed for indoor/outdoor use in outdoor and harsh-environment networking for factory or process automation. It features a quad (2 pair) 22 AWG (19x34) tinned copper conductor construction with PO - Polyolefin insulation and an overall Beldfoil® plus tinned copper braid (85%) shield. A TPE - Thermoplastic Elastomer outer jacket supports demanding installations, including IIoT deployments and IP cameras/devices. The cable is rated CM and CMX-Outdoor and is listed for Sunlight Resistance and Oil Resistance.
Belden 7962A 1SW Key Features
- Industrial Ethernet Category 5e PROFINET Cable for data communication in factory or process automation networks.
- Quad (2 pair) 22 AWG (19x34) tinned copper conductor design with 4 conductor construction.
- Overall shielded design using Beldfoil® plus tinned copper braid (85%) shield for protected signal transmission.
- TPE - Thermoplastic Elastomer outer jacket with green jacket color.
- CM and CMX-Outdoor ratings for indoor/outdoor use, including Sunlight Resistance and Oil Resistance.
Belden 7962A 1SW Applications
- Enables PROFINET networking where Industrial Ethernet connectivity is needed in factory or process automation environments.
- Handles outdoor and harsh-environment installations that require indoor/outdoor suitability.
- Fits IIoT deployments that rely on consistent data communication in industrial settings.
- Connects IP cameras and devices in networked systems.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Type | Data |
| Insulation Material | PO - Polyolefin |
| Insulation color code | White, Blue, Yellow, Orange |
| Inner jacket | PE - Polyethylene, 0.169 in (4.29 mm) |
| Outer shield (tape) | Bi-Laminate (Alum+Poly), 100% |
| Outer shield (braid) | Tinned Copper (TC), 85% |
| Overall cable diameter (nominal) | 0.276 in (7.01 mm) |
| Ripcord | No |
| Bulk cable weight | 45 lbs/1000ft (67 kg/km) |
| Max. Conductor DCR | 57 Ohm/km (17 Ohm/1000ft) |
| Max. capacitance unbalance | 150 pF/ft |
| Max. delay | 552 ns/100m |
| Nom. velocity of prop. | 70% |
| UL Voltage Rating | 300 V (CM, CMX-Outdoor), 600 V (AWM 20626) |
| UL temperature | 75°C |
| Operating temperature | -40°C To +80°C |
| Installation temperature | -20°C To +60°C |
| Storage temperature | -40°C To +80°C |
| Stationary min. bend radius | 2.560 in (65.02 mm) |
| Max Pull Tension | 55 lbs (25 kg) |
| NEC / UL compliance | Article 800, CM, CMX-Outdoor, ITC, PLTC |
| AWM compliance | AWM 20626 |
| CEC / C(UL) compliance | CMX-Outdoor |
| NEMA Compliance | NEMA WC-63.1 |
| Flammability / reaction to fire | UL 1685 (UL Loading), FT4, IEEE 1202 Vertical Tray Flame Test |
| TIA/EIA compliance | ANSI/TIA-568.2-D Category 5e |
| ISO/IEC compliance | ISO/IEC 11801-1, IEC 61156-6 |
| European directive compliance | EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
