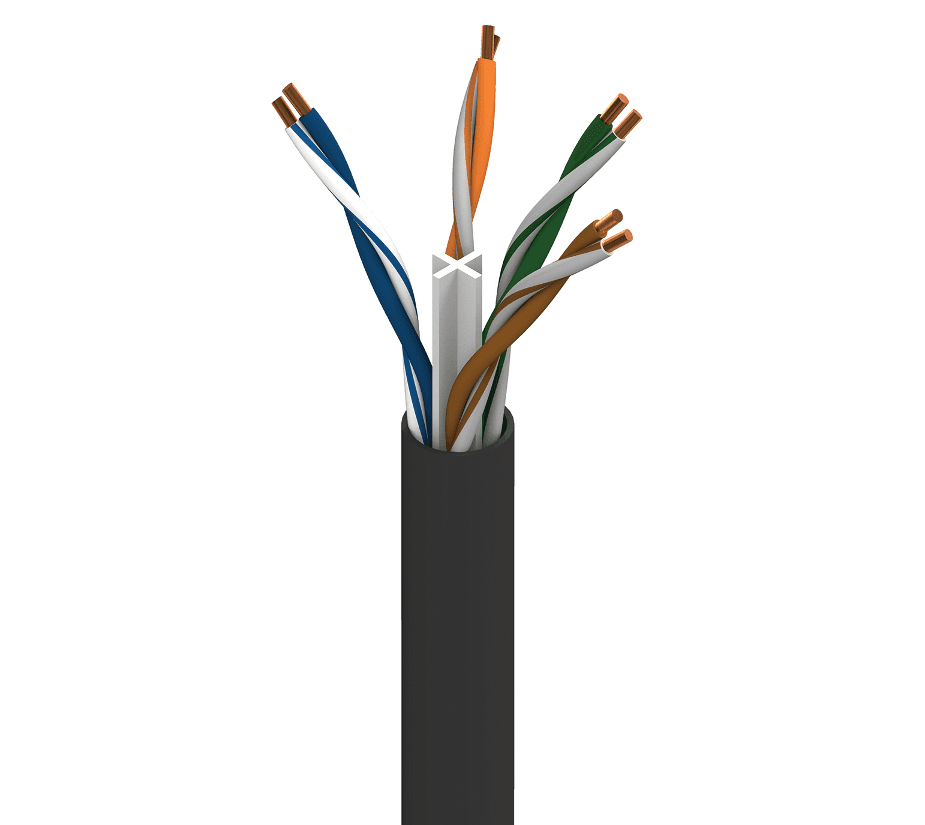

Belden 7969A 010, Cat 6 UTP 4 Bonded Pr 22 AWG Solid, Black Jacket

Belden 7969A 010 is an Industrial Ethernet Category 6 U/UTP data cable with 4 bonded pairs of 22 AWG solid bare copper conductors and a black PVC outer jacket. It uses PO - Polyolefin insulation and a center member (Patented X-Spline®) to help maintain consistent performance. The jacket is listed for riser and outdoor use with sunlight resistance, and the cable is specified through 250 MHz with defined delay, impedance, and crosstalk metrics for Cat 6 networks.

Belden 7969A 010 Key Features

• Category 6, U/UTP - unshielded twisted pair data cable construction.
• 4 bonded pairs with 22 AWG solid bare copper conductors.
• PO - Polyolefin insulation with the specified pair color code.
• Black PVC - Polyvinyl Chloride outer jacket suitable for riser and outdoor use with sunlight resistance.
• Center member (Patented X-Spline®) and ripcord for cable construction and handling.
• Electrical performance specified through 250 MHz, including insertion loss, NEXT/PSNEXT, ACR/PSACR, ACRF/PSACRF, return loss, and impedance metrics.

Belden 7969A 010 Applications

• Use it for power-limited tray installations where PLTC cabling is required.
• Deploy it in harsh environments where industrial-grade data communication is needed.
• In IIoT networks, it supports connected devices and industrial data links.
• For factory or process automation systems, it helps support consistent Ethernet communication.
• In networked video and data communication deployments, it is suitable for IP cameras and devices.

Belden 7969A 010 Cable Print

DATATUFF(R) CAT 6 4 PAIR - 22 AWG (.32 SQ MM) (UL) PLTC 75C OR CMR/CMX-OUTDOOR C(UL) CMR SUN RES OIL RES US PAT. BELDEN.COM/P ACCURACY OF SEQUENTIAL NUMBER IS +/- 1%
