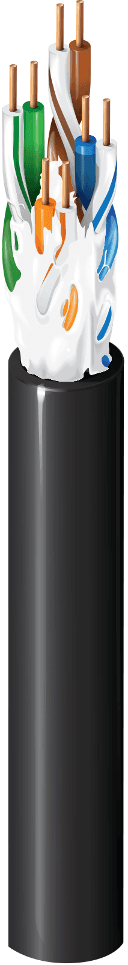

Belden 7997A 010, Multi Conductor Category 5e 4 pair UTP OSP Black
SKU:Belden 7997A 010
$600.00
● In stock
× 1,000 ft = Total: 1,000 ft
Description
Belden 7997A 010 is a Category 5e premise horizontal cable (200MHz) for OSP-Outdoor installations. It features 4 pair 24 AWG solid BC - Bare Copper conductors in a U/UTP construction and includes gel-filled waterblocking for moisture protection. The cable has a PE - Polyethylene jacket in black and is rated 300 V, supporting outdoor use including sunlight resistance and aerial runs when supported by messenger wire.
Belden 7997A 010 Key Features
- This Category 5e premise horizontal cable (200MHz) is designed for OSP-Outdoor installations.
- It uses 4 pair 24 AWG solid BC - Bare Copper conductors in a U/UTP construction.
- Gel-filled waterblocking helps provide moisture protection.
- A PE - Polyethylene jacket in black supports outdoor use, including sunlight resistance and aerial runs when supported by messenger wire.
- Sequential marking is printed at two foot intervals.
High Frequency Performance
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Data category | Category 5e |
| Cable type | Category 5e Premise Horizontal Cable (200MHz) |
| OSP rated | OSP rated |
| Insulation Material | PO - Polyolefin |
| Insulation color code | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Ripcord | Yes |
| Nom. diameter | 0.226 in (5.74 mm) |
| Overall cable diameter (nominal) | 0.226 in (5.74 mm) |
| Voltage Rating | 300 V |
| Max. Conductor DCR | 93.8 Ohm/km (28.6 Ohm/1000ft) |
| Max. capacitance unbalance | 160 pF/100m |
| Delay (100 MHz) | Max. delay skew 45 ns/100m; Nom. velocity of prop. 65% |
| High frequency performance | Frequency [MHz] 1: Max. insertion loss (attenuation) 2.0 dB/100m; Min. NEXT [dB] 65.3; Min. PSNEXT [dB] 62.3; Min. ACR [dB] 63.3; Min. PSACR [dB] 60.3; Min. ACRF (ELFEXT) [dB] 63.8; Min. PSACRF (PSELFEXT) [dB] 60.8; Min. RL (Return Loss) [dB] 20.0; Max./Min. input impedance (unFitted) [Ohm] 100 ± 15; Max./Min. fitted impedance [Ohm] 100 ± 15; Frequency [MHz] 4: Max. insertion loss (attenuation) 4.1 dB/100m; Min. NEXT [dB] 56.3; Min. PSNEXT [dB] 53.3; Min. ACR [dB] 52.2; Min. PSACR [dB] 49.2; Min. ACRF (ELFEXT) [dB] 51.8; Min. PSACRF (PSELFEXT) [dB] 48.8; Min. RL (Return Loss) [dB] 23.0; Max./Min. input impedance (unFitted) [Ohm] 100 ± 15; Max./Min. fitted impedance [Ohm] 100 ± 15; Frequency [MHz] 8: Max. insertion loss (attenuation) 5.8 dB/100m; Min. NEXT [dB] 51.8; Min. PSNEXT [dB] 48.8; Min. ACR [dB] 46.0; Min. PSACR [dB] 43.0; Min. ACRF (ELFEXT) [dB] 45.7; Min. PSACRF (PSELFEXT) [dB] 42.7; Min. RL (Return Loss) [dB] 24.5; Max./Min. input impedance (unFitted) [Ohm] 100 ± 15; Max./Min. fitted impedance [Ohm] 100 ± 15; Frequency [MHz] 10: Max. insertion loss (attenuation) 6.5 dB/100m; Min. NEXT [dB] 50.3; Min. PSNEXT [dB] 47.3; Min. ACR [dB] 43.8; Min. PSACR [dB] 40.8; Min. ACRF (ELFEXT) [dB] 43.8; Min. PSACRF (PSELFEXT) [dB] 40.8; Min. RL (Return Loss) [dB] 25.0; Max./Min. input impedance (unFitted) [Ohm] 100 ± 15; Max./Min. fitted impedance [Ohm] 100 ± 15; Frequency [MHz] 16: Max. insertion loss (attenuation) 8.2 dB/100m; Min. NEXT [dB] 47.2; Min. PSNEXT [dB] 44.2; Min. ACR [dB] 39.0; Min. PSACR [dB] 36.0; Min. ACRF (ELFEXT) [dB] 39.7; Min. PSACRF (PSELFEXT) [dB] 36.7; Min. RL (Return Loss) [dB] 25.0; Max./Min. input impedance (unFitted) [Ohm] 100 ± 15; Max./Min. fitted impedance [Ohm] 100 ± 15; Frequency [MHz] 20: Max. insertion loss (attenuation) 9.3 dB/100m; Min. NEXT [dB] 45.8; Min. PSNEXT [dB] 42.8; Min. ACR [dB] 36.5; Min. PSACR [dB] 33.5; Min. ACRF (ELFEXT) [dB] 37.8; Min. PSACRF (PSELFEXT) [dB] 34.8; Min. RL (Return Loss) [dB] 25.0; Max./Min. input impedance (unFitted) [Ohm] 100 ± 15; Max./Min. fitted impedance [Ohm] 100 ± 15; Frequency [MHz] 25: Max. insertion loss (attenuation) 10.4 dB/100m; Min. NEXT [dB] 44.3; Min. PSNEXT [dB] 41.3; Min. ACR [dB] 33.9; Min. PSACR [dB] 30.9; Min. ACRF (ELFEXT) [dB] 35.8; Min. PSACRF (PSELFEXT) [dB] 32.8; Min. RL (Return Loss) [dB] 24.3; Max./Min. input impedance (unFitted) [Ohm] 100 ± 15; Max./Min. fitted impedance [Ohm] 100 ± 15; Frequency [MHz] 31.25: Max. insertion loss (attenuation) 11.7 dB/100m; Min. NEXT [dB] 42.9; Min. PSNEXT [dB] 39.9; Min. ACR [dB] 31.2; Min. PSACR [dB] 28.2; Min. ACRF (ELFEXT) [dB] 33.9; Min. PSACRF (PSELFEXT) [dB] 30.9; Min. RL (Return Loss) [dB] 23.6; Max./Min. input impedance (unFitted) [Ohm] 100 ± 15; Max./Min. fitted impedance [Ohm] 100 ± 15; Frequency [MHz] 62.5: Max. insertion loss (attenuation) 17.0 dB/100m; Min. NEXT [dB] 38.4; Min. PSNEXT [dB] 35.4; Min. ACR [dB] 21.4; Min. PSACR [dB] 18.4; Min. ACRF (ELFEXT) [dB] 27.9; Min. PSACRF (PSELFEXT) [dB] 24.9; Min. RL (Return Loss) [dB] 21.5; Max./Min. input impedance (unFitted) [Ohm] 100 ± 15; Max./Min. fitted impedance [Ohm] 100 ± 15; Frequency [MHz] 100: Max. insertion loss (attenuation) 22.0 dB/100m; Min. NEXT [dB] 35.3; Min. PSNEXT [dB] 32.3; Min. ACR [dB] 13.3; Min. PSACR [dB] 10.3; Min. ACRF (ELFEXT) [dB] 23.8; Min. PSACRF (PSELFEXT) [dB] 20.8; Min. RL (Return Loss) [dB] 20.1; Max./Min. input impedance (unFitted) [Ohm |
| Priced Per | FT |
