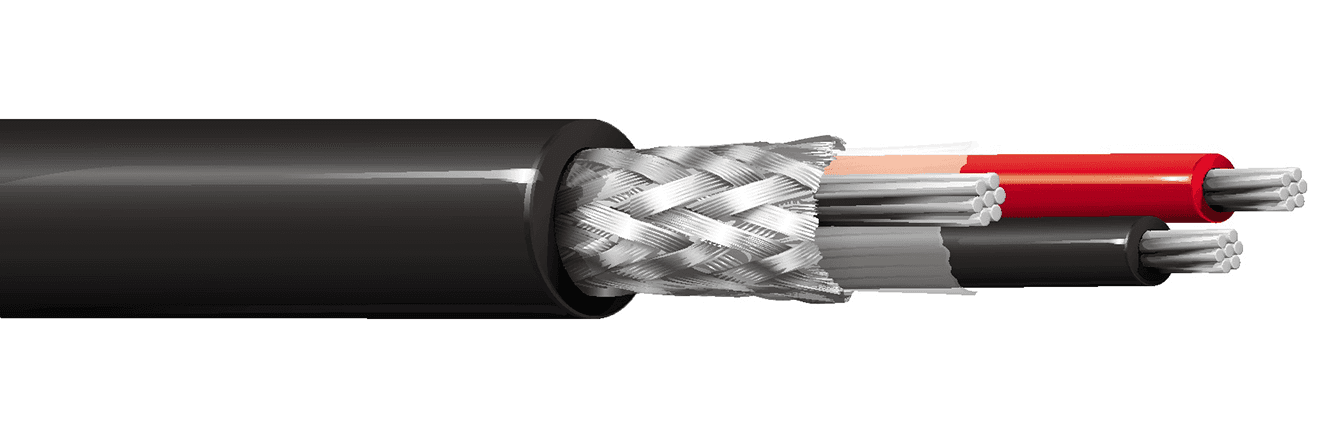

Belden 8208 060, Multi Pair Cable 1 Pair 18 AWG EPDM PVC Jacket, Chrome Jacket
SKU:Belden 8208
$720.00
● In stock
Description
Belden 8208 060 is a 1 pair, 18 AWG multi pair cable with a PVC outer jacket in Chrome and a 300 V rating. It is built with 2 stranded (16x30) TC - Tinned Copper conductors and EPDM - Ethylene Propylene Diene Monomer insulation. An overall Tinned Copper (TC) braid shield with 73% coverage helps reduce noise in sensitive signal and control circuits.
Belden 8208 060 Key Features
- 1 pair construction with 2 conductors for low voltage signal and control wiring.
- 18 AWG conductors with 16x30 stranding for flexibility.
- TC - Tinned Copper conductors with EPDM - Ethylene Propylene Diene Monomer insulation.
- Tinned Copper (TC) braid shield with 73% coverage to help reduce noise in sensitive circuits.
- PVC - Polyvinyl Chloride outer jacket in Chrome for mechanical protection.
- 300 V voltage rating for panel and equipment wiring needs.
Belden 8208 060 Applications
- Supports low voltage analog signals (4-20ma, 0-10v, ...) where stable signal transmission is needed.
- Handles low voltage digital control (24v, …) for control and automation signal runs.
- Provides line level audio connections where noise reduction is important.
- Enables computer communication links in systems that require shielded signal wiring.
- Commonly used for panel wiring in industrial and commercial equipment.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor Material | TC - Tinned Copper |
| Conductor Type | Stranded conductor |
| Color Code | Red, White |
| Shield Type | Braid |
| Separator | Polyester Tape |
| Insulation thickness (nominal) | 0.022 in (0.56 mm) |
| Insulation diameter (nominal) | 0.091 in (2.3 mm) |
| Outer jacket thickness (nominal) | 0.025 in (0.64 mm) |
| Overall cable diameter (nominal) | 0.257 in (6.53 mm) |
| Bulk cable weight | 40 lbs/1000ft |
| Nom. conductor DCR | 6.5 Ohm/1000ft |
| Nom. outer shield DCR | 2.09 Ohm/1000ft (6.86 Ohm/km) |
| Nom. capacitance cond-to-cond | 46 pF/ft (150 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 77 pF/ft (250 pF/m) |
| Nom. characteristic impedence | 44 Ohm |
| Nom. inductance | 0.2 µH/ft (0.66 µH/m) |
| Max. current | 5.2 Amps per conductor at 25ºC |
| UL temperature | 75°C |
| Operating temperature | -20°C to +80°C |
| Bend radius (stationary min.) | 2.57 in (65.3 mm) |
| Bend radius (installation min.) | 2.57 in (65.3 mm) |
| Max Pull Tension | 41.6 lbs (18.9 kg) |
| Sustainability | CA Prop 65 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 8208 060100 UPC 612825196051; 8208 060250; 8208 060500 UPC 612825196075; 8208 0601000 UPC 612825196068; 8208 0605000 UPC 612825196082 |
| Priced Per | FT |
