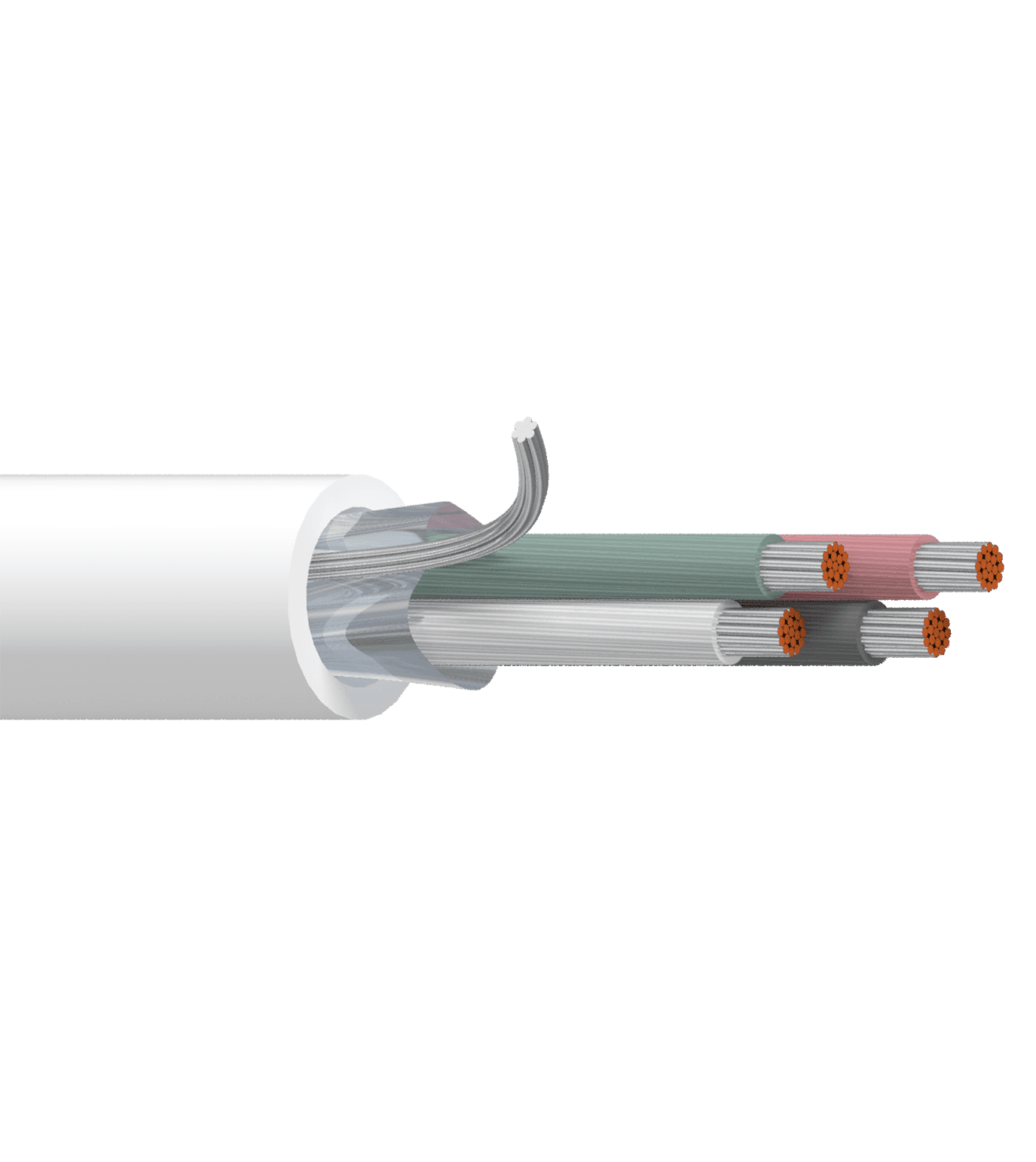

Belden 82418 877, Multi Conductor Cable 4C 18 AWG FEP Insulation, Natural Jacket
SKU:Belden 82418 877
● In stock
Description
Belden 82418 877 is a 4-conductor 18 AWG electronic cable for indoor plenum installations. It uses stranded 19x30 TC - Tinned Copper conductors with FEP - Fluorinated Ethylene Propylene insulation and an overall tape shield with 100% coverage plus a 20 AWG (19x32) TC drainwire. The PVC - Polyvinyl Chloride outer jacket in Natural color supports clean routing in panels and building pathways, and the cable is rated UL Voltage Rating: 300 V (CMP).
Belden 82418 877 Key Features
- It has 4 conductors with 18 AWG conductor size for low-voltage signal and control wiring.
- It uses stranded 19x30 TC - Tinned Copper conductors for flexible installation and consistent connectivity.
- It features FEP - Fluorinated Ethylene Propylene insulation for each conductor.
- It includes an overall tape shield with 100% coverage and a 20 AWG (19x32) TC drainwire for noise reduction.
- It has a PVC - Polyvinyl Chloride outer jacket with Natural color for indoor plenum routing.
- It is rated UL Voltage Rating: 300 V (CMP).
Belden 82418 877 Applications
- It is intended for indoor plenum applications where low-voltage signal and control performance is required.
- It is commonly used for low voltage analog signals (4-20ma, 0-10v, ...).
- It supports low voltage control (24v, …) circuits in building and equipment wiring.
- It can be used for line level audio signal runs.
- It is suitable for voice communications wiring.
- It is commonly used for panel wiring where organized routing is needed.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 4 |
| Conductor size | 18 AWG |
| Stranding | 19x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | FEP - Fluorinated Ethylene Propylene |
| Nom. thickness | 0.007 in (0.18 mm) |
| Nom. insulation diameter | 0.057 in (1.4 mm) |
| Color Code | Black, White, Red, Green |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drainwire type | 20 AWG (19x32) TC |
| Shield construction | Overall Shield & drain |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Jacket Color | Natural |
| Nom. jacket thickness | 0.015 in (0.38 mm) |
| Nom. diameter | 0.172 in (4.37 mm) |
| Overall cable diameter (nominal) | 0.172 in (4.37 mm) |
| Bulk cable weight | 33 lbs/1000ft |
| Nom. conductor DCR | 6.92 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 30 pF/ft (98 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 63 pF/ft (210 pF/m) |
| Nom. inductance | 0.15 µH/ft (0.49 µH/m) |
| Max. current | 4.3 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 7.9 Ohm/1000ft (26 Ohm/km) |
| UL temperature | 60°C |
| Operating temperature | -20°C to +75°C |
| Stationary min. bend radius | 1.72 in (43.7 mm) |
| Installation min. bend radius | 1.72 in (43.7 mm) |
| Max Pull Tension | 114 lbs (51.7 kg) |
| Environmental suitability | Indoor - Plenum, Indoor |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum) |
| NEC / UL compliance | Article 800, CMP |
| CPR compliance | CPR Euroclass: Eca |
| Sustainability | CA Prop 65 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum number | 9418 |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 82418 877100; 82418 877250; 82418 877500; 82418 8771000 UPC 612825197058; 82418 8775000 UPC 612825197065 |
| Priced Per | FT |
