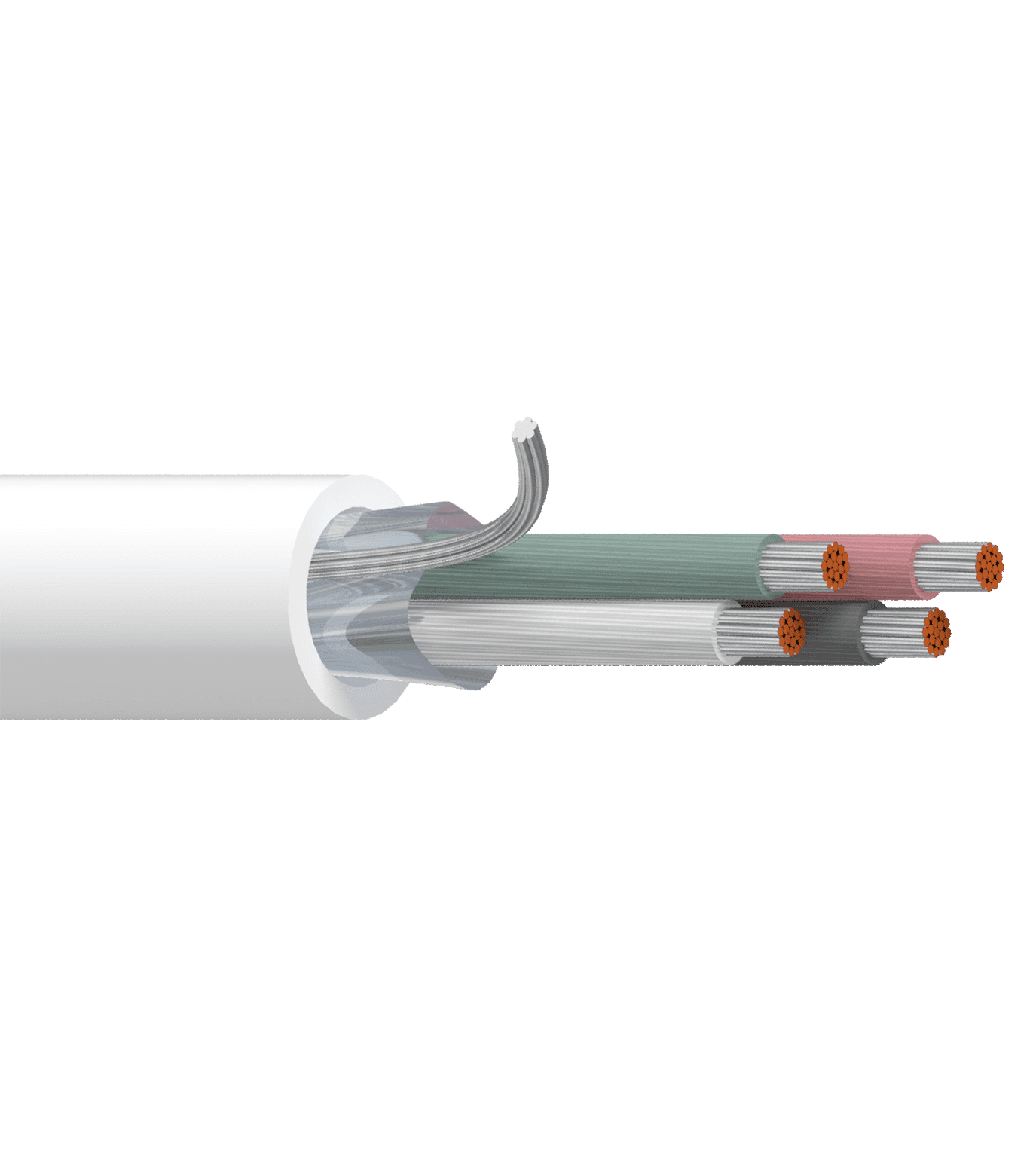

Belden 82418 877U, Multi Conductor Cable 4C 18 AWG FEP Flamarrest Jacket, Natural Jacket
SKU:Belden 82418 877U1000
● In stock
Description
Belden 82418 877U is a 4 conductor 18 AWG electronic cable for indoor plenum installations. It uses 18 AWG stranded (19x30) TC - tinned copper conductors with FEP - Fluorinated Ethylene Propylene insulation and a tape shield with 100% coverage. A PVC - Polyvinyl Chloride outer jacket in Natural supports UL Voltage Rating: 300 V (CMP) and NEC / UL compliance: Article 800, CMP. The design includes a 20 AWG (19x32) TC drainwire for shield termination.
Belden 82418 877U Key Features
- 4 conductors with 18 AWG stranded (19x30) TC - tinned copper for electronic signal and control wiring.
- FEP - Fluorinated Ethylene Propylene insulation with color code: Black, White, Red, Green.
- Tape shield with Bi-Laminate (Alum+Poly) material and 100% coverage, plus drainwire type: 20 AWG (19x32) TC.
- PVC - Polyvinyl Chloride outer jacket with jacket color: Natural.
- UL Voltage Rating: 300 V (CMP) and environmental suitability: Indoor - Plenum, Indoor.
Belden 82418 877U Applications
- Intended for Indoor - Plenum, Indoor installations where plenum-rated cabling is required.
- Use it for low voltage analog signals (4-20ma, 0-10v, ...) in signal and instrumentation runs.
- Implement it in low voltage control (24v, …) circuits for control and automation wiring.
- Choose it for line level audio connections where shielded signal cabling is needed.
- Apply it to voice communications cabling in indoor building pathways.
- It is commonly used for panel wiring to route signals and controls within enclosures.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Nom. insulation thickness | 0.007 in (0.18 mm) |
| Nom. insulation diameter | 0.057 in (1.4 mm) |
| Nom. jacket thickness | 0.015 in (0.38 mm) |
| Overall cable diameter (nominal) | 0.172 in (4.37 mm) |
| Bulk cable weight | 33 lbs/1000ft |
| Non-Plenum number | 9418 |
| Nom. conductor DCR | 6.92 Ohm/1000ft |
| Nom. outer shield DCR | 7.9 Ohm/1000ft (26 Ohm/km) |
| Nom. capacitance cond-to-cond | 30 pF/ft (98 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 63 pF/ft (210 pF/m) |
| Nom. inductance | 0.15 µH/ft (0.49 µH/m) |
| Max. current | 4.3 Amps per conductor at 25ºC |
| UL temperature | 60°C |
| Operating temperature | -20°C to +75°C |
| Bend radius (stationary min.) | 1.72 in (43.7 mm) |
| Bend radius (installation min.) | 1.72 in (43.7 mm) |
| Max Pull Tension | 114 lbs (51.7 kg) |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum) |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Sustainability | CA Prop 65 |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 82418 877U1000 UPC 612825197041 |
| Priced Per | FT |
