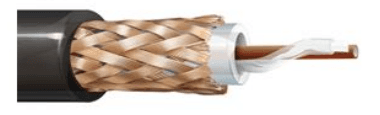

Belden 8254 010, RG 62 U JAN C 17A Coax 93 Ohm Black
SKU:Belden 8254 010
● In stock
Description
Belden 8254 010 is an RG-62/U Type coaxial cable built around a 22 AWG solid BCCS - Bare Copper Covered Steel conductor, semi-solid PE - Polyethylene insulation, and a black PVC - Polyvinyl Chloride jacket. It is designed for computer and instrumentation applications where consistent 93 Ohm performance is required. A Bare Copper (BC) braid shield with 95% coverage helps reduce interference, and the cable is rated 750 V.
Belden 8254 010 Key Features
- RG-62/U Type coaxial construction with 93 Ohm characteristic impedance.
- 22 AWG solid BCCS - Bare Copper Covered Steel conductor.
- Semi-solid PE - Polyethylene insulation with white color code.
- Bare Copper (BC) braid shield with 95% coverage.
- Black PVC - Polyvinyl Chloride jacket.
- Voltage rating: 750 V.
Belden 8254 010 Applications
- Use in computer applications that require consistent 93 Ohm coax performance.
- Rely on it for instrumentation applications where reliable signal transmission is needed.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Spec Name | Value |
| Cable type | Coaxial |
| RG type | 62 |
| Overall cable diameter (nominal) | 0.238 in (6.05 mm) |
| Conductor stranding | Solid |
| Conductor nominal diameter | 0.025 in |
| Insulation diameter (nominal) | 0.146 in (3.71 mm) |
| Insulation notes | Solid PE monofilament Spiral around Conductor. Solid PE tube over monofilament |
| Outer shield type | Braid |
| Jacket Color | Black |
| Jacket diameter (nominal) | 0.238 in (6.05 mm) |
| Nom. conductor DCR | 55.0 Ohm/1000ft |
| Nom. outer shield DCR | 2.6 Ohm/1000ft (8.5 Ohm/km) |
| Nom. capacitance (Cond-to-Shield) | 13.5 pF/ft (44.3 pF/m) |
| Nom. velocity of prop. | 84% |
| Attenuation at 1 MHz | 0.25 dB/100ft |
| Attenuation at 10 MHz | 0.85 dB/100ft |
| Attenuation at 50 MHz | 1.90 dB/100ft |
| Attenuation at 100 MHz | 2.70 dB/100ft |
| Attenuation at 200 MHz | 3.80 dB/100ft |
| Attenuation at 400 MHz | 5.30 dB/100ft |
| Attenuation at 700 MHz | 7.30 dB/100ft |
| Attenuation at 900 MHz | 8.20 dB/100ft |
| Attenuation at 1000 MHz | 8.70 dB/100ft |
| Operating temperature | -40°C to +75°C |
| Bend radius (installation min.) | 2.4 in (61 mm) |
| Max Pull Tension | 88 lbs (40 kg) |
| Bulk cable weight | 33 lbs/1000ft |
| Environmental suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, UV Resistance, Aerial - When supported by messenger Wire |
| Sustainability | CA Prop 65 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Coaxial Cable |
| Other Part Numbers | 8254 010100; 8254 010250; 8254 010500; 8254 0101000 |
| Priced Per | FT |
