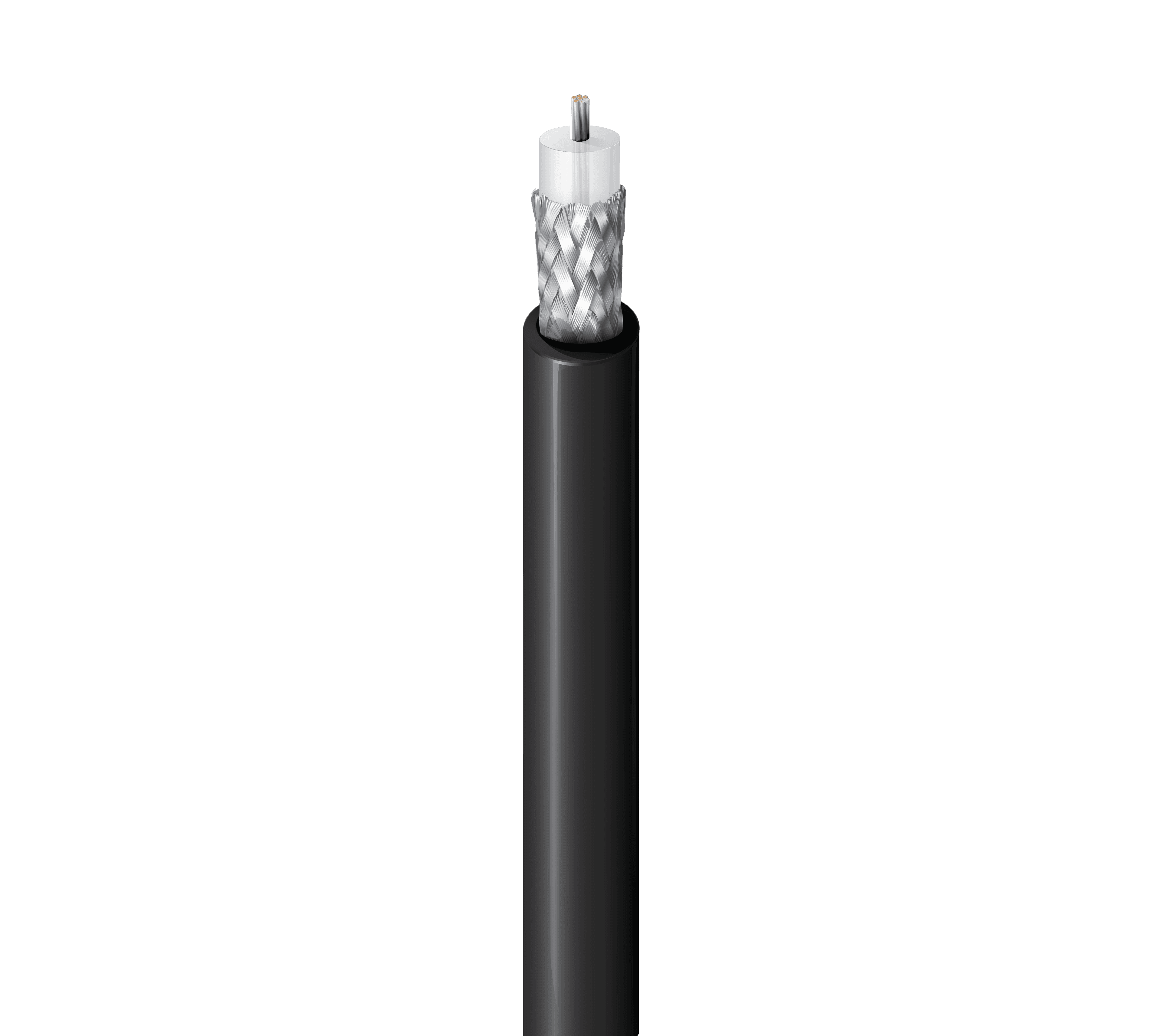

Belden 8259 010, RG 58A U Coax 50 OHMS Black

Belden 8259 010 is a 50 Ohm wireless transmission coax in the RG-58A/U form factor, built with a 20 AWG (19x33) TC - Tinned Copper stranded conductor. It uses PE-Polyethylene (Solid) dielectric insulation and a 95% Tinned Copper (TC) braid shield. A black PVC-Polyvinyl Chloride jacket maintains a compact 0.193 in (4.90 mm) nominal overall diameter.

Key Features

• This is a 50 Ohm coaxial cable in the RG-58A/U form factor for wireless transmission applications.
• It features a 20 AWG (19x33) TC - Tinned Copper stranded conductor.
• PE-Polyethylene (Solid) dielectric insulation uses a white color code.
• The shield is a Tinned Copper (TC) braid with 95% coverage; braid only.
• A black PVC-Polyvinyl Chloride jacket provides a 0.193 in (4.90 mm) nominal overall diameter.

Applications

• It supports point-to-point and point-to-multipoint wireless antenna communication links.
• Wireless microphones commonly use it when consistent RF signal transfer is needed.
• Two-way radio setups use it as a coaxial feedline between equipment and antennas.
• Amateur (Ham) Radio installations use it for RF connections.
• Low Power FM systems apply it for RF signal routing.
• GPS connections use it when coax is required between components.
• RFID (Radio Frequency Identification) RF interconnects can use it.
