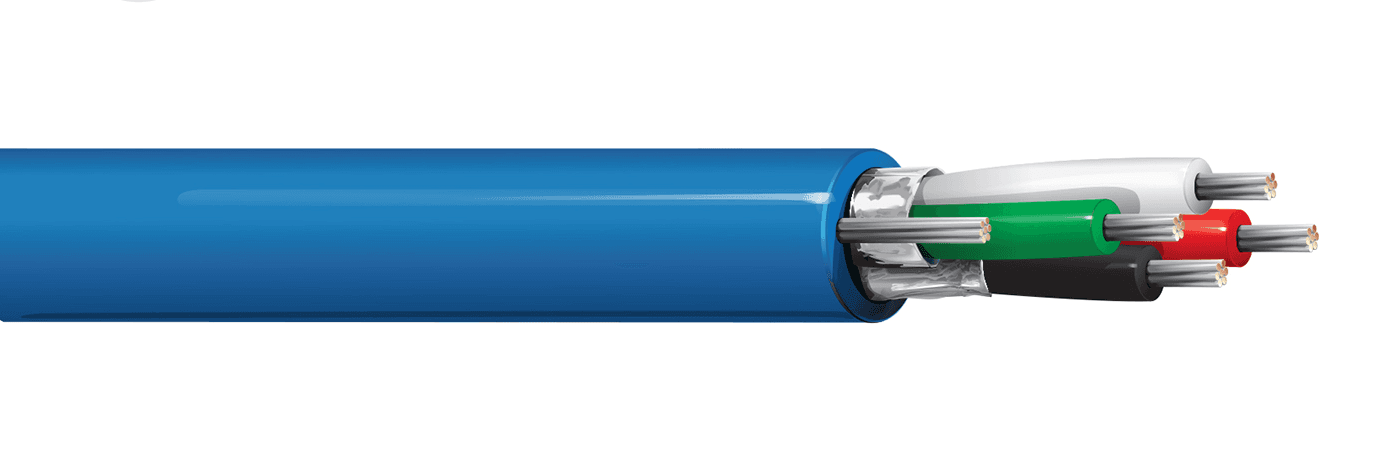

Belden 82723 877, Multi Conductor Cable 2 Pair 22 AWG FEP
Description
Belden 82723 877 is a plenum-rated audio, control, and instrument cable designed for reliable low-voltage signal transmission in indoor plenum spaces. It is built with 2 twisted pairs of 22 AWG stranded (7x30) TC - Tinned Copper conductors, FEP - Fluorinated Ethylene Propylene insulation, and a Flamarrest® PVC - Polyvinyl Chloride jacket. Each pair is individually shielded with tape (Bi-Laminate (Alum+Poly)) at 100% coverage, and a 24 AWG (7x32) TC drain wire supports termination. Key ratings and compliance include UL Voltage Rating: 300 V (CMP), UL temperature: 90°C, and flammability listings including NFPA 262 and UL 910 (Plenum).
Belden 82723 877 Key Features
- Plenum-rated construction for indoor - plenum, indoor environments.
- 2 twisted pairs using 22 AWG stranded (7x30) TC - Tinned Copper conductors.
- FEP - Fluorinated Ethylene Propylene insulation with color code: Black & Red, Green & White.
- Individually shielded twisted pairs using a tape shield with Bi-Laminate (Alum+Poly) material and 100% coverage.
- 24 AWG (7x32) TC drain wire supports termination.
- Flamarrest® jacket in Natural color with PVC - Polyvinyl Chloride jacket material.
- UL Voltage Rating: 300 V (CMP) and UL temperature: 90°C.
- Flammability / reaction to fire: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2.
Belden 82723 877 Applications
- Use it for indoor plenum applications where plenum-rated cable is required.
- Support low voltage analog signals (4-20ma, 0-10v, ...) in control and instrumentation circuits.
- Choose it for low voltage digital control (24v, …) where consistent signal transmission is needed.
- Run line level audio signals in installed systems.
- Install it for voice communications wiring where low-voltage signal cabling is required.
- Wire control and signal distribution panels with it for panel wiring.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Pairs | 2 |
| Conductor size | 22 AWG |
| Conductor stranding | 7x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation thickness (nom.) | 0.007 in (0.18 mm) |
| Insulation diameter (nom.) | 0.042 in (1.1 mm) |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Coverage | 100% |
| Drain Wire | 24 AWG (7x32) TC |
| Jacket thickness (nom.) | 0.017 in (0.43 mm) |
| Overall cable diameter (nominal) | 0.153 in (3.89 mm) |
| Nom. conductor DCR | 14.7 Ohm/1000ft |
| Nom. inner shield DCR | 15 Ohm/1000ft (49 Ohm/km) |
| Nom. capacitance cond-to-cond | 43 pF/ft (140 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 75 pF/ft (250 pF/m) |
| Nom. characteristic impedence | 36 Ohm |
| Nom. velocity of prop. | 62% |
| Max. current | 2.3 Amps per Conductor at 25ºC |
| Operating temperature | -20°C to +90°C |
| Bend radius (stationary min.) | 1.5 in (38 mm) |
| Bend radius (installation min.) | 1.5 in (38 mm) |
| Max Pull Tension | 46 lbs (21 kg) |
| Bulk cable weight | 19 lbs/1000ft |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum number | 8723 |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 82723 877100; 82723 877250; 82723 877500; 82723 8771000 UPC 612825197607; 82723 8775000 UPC 612825197614 |
| Priced Per | FT |
