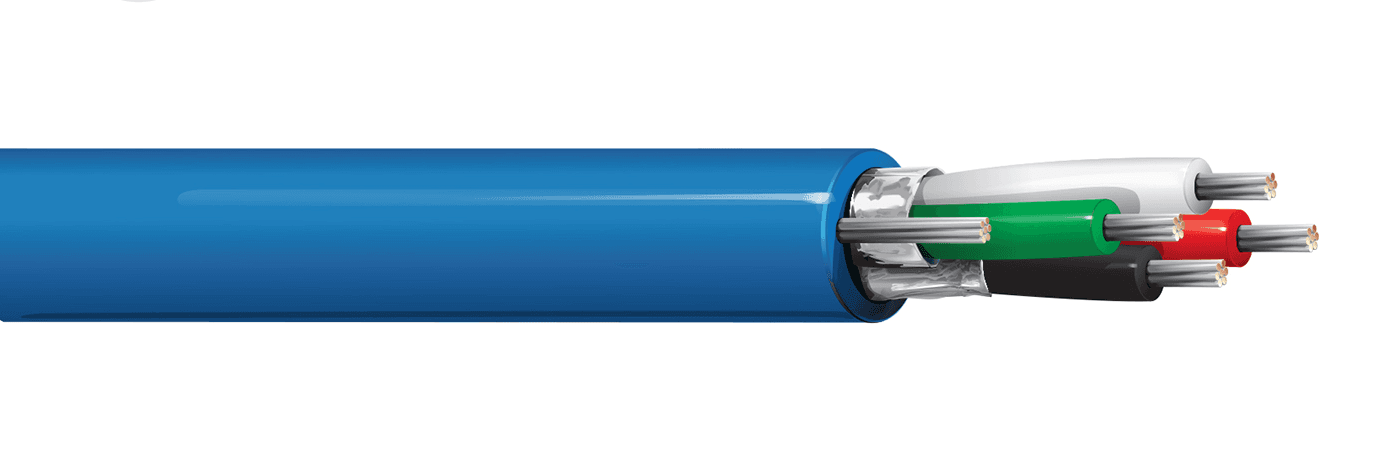

Belden 82723 877U, Multi Conductor Cable 2 Pair 22 AWG FEP
Description
Belden 82723 877U is a 2 pair 22 AWG audio, control, and instrument cable designed for indoor plenum installations. It features 22 AWG stranded (7x30) tinned copper conductors with FEP insulation and twisted pairs. Each pair is individually shielded with Beldfoil® (100% coverage) and includes a 24 AWG stranded tinned copper drain wire. A Flamarrest® jacket with CMP plenum rating supports fire-safety requirements in building spaces.
Belden 82723 877U Key Features
- 2 pair construction with 22 AWG conductors for audio, control, and instrument cabling.
- 22 AWG stranded (7x30) tinned copper conductors with FEP insulation.
- Twisted pairs to support reliable low voltage analog signals (4-20ma, 0-10v, ...) and low voltage digital control (24v, …).
- Individually shielded pairs using Beldfoil® (100% coverage) for noise-sensitive signal paths.
- 24 AWG (7x32) TC drainwire included for each pair.
- Flamarrest® jacket with CMP plenum rating.
Belden 82723 877U Applications
- Intended for indoor plenum applications where CMP-rated cable is required.
- Supports low voltage analog signals (4-20ma, 0-10v, ...) in audio, control, and instrument circuits.
- Handles low voltage digital control (24v, …) for control and instrumentation connections.
- Suitable for line level audio runs where shielding and a drain wire help manage noise-sensitive signals.
- Works for voice communications cabling in indoor building spaces.
- Commonly used for panel wiring in control and instrumentation panels.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of pairs | 2 |
| Conductor size | 22 AWG |
| Conductor stranding | 7x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | FEP - Fluorinated Ethylene Propylene |
| Nom. insulation thickness | 0.007 in (0.18 mm) |
| Nom. insulation diameter | 0.042 in (1.1 mm) |
| Pair color code | Black & Red, Green & White |
| Inner shield | Tape, Bi-Laminate (Alum+Poly), 100% coverage (each pair) |
| Drain Wire | 24 AWG (7x32) TC |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Nom. jacket thickness | 0.017 in (0.43 mm) |
| Overall cable diameter (nominal) | 0.153 in (3.89 mm) |
| Jacket Color | Natural |
| UL Voltage Rating | 300 V (CMP) |
| Nom. conductor DCR | 14.7 Ohm/1000ft |
| Nom. inner shield DCR | 15 Ohm/1000ft (49 Ohm/km) |
| Nom. capacitance cond-to-cond | 43 pF/ft (140 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 75 pF/ft (250 pF/m) |
| Nom. characteristic impedence | 36 Ohm |
| Nom. velocity of prop. | 62% |
| Max. current | 2.3 Amps per Conductor at 25ºC |
| UL temperature | 90°C |
| Operating temperature | -20°C to +90°C |
| Minimum bend radius (stationary) | 1.5 in (38 mm) |
| Minimum bend radius (installation) | 1.5 in (38 mm) |
| Max Pull Tension | 46 lbs (21 kg) |
| Bulk cable weight | 19 lbs/1000ft |
| Environmental suitability | Indoor - Plenum, Indoor |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum number | 8723 |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 82723 877U1000 UPC 612825197577 |
| Priced Per | FT |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
