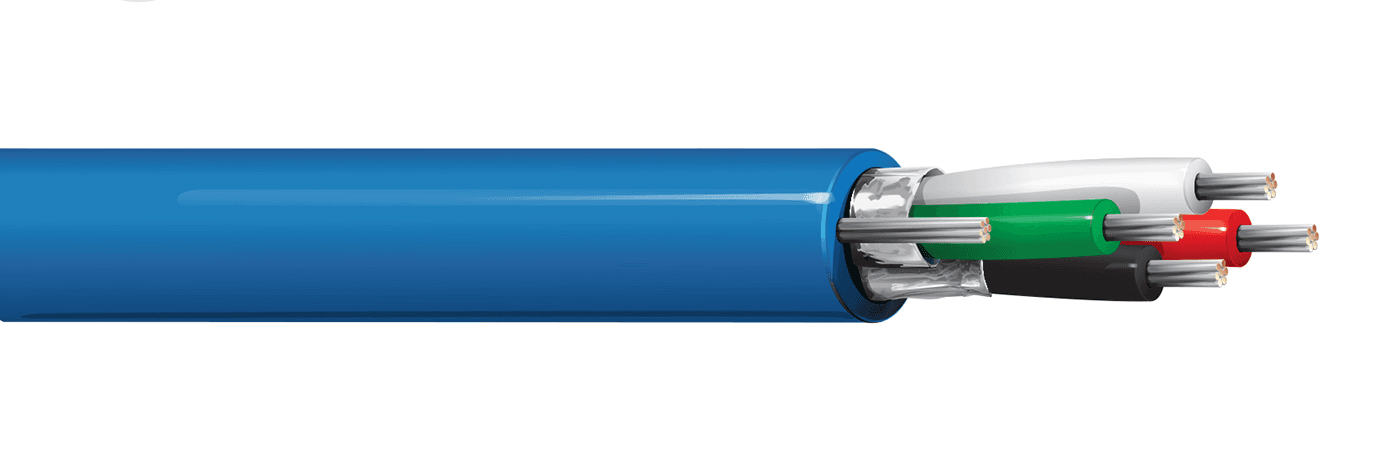

Belden 82723 877U, Multi Conductor Cable 2 Pair 22 AWG FEP
Description
Belden 82723 877U is a 2-pair 22 AWG audio, control, and instrument cable designed for indoor plenum installations. It features 22 AWG stranded (7x30) tinned copper conductors with FEP insulation and twisted pairs for low-voltage signal circuits. Each pair is individually shielded with Beldfoil® (100% coverage) and includes a 24 AWG stranded tinned copper drain wire to help reduce noise. A PVC - Polyvinyl Chloride jacket and CMP plenum rating support use in demanding building environments.
Belden 82723 877U Key Features
- 2-pair construction with 22 AWG stranded (7x30) TC - tinned copper conductors.
- FEP - Fluorinated Ethylene Propylene insulation with color code: Black & Red, Green & White.
- Individually shielded (each pair) tape shield using Bi-Laminate (Alum+Poly) with 100% coverage.
- 24 AWG (7x32) TC drainwire included for each pair.
- PVC - Polyvinyl Chloride jacket in Natural.
- CMP plenum rating with UL voltage rating: 300 V (CMP) and UL temperature: 90°C.
Belden 82723 877U Applications
- Intended for indoor plenum applications where CMP-rated cable is required.
- Supports low voltage analog signals (4-20ma, 0-10v, ...) in control and instrumentation circuits.
- Enables low voltage digital control (24v, …) for building and system control wiring.
- Suitable for line level audio connections where shielded pairs help manage noise.
- Works for voice communications circuits in indoor installations.
- Often used for panel wiring where organized multi-pair signal routing is needed.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Insulation thickness (nom.) | 0.007 in (0.18 mm) |
| Insulation diameter (nom.) | 0.042 in (1.1 mm) |
| Jacket thickness (nom.) | 0.017 in (0.43 mm) |
| Overall cable diameter (nom.) | 0.153 in (3.89 mm) |
| Bulk cable weight | 19 lbs/1000ft |
| Non-Plenum number | 8723 |
| Nom. conductor DCR | 14.7 Ohm/1000ft |
| Nom. inner shield DCR | 15 Ohm/1000ft (49 Ohm/km) |
| Nom. capacitance cond-to-cond | 43 pF/ft (140 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 75 pF/ft (250 pF/m) |
| Nom. characteristic impedence | 36 Ohm |
| Nom. velocity of prop. | 62% |
| Max. current | 2.3 Amps per conductor at 25ºC |
| Operating temperature | -20°C to +90°C |
| Bend radius (stationary min.) | 1.5 in (38 mm) |
| Bend radius (installation min.) | 1.5 in (38 mm) |
| Max Pull Tension | 46 lbs (21 kg) |
| Environmental suitability | Indoor - Plenum, Indoor |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 82723 877U500 UPC 612825197591 |
| Priced Per | FT |
