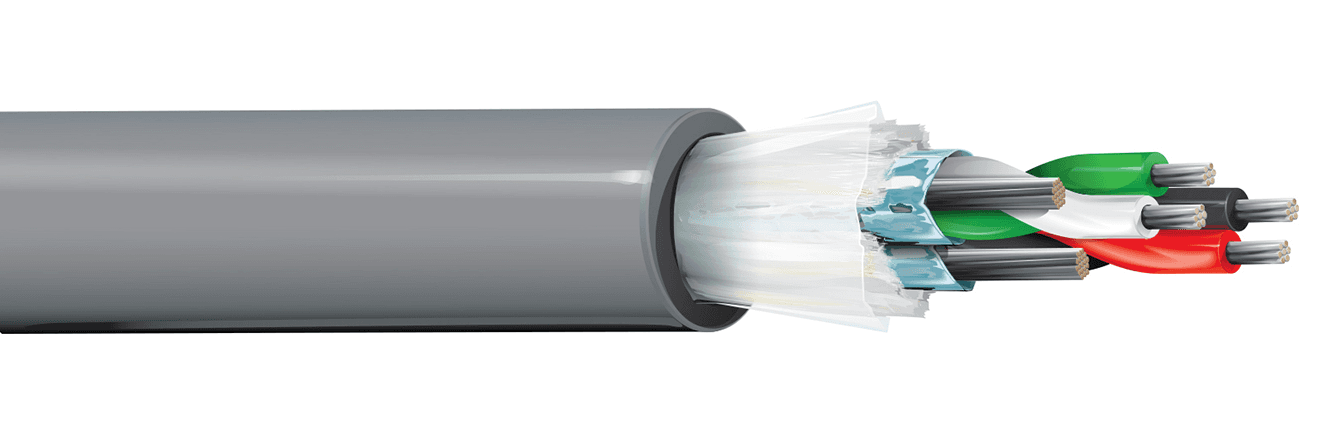

Belden 82729 877, Multi Conductor Snake Cable 2 Pair 24 AWG FFEPR
Description
Belden 82729 877 is a 2-pair, 24 AWG stranded (7x32) TC - tinned copper cable designed for computer EIA RS-232/422 and digital audio signal transmission. Each pair uses FEP - Fluorinated Ethylene Propylene (Foam) insulation and is individually shielded with Beldfoil® (100% coverage) plus a 24 AWG (7x32) TC drain wire to support noise rejection. It features a Flamarrest® plenum-rated jacket for Indoor - Plenum installations and carries a UL voltage rating of 300 V (CMP).
Belden 82729 877 Key Features
- 2-pair construction with 24 AWG stranded (7x32) TC - tinned copper conductors for signal transmission.
- Individually shielded pairs using Beldfoil® tape (Bi-Laminate (Alum+Poly), 100% coverage) with a 24 AWG (7x32) TC drain wire for noise rejection.
- Foam FEP - Fluorinated Ethylene Propylene insulation with Western Electric Standard color code.
- Flamarrest® plenum-rated jacket for Indoor - Plenum installations.
- UL voltage rating: 300 V (CMP).
Belden 82729 877 Applications
- Designed for Indoor - Plenum installations where plenum fire performance and low-smoke requirements are critical.
- Supports RS-232 extended distance applications in computer communication links.
- Suitable for RS-422 applications using balanced data signaling.
- Used for computer communication and general data/signal interconnects.
- Handles low voltage analog signals (4-20ma, 0-10v, ...) in control and instrumentation wiring.
- Supports low voltage digital control (24v, …) for control and signaling circuits.
- Used for line level audio signal transmission.
- Suitable for panel wiring in control panels and equipment interconnections.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Insulation thickness (nom.) | 0.019 in (0.48 mm) |
| Insulation diameter (nom.) | 0.062 in (1.6 mm) |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Jacket thickness (nom.) | 0.014 in (0.36 mm) |
| Cable diameter (nom.) | 0.255 in (6.48 mm) |
| Jacket Color | Natural |
| Bulk cable weight | 24 lbs/1000ft |
| Non-Plenum number | 9729 |
| Conductor DCR (nom.) | 24 Ohm/1000ft |
| Capacitance, Cond-to-Cond (nom.) | 13.5 pF/ft (44.3 pF/m) |
| Capacitance, Cond-to-other (nom.) | 22.5 pF/ft (73.8 pF/m) |
| Characteristic impedence (nom.) | 100 Ohm |
| Delay (nom.) | 1.3 ns/ft |
| Inductance (nom.) | 0.24 µH/ft (0.79 µH/m) |
| Velocity of prop. (nom.) | 76% |
| Max. current | 2 Amps per Conductor at 25ºC |
| High frequency attenuation | 0.384 MHz: 0.74 dB/100m; 0.7056 MHz: 0.87 dB/100m; 0.768 MHz: 0.89 dB/100m; 1.024 MHz: 0.95 dB/100m; 1.4112 MHz: 1.03 dB/100m; 1.536 MHz: 1.06 dB/100m; 2.048 MHz: 1.17 dB/100m; 2.8224 MHz: 1.37 dB/100m; 3.072 MHz: 1.44 dB/100m; 4.096 MHz: 1.67 dB/100m; 5.6448 MHz: 1.89 dB/100m; 6.144 MHz: 1.96 dB/100m; 8.192 MHz: 2.26 dB/100m; 11.2896 MHz: 2.59 dB/100ft; 12.288 MHz: 2.71 dB/100ft; 24.576 MHz: 3.73 dB/100ft |
| UL temperature | 75°C |
| Operating temperature | 0°C to +75°C |
| Stationary min. bend radius | 2.6 in (66 mm) |
| Installation min. bend radius | 2.6 in (66 mm) |
| Max Pull Tension | 33 lbs (15 kg) |
| Environmental suitability | Indoor - Plenum, Indoor |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6 |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 82729 877100, 82729 877250, 82729 877500, 82729 8771000 UPC 612825197638 |
| Priced Per | FT |
