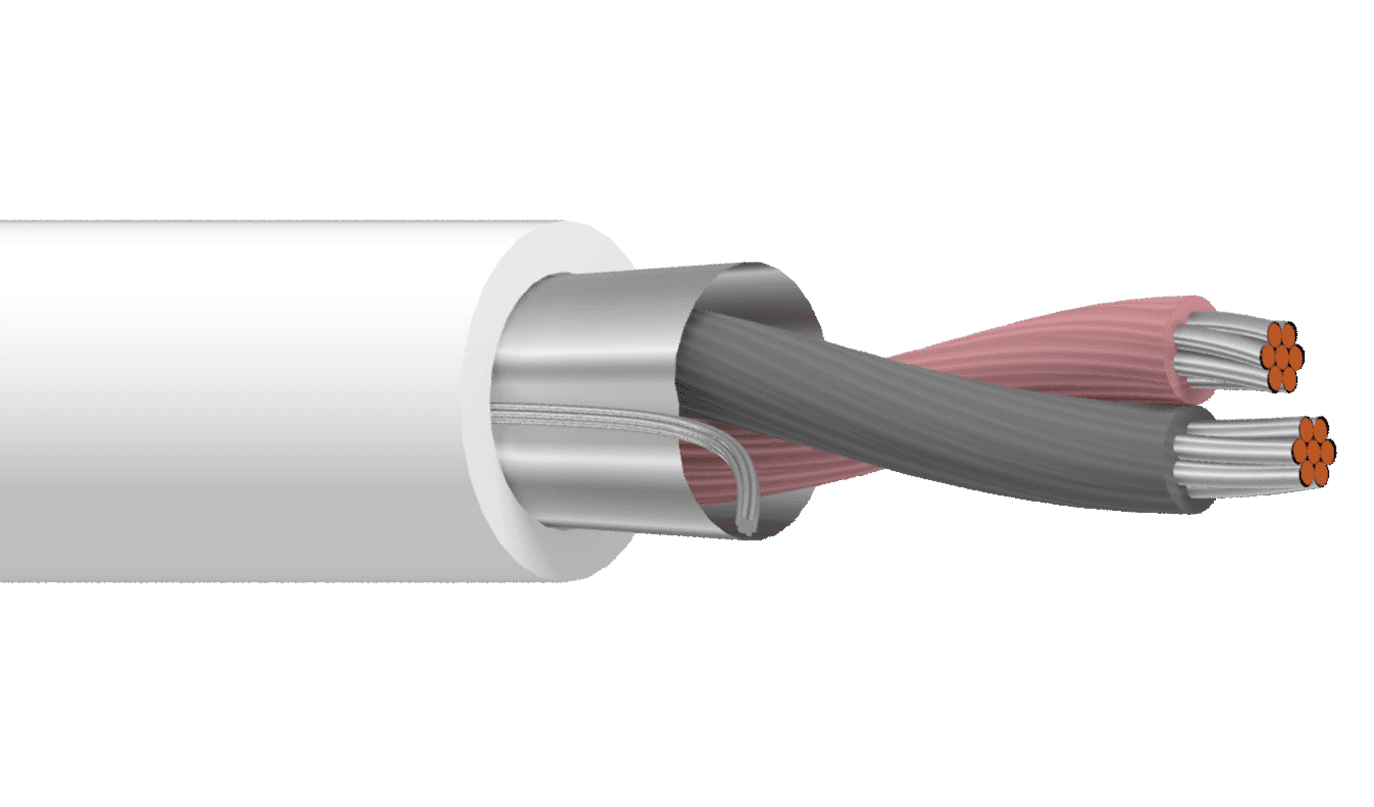

Belden 82760 877, Multi Pair Cable 1 Pair 18 AWG FEP Flamarrest Jacket, Natural Jacket
Description
Belden 82760 877 is a 1 pair, 18 AWG electronic cable designed for indoor plenum installations. It features 18 AWG (19x30) TC - Tinned Copper conductors with FEP - Fluorinated Ethylene Propylene insulation, plus a Beldfoil® tape shield with 100% coverage and a 20 AWG (7x28) TC drainwire. A PVC - Polyvinyl Chloride outer jacket and CMP rating support indoor plenum use, with key electrical characteristics including 35 Ohm impedance and 69% velocity of prop.
Belden 82760 877 Key Features
- 1 pair, 18 AWG electronic cable construction for low-voltage signal wiring.
- 18 AWG (19x30) TC - Tinned Copper conductors with FEP - Fluorinated Ethylene Propylene insulation.
- Beldfoil® tape shield with 100% coverage plus a 20 AWG (7x28) TC drainwire.
- PVC - Polyvinyl Chloride outer jacket with CMP rating for indoor - plenum, indoor environments.
- Electrical performance includes 35 Ohm nominal characteristic impedence and 69% nom. velocity of prop.
Belden 82760 877 Applications
- Designed for indoor plenum applications where low-voltage signal performance is required.
- Supports low voltage analog signals such as 4-20ma and 0-10v.
- Handles low voltage digital control circuits including 24v control.
- Works for line level audio signal runs.
- Applies to voice communications circuits.
- Meets panel wiring needs in control and signal distribution setups.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Cable type | Electronic Cable |
| Number of pairs | 1 |
| Conductor size | 18 AWG |
| Conductor stranding | 19x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | FEP - Fluorinated Ethylene Propylene |
| Insulation nominal thickness | 0.007 in (0.18 mm) |
| Insulation nominal diameter | 0.057 in (1.4 mm) |
| Insulation color code | Black & Red |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Shield Coverage | 100% |
| Drainwire type | 20 AWG (7x28) TC |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Outer jacket nominal thickness | 0.014 in (0.36 mm) |
| Overall cable diameter (nominal) | 0.146 in (3.71 mm) |
| Jacket Color | Natural |
| Non-Plenum number | 8760 |
| Nom. conductor DCR | 7.05 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 51 pF/ft (170 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 97 pF/ft (320 pF/m) |
| Nom. delay | 1.47 ns/ft |
| Nom. inductance | 0.15 µH/ft (0.49 µH/m) |
| Max. current | 5 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 8.49 Ohm/1000ft (27.9 Ohm/km) |
| UL Voltage Rating | 300 V (CMP) |
| UL temperature | 75°C |
| Operating temperature | -20°C to +75°C |
| Bend radius (stationary min.) | 1.46 in (37.1 mm) |
| Bend radius (installation min.) | 1.46 in (37.1 mm) |
| Max Pull Tension | 62 lbs (28 kg) |
| Bulk cable weight | 20 lbs/1000ft |
| Environmental suitability | Indoor - Plenum, Indoor |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6 |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 82760 877100; 82760 877250; 82760 877500; 82760 8771000 UPC 612825197744; 82760 8775000 UPC 612825197751 |
| Priced Per | FT |
