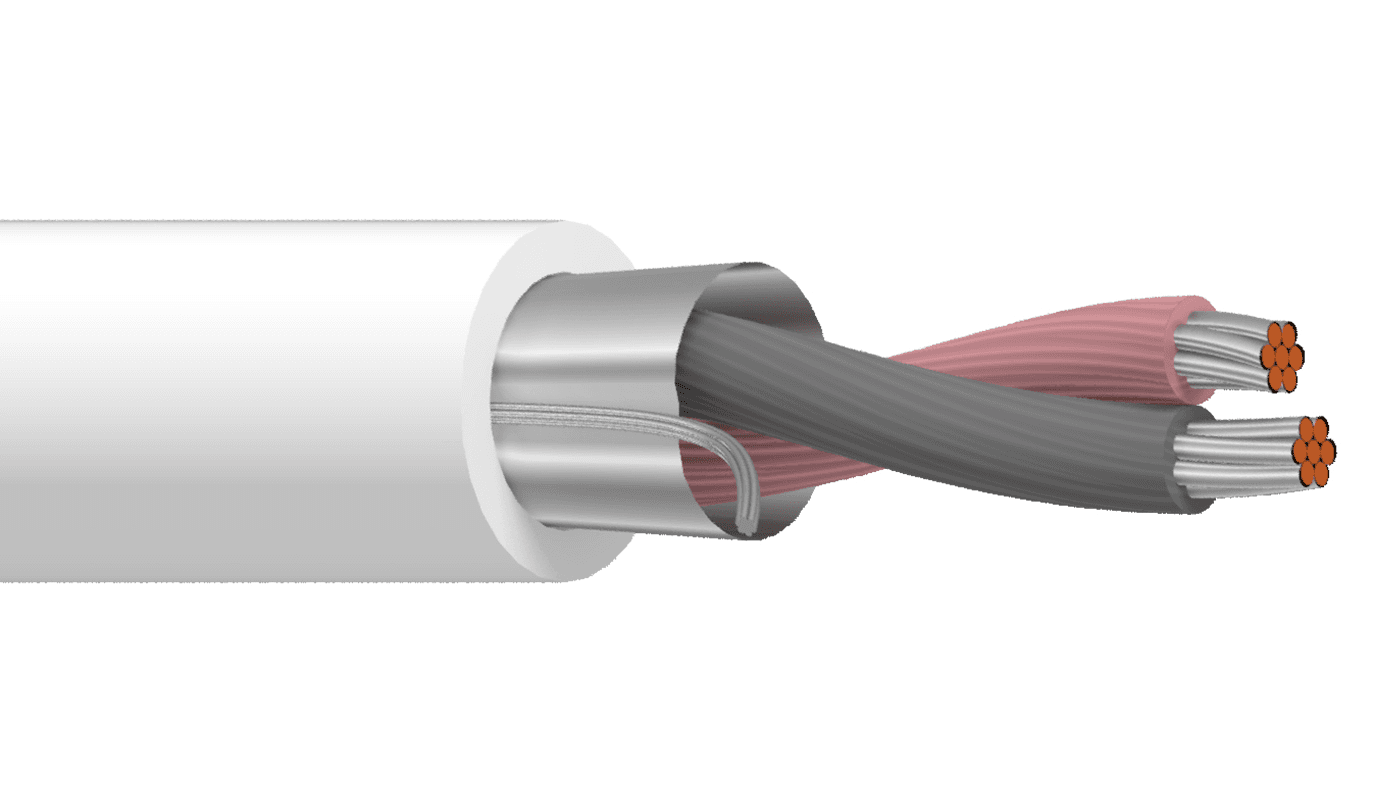

Belden 82760 877U, Multi Pair Cable 1 Pair 18 AWG FEP Flamarrest Jacket, Natural Jacket
Description
Belden 82760 877U is a 1 pair, 18 AWG electronic cable designed for indoor plenum installations requiring reliable low-voltage signal performance. It uses 18 AWG stranded (19x30) tinned copper conductors with FEP insulation, plus an overall Beldfoil® shield with 100% coverage and a 20 AWG (7x28) TC drainwire for noise control. A PVC outer jacket with CMP rating supports use in plenum spaces, and the jacket color is Natural.
Belden 82760 877U Key Features
- 1 pair construction with 18 AWG stranded (19x30) tinned copper conductors.
- FEP insulation with a Black & Red color code.
- Overall Beldfoil® shield with 100% coverage using tape and Bi-Laminate (Alum+Poly).
- 20 AWG (7x28) TC drainwire for shield termination.
- PVC - Polyvinyl Chloride outer jacket with CMP rating for indoor - plenum, indoor environments.
- UL voltage rating: 300 V (CMP).
- UL temperature: 75°C; operating temperature: -20°C to +75°C.
- Jacket color: Natural.
Belden 82760 877U Applications
- Designed for indoor plenum applications where low-voltage signal performance is required.
- Supports low voltage analog signals (4-20ma, 0-10v, ...).
- Suitable for low voltage digital control (24v, …).
- Use it for line level audio signal runs.
- Applicable for voice communications wiring.
- Commonly used in panel wiring where a shielded, low-voltage signal cable is needed.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor size | 18 AWG |
| Conductor stranding | 19x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | FEP - Fluorinated Ethylene Propylene |
| Nom. thickness (insulation) | 0.007 in (0.18 mm) |
| Nom. insulation diameter | 0.057 in (1.4 mm) |
| Shield Type | Tape |
| Shield Material | Bi-Laminate (Alum+Poly) |
| Drainwire type | 20 AWG (7x28) TC |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Nom. thickness (jacket) | 0.014 in (0.36 mm) |
| Overall cable diameter (nominal) | 0.146 in (3.71 mm) |
| Non-Plenum number | 8760 |
| Nom. conductor DCR | 7.05 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 51 pF/ft (170 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 97 pF/ft (320 pF/m) |
| Nom. characteristic impedence | 35 Ohm |
| Nom. delay | 1.47 ns/ft |
| Nom. inductance | 0.15 µH/ft (0.49 µH/m) |
| Nom. velocity of prop. | 69% |
| Max. current | 5 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 8.49 Ohm/1000ft (27.9 Ohm/km) |
| Stationary min. bend radius | 1.46 in (37.1 mm) |
| Installation min. bend radius | 1.46 in (37.1 mm) |
| Max Pull Tension | 62 lbs (28 kg) |
| Bulk cable weight | 20 lbs/1000ft |
| Flammability / reaction to fire | NFPA 262, UL 910 (Plenum), FT6 |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Other Part Numbers | 82760 877U500 UPC 612825197737 |
| Priced Per | FT |
| Item Type | Belden Multi-Pair Cable |
