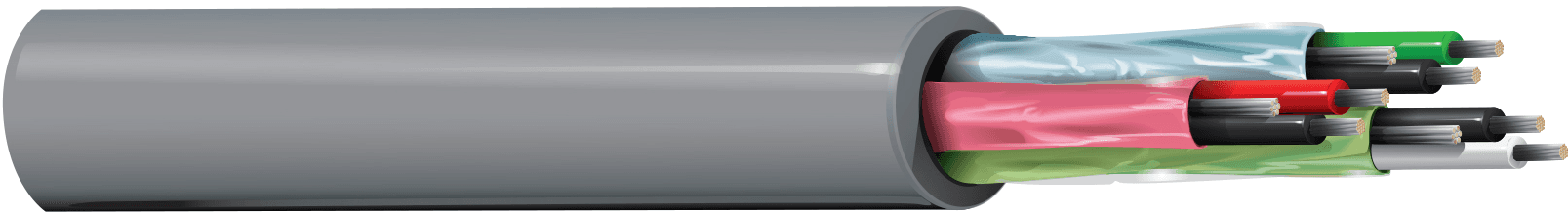

Belden 82777 877, Multi Conductor CMP Plenum 3 Pair 22 AWG FEP

Belden 82777 877 is a 3-pair, 22 AWG audio, control, and instrument cable for indoor plenum applications. It features 22 AWG stranded (7x30) TC - Tinned Copper conductors with FEP - Fluorinated Ethylene Propylene insulation and twisted pairs individually shielded with Beldfoil® (100% coverage) for noise rejection. A 22 AWG (19x34) TC drain wire supports grounding, and the PVC - Polyvinyl Chloride jacket provides protection. Key ratings and compliance include 300 V, 90°C, NFPA 262 (UL910), and NEC / UL Article 800, CMP.

Belden 82777 877 Key Features

• 3 twisted pairs (3 elements) support organized multi-pair signal runs.
• 22 AWG stranded (7x30) TC - Tinned Copper conductors support flexible terminations.
• FEP - Fluorinated Ethylene Propylene insulation with 0.011 in (0.28 mm) nominal thickness.
• Individually shielded pairs use Beldfoil® tape (Bi-Laminate (Alum+Poly)) with 100% coverage.
• 22 AWG (19x34) TC drain wire supports grounding.
• PVC - Polyvinyl Chloride outer jacket with natural jacket color.
• UL voltage rating: 300 V.
• UL temperature: 90°C; operating temperature: 0°C to +90°C.
• Flammability / reaction to fire: NFPA 262 (UL910), FT6, IEC 60332-1-2.
• NEC / UL compliance: Article 800, CMP; CEC / C(UL) compliance: CMP.

Belden 82777 877 Applications

• Use in indoor plenum installations where plenum-rated cabling is required.
• Support low voltage analog signals (4-20ma, 0-10v, ...) in audio, control, and instrument systems.
• Handle low voltage digital control (24v, …) for control and signaling circuits.
• Use for line level audio connections where signal integrity is important.
• Work well for voice communications cabling in indoor installations.
• Commonly route signals for panel wiring between equipment and control panels.
