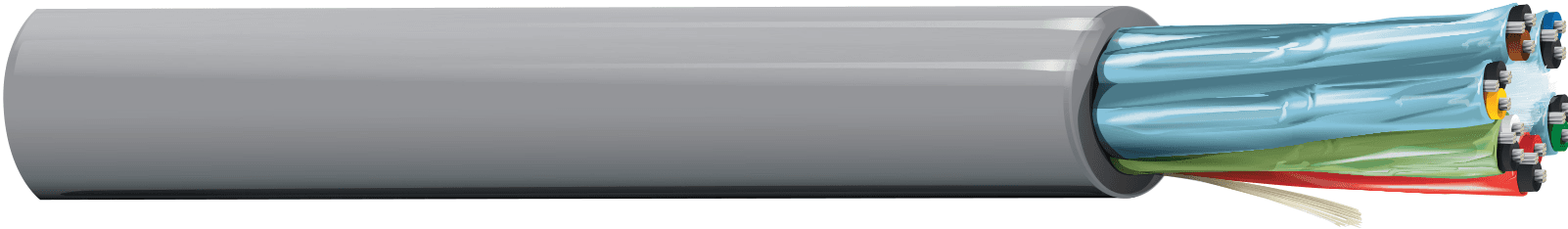

Belden 82778 877, Multi Conductor Cable 6PR22 AWG FEP CMP

Belden 82778 877 is a 6-pair 22 AWG audio, control, and instrument cable designed for indoor plenum installations. It uses 22 AWG stranded (7x30) TC - tinned copper conductors with FEP - Fluorinated Ethylene Propylene insulation and twisted pairs individually shielded with Beldfoil® (100% coverage) for noise rejection. A 22 AWG (19x34) TC drain wire supports grounding, and the PVC - Polyvinyl Chloride jacket in Natural provides protection. Key ratings and compliance include UL voltage rating: 300 V, UL temperature: 90°C, and NEC / UL compliance: Article 800, CMP.

Belden 82778 877 Key Features

• The 6-pair construction supports multi-channel audio, control, and instrument signal runs in a single cable.
• 22 AWG stranded (7x30) TC - tinned copper conductors are paired with FEP - Fluorinated Ethylene Propylene insulation.
• Individually shielded twisted pairs use Beldfoil® with 100% coverage to help reduce noise.
• A 22 AWG (19x34) TC drain wire supports grounding.
• The PVC - Polyvinyl Chloride jacket in Natural provides outer protection.
• Designed for indoor plenum installations.
• UL voltage rating: 300 V.
• UL temperature: 90°C.
• Flammability / reaction to fire: NFPA 262 (UL910), FT6.
• NEC / UL compliance: Article 800, CMP.
• CEC / C(UL) compliance: CMP.
• European directive compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE).
• APAC compliance: China RoHS II (GB/T 26572-2011).

Belden 82778 877 Applications

• Designed for indoor plenum applications where plenum-rated cable is required.
• Commonly used for low voltage analog signals (4-20ma, 0-10v, ...).
• Supports low voltage digital control (24v, …) in control and instrumentation wiring.
• Used for line level audio signal connections.
• Used for voice communications cabling.
• Commonly used for panel wiring.
