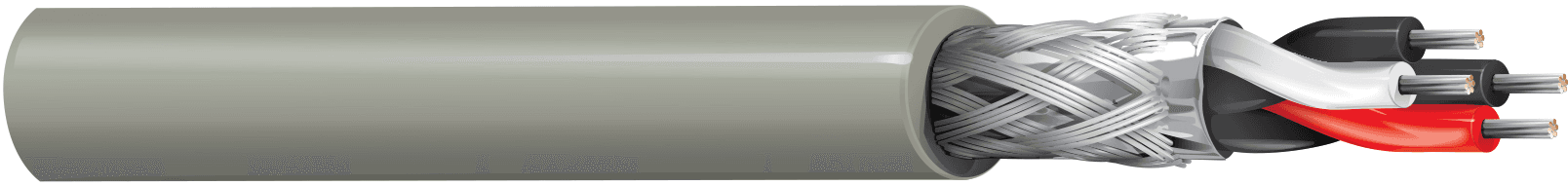

Belden 8302 060, Multi Conductor Computer Cable 2 Pair 22 AWG PVC Shield
SKU:Belden 8302 060
● In stock
Description
Belden 8302 060 is a 2 twisted pair computer EIA RS-232 cable built with 22 AWG stranded (7x30) TC - Tinned Copper conductors and SR-PVC - Polyvinyl Chloride (Semi-Rigid) insulation. It uses an overall Beldfoil® shield (100% coverage) plus a Tinned Copper braid shield (65% coverage) to help reduce EMI. This indoor cable is finished with a PVC jacket in Chrome and is specified for UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464). It supports RS-232 extended distance applications, computer communications, and low voltage analog and digital control signals.
Belden 8302 060 Key Features
- 2 twisted pair computer EIA RS-232 cable construction for control and communication signal wiring.
- 22 AWG stranded (7x30) TC - Tinned Copper conductors.
- SR-PVC - Polyvinyl Chloride (Semi-Rigid) insulation.
- Overall Beldfoil® tape shield (100% coverage) plus Tinned Copper braid shield (65% coverage) to help reduce EMI.
- PVC jacket with Chrome color finish.
- Environmental suitability: indoor.
- UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464).
Belden 8302 060 Applications
- Use in RS-232 extended distance applications where reliable signal transmission is needed.
- Support computer communications links that use EIA RS-232 signaling.
- Carry low voltage analog signals (4-20ma, 0-10v, ...) in control and communication environments.
- Handle low voltage digital control (24v, …) for control signal interconnects.
- Run line level audio where shielded signal cabling is required.
- Install for panel wiring in indoor installations.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Elements | pair(s) |
| Number of elements | 2 |
| Insulation thickness (nom.) | 0.011 in (0.28 mm) |
| Insulation diameter (nom.) | 0.051 in (1.3 mm) |
| Color Code | Black & Red, Black & White |
| Shield (tape) | Bi-Laminate (Alum+Poly), 100% |
| Shield (braid) | Tinned Copper (TC), 65% |
| Jacket thickness (nom.) | 0.035 in (0.89 mm) |
| Overall cable diameter (nom.) | 0.280 in (7.11 mm) |
| Bulk cable weight | 38 lbs/1000ft |
| Outer shield DCR (nom) | 6.0 Ohm/1000ft (20 Ohm/km) |
| Conductor DCR (nom.) | 18.2 Ohm/1000ft |
| Capacitance, Cond-to-Cond (nom.) | 40 pF/ft (130 pF/m) |
| Capacitance, Cond-to-other (nom.) | 72 pF/ft (240 pF/m) |
| Inductance (nom.) | 0.175 µH/ft (0.574 µH/m) |
| Velocity of propagation (nom.) | 60% |
| Max. current | 2.8 Amps per Conductor at 25ºC |
| Operating temperature | -30°C to +80°C |
| UL temperature | 80°C |
| Bend radius (stationary min.) | 2.8 in (71 mm) |
| Bend radius (installation min.) | 2.8 in (71 mm) |
| Max Pull Tension | 36.4 lbs (16.5 kg) |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMG |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 8302 060100 UPC 612825200796; 8302 060250; 8302 060500 UPC 612825200819; 8302 0601000 UPC 612825200802; 8302 0605000 UPC 612825200826 |
| Priced Per | FT |
