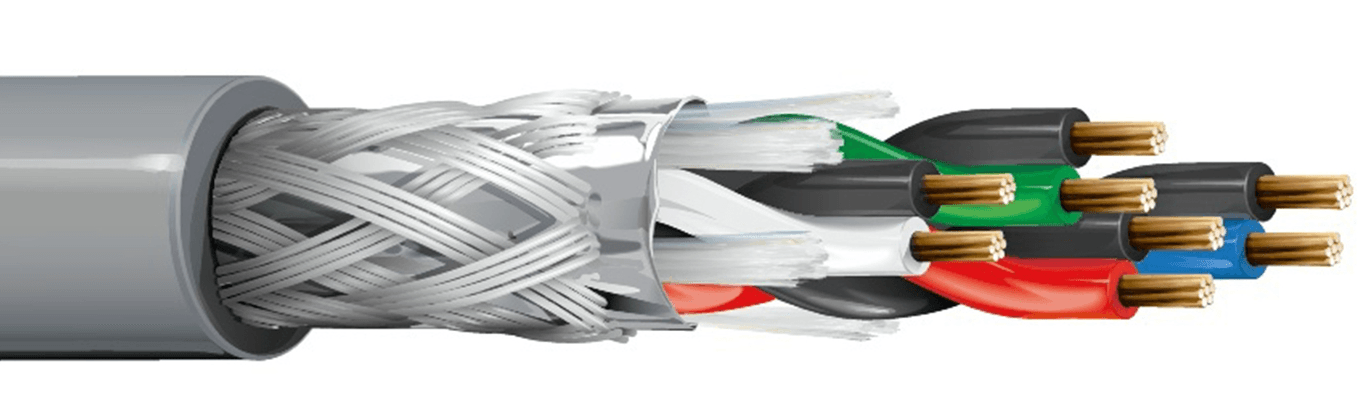

Belden 8304 060, 22 AWG 4PR Stranded Shielded PVC Jacket, Chrome Jacket
SKU:Belden 8304 060
● In stock
Description
Belden 8304 060 is a Computer EIA RS-232 Cable designed for reliable signal transmission in extended distance RS-232 links, computer communications, and low voltage analog and digital control circuits. It is built with 4 twisted pairs of 22 AWG Stranded (7x30) TC - Tinned Copper conductors and SR-PVC - Polyvinyl Chloride (Semi-Rigid) insulation. For noise rejection, it uses an overall Beldfoil® (100% coverage) plus a Tinned Copper braid shield (65% coverage). The cable is finished with a PVC - Polyvinyl Chloride jacket in Chrome for indoor installations.
Belden 8304 060 Key Features
- Computer EIA RS-232 Cable construction supports reliable signal transmission for extended distance RS-232 links and control circuits.
- 4 twisted pairs with 22 AWG Stranded (7x30) TC - Tinned Copper conductors support consistent electrical performance.
- SR-PVC - Polyvinyl Chloride (Semi-Rigid) insulation supports stable insulation performance.
- Overall Beldfoil® (100% coverage) plus Tinned Copper braid shield (65% coverage) supports noise rejection.
- PVC - Polyvinyl Chloride jacket in Chrome with environmental suitability: indoor.
- UL voltage rating: 300 V (CMG), 300 V (UL AWM 2464).
- Operating temperature: -30°C to +80°C; UL temperature: 80°C.
Belden 8304 060 Applications
- Use it in RS-232 extended distance applications where reliable signal transmission is needed over longer RS-232 links.
- Support computer communications wiring where RS-232 connectivity is part of the communication path.
- Choose it for low voltage analog signals (4-20ma, 0-10v, ...) in control and monitoring circuits.
- Apply it to low voltage digital control (24v, …) where digital control signals are carried between devices.
- Install it for line level audio signal runs where a shielded cable construction is needed.
- Use it for panel wiring in indoor panels and control enclosures.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of pairs | 4 |
| Conductor size | 22 AWG |
| Conductor stranding | 7x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | SR-PVC - Polyvinyl Chloride (Semi-Rigid) |
| Nom. thickness (insulation) | 0.011 in (0.28 mm) |
| Nom. insulation diameter | 0.051 in (1.3 mm) |
| Pair color code | Black & Red, Black & White, Black & Green, Black & Blue |
| Shield construction | Overall Beldfoil® (100% coverage) + Tinned Copper braid shield (65% coverage) |
| Tape | Bi-Laminate (Alum+Poly), 100% |
| Braid | Tinned Copper (TC), 65% |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Nom. thickness (jacket) | 0.045 in (1.1 mm) |
| Nom. diameter (jacket) | 0.320 in (8.13 mm) |
| Overall cable diameter (nominal) | 0.320 in (8.13 mm) |
| Jacket Color | Chrome |
| Nom. conductor DCR | 18.2 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 35 pF/ft (110 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 63 pF/ft (210 pF/m) |
| Nom. velocity of prop. | 60% |
| Max. current | 2.2 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 6.2 Ohm/1000ft (20 Ohm/km) |
| Bend radius (stationary min.) | 3.2 in (81 mm) |
| Bend radius (installation min.) | 3.2 in (81 mm) |
| Max Pull Tension | 72.8 lbs (33.0 kg) |
| Bulk cable weight | 59 lbs/1000ft |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMG |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 8304 060100 UPC 612825202189; 8304 060250; 8304 060500 UPC 612825202202; 8304 0601000 UPC 612825202196; 8304 0605000 UPC 612825202219 |
| Priced Per | FT |
