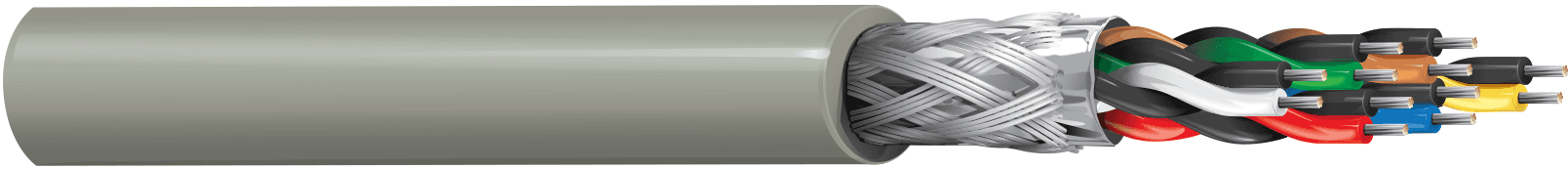

Belden 8306 060, Multi Conductor Computer Cable 6 Pair 22 AWG PVC Shield
SKU:Belden 8306 060
● In stock
Description
Belden 8306 060 is a multi-pair computer and control cable for RS-232 extended distance applications, computer communications, and low voltage analog and digital signals. It is built with 6 twisted pairs of 22 AWG stranded (7x30) TC - Tinned Copper conductors and SR-PVC - Polyvinyl Chloride (Semi-Rigid) insulation. For noise rejection, it uses an overall Beldfoil® (100% coverage) plus a Tinned Copper braid shield (65% coverage). The cable is finished with a PVC - Polyvinyl Chloride jacket in Chrome and is suited for indoor installations.
Belden 8306 060 Key Features
- 6 twisted pairs support multi-pair signal and control wiring in a single cable.
- 22 AWG stranded (7x30) TC - Tinned Copper conductors are specified for signal and control wiring.
- Overall Beldfoil® (100% coverage) plus Tinned Copper braid shield (65% coverage) is designed for noise rejection.
- PVC - Polyvinyl Chloride jacket in Chrome is specified for indoor installations.
- UL voltage rating: 300 V (CMG), 300 V (UL AWM 2464).
- Operating temperature: -30°C to +80°C.
Belden 8306 060 Applications
- Use it for RS-232 extended distance applications where multi-pair signal transmission is required.
- Support computer communications wiring in systems that use multi-pair control and signal connections.
- Apply it to low voltage analog signals (4-20ma, 0-10v, ...) in control and instrumentation circuits.
- Choose it for low voltage digital control (24v, …) where multiple control pairs are needed.
- Install it for line level audio signal runs.
- Use it for panel wiring in indoor installations.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of pairs | 6 |
| Conductor size | 22 AWG |
| Conductor stranding | 7x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | SR-PVC - Polyvinyl Chloride (Semi-Rigid) |
| Nom. thickness (insulation) | 0.011 in (0.28 mm) |
| Nom. insulation diameter | 0.051 in (1.3 mm) |
| Color Code | Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown |
| Tape material | Bi-Laminate (Alum+Poly) |
| Tape coverage | 100% |
| Braid material | Tinned Copper (TC) |
| Braid coverage | 65% |
| Nom. outer shield DCR | 7.1 Ohm/1000ft (23 Ohm/km) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. thickness (jacket) | 0.035 in (0.89 mm) |
| Overall cable diameter (nominal) | 0.348 in (8.84 mm) |
| Nom. diameter | 0.348 in (8.84 mm) |
| Jacket Color | Chrome |
| Bulk cable weight | 72 lbs/1000ft |
| Nom. conductor DCR | 18.2 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 35 pF/ft (110 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 63 pF/ft (210 pF/m) |
| Nom. velocity of prop. | 60% |
| Max. current | 1.96 Amps per Conductor at 25ºC |
| Environmental suitability | Indoor |
| UL temperature | 80°C |
| Bend radius (stationary min.) | 3.5 in (89 mm) |
| Bend radius (installation min.) | 3.5 in (89 mm) |
| Max Pull Tension | 109 lbs (49.4 kg) |
| NEC / UL compliance | Article 800, CMG |
| CEC / C(UL) compliance | CMG |
| AWM compliance | AWM 2464 |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 8306 060100 UPC 612825202967; 8306 060250; 8306 060500 UPC 612825202981; 8306 0601000 UPC 612825202974; 8306 0605000 UPC 612825202998 |
| Priced Per | FT |
