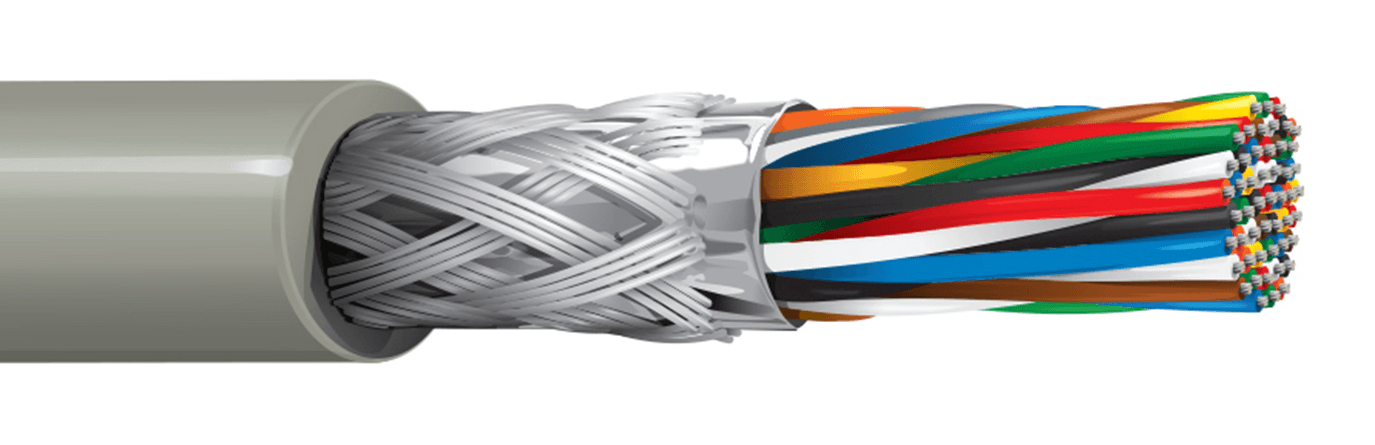

Belden 8325 060, Computer Cable 25 Pair 22 AWG Shield PVC
Description
Belden 8325 060 is a 25 twisted pair computer EIA RS-232 cable built with 22 AWG stranded (7x30) tinned copper conductors and semi-rigid PVC insulation. It features an overall Beldfoil® shield (100% coverage) plus a tinned copper braid shield (65% coverage) under a PVC jacket. Designed for indoor use, it meets Article 800, CMG, and AWM 2464, and supports RS-232 extended distance applications, computer communications, and low voltage analog and digital control signals.
Belden 8325 060 Key Features
- 25 twisted pairs support multi-pair RS-232 and computer communication signal runs.
- 22 AWG stranded (7x30) tinned copper conductors are paired with semi-rigid PVC insulation.
- Overall Beldfoil® shield (100% coverage) plus a tinned copper braid shield (65% coverage) supports noise-sensitive installations.
- PVC jacket in Chrome is suited for indoor environments.
- Compliance includes Article 800, CMG, and AWM 2464.
Belden 8325 060 Applications
- Use it for RS-232 extended distance applications where reliable serial communication is required.
- Support computer communications in indoor installations with this cable.
- Carry low voltage analog signals (4-20ma, 0-10v, ...) in control and monitoring circuits.
- Transmit low voltage digital control (24v, …) between devices.
- Connect line level audio signals.
- Use it for panel wiring in indoor environments.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Pairs | 25 twisted pairs |
| Conductor size | 22 AWG |
| Conductor stranding | 7x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | SR-PVC - Polyvinyl Chloride (Semi-Rigid) |
| Insulation nominal thickness | 0.011 in (0.28 mm) |
| Insulation nominal diameter | 0.051 in (1.3 mm) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket nominal thickness | 0.045 in (1.1 mm) |
| Jacket Color | Chrome |
| Overall cable diameter (nominal) | 0.620 in (15.7 mm) |
| Shield construction | Overall foil & braid |
| Tape shield | Bi-Laminate (Alum+Poly), 100% |
| Braid shield | Tinned Copper (TC), 65% |
| Bulk cable weight | 233 lbs/1000ft |
| UL Voltage Rating | 300 V (CMG), 300 V (UL AWM 2464) |
| Nominal conductor DCR | 18.2 Ohm/1000ft |
| Nominal capacitance (Cond-to-Cond) | 35 pF/ft (110 pF/m) |
| Nominal capacitance (cond-to-other) | 63 pF/ft (210 pF/m) |
| Nominal Velocity of Propagation | 60% |
| Max. current | 1.4 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 4.2 Ohm/1000ft (14 Ohm/km) |
| Operating temperature | -30°C to +80°C |
| UL temperature | 80°C |
| Bend radius (stationary min.) | 6.2 in (160 mm) |
| Bend radius (installation min.) | 6.2 in (160 mm) |
| Max Pull Tension | 455 lbs (206 kg) |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMG |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi Conductor Cable |
| Other Part Numbers | 8325 060100; 8325 060250; 8325 060500 UPC 612825203643; 8325 0601000 UPC 612825203636 |
| Priced Per | FT |
