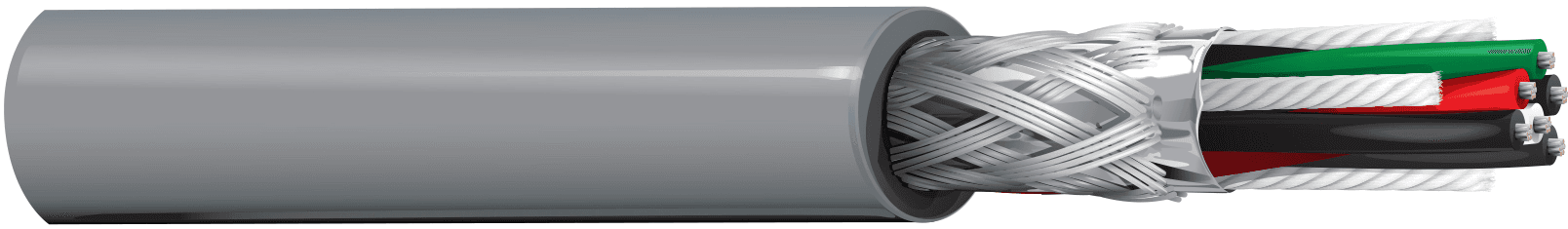

Belden 8333 060, Multi Conductor Computer Cable 3 Pair 24 AWG Shield PVC
SKU:Belden 8333 060
● In stock
Description
Belden 8333 060 is a 3-pair computer EIA RS-232 cable with 24 AWG stranded (7x32) tinned copper conductors and semi-rigid PVC insulation. It uses an overall Beldfoil® (100% coverage) plus a tinned copper braid shield (65% coverage) to help reduce EMI/RFI. The PVC jacket in Chrome is designed for indoor installations, and the cable is rated 300 V (CMG), 300 V (UL AWM 2464) with an operating temperature range of -30°C to +80°C.
Belden 8333 060 Key Features
- 3 pair(s) construction for computer EIA RS-232 cable applications.
- 24 AWG stranded (7x32) TC - Tinned Copper conductors.
- Overall shield: Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage) to help reduce EMI/RFI.
- PVC - Polyvinyl Chloride jacket in Chrome for indoor suitability.
- UL voltage rating: 300 V (CMG), 300 V (UL AWM 2464).
- Operating temperature: -30°C to +80°C.
Belden 8333 060 Applications
- Supports RS-232 extended distance applications where consistent communications are needed over longer runs.
- Used in computer communications links for data and control signaling.
- Handles low voltage analog signals (4-20ma, 0-10v, ...) in control and instrumentation circuits.
- Supports low voltage digital control (24v, …) in automation and control wiring.
- Works well for line level audio connections where signal integrity is important.
- Fits indoor panel wiring installations in equipment and control panels.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor Material | TC - Tinned Copper |
| Insulation Material | SR-PVC - Polyvinyl Chloride (Semi-Rigid) |
| Insulation nominal thickness | 0.0105 in (0.267 mm) |
| Color Code | White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe |
| Shield type (tape) | Bi-Laminate (Alum+Poly), 100% |
| Shield type (braid) | Tinned Copper (TC), 65% |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket nominal thickness | 0.035 in (0.89 mm) |
| Overall cable diameter (nominal) | 0.265 in (6.73 mm) |
| Bulk cable weight | 41 lbs/1000ft (61 kg/km) |
| Nom. conductor DCR | 24 Ohm/1000ft (79 Ohm/km) |
| Max. Conductor DCR | 9.38 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 30 pF/ft (98 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 50 pF/ft (160 pF/m) |
| Nom. characteristic impedence | 75 Ohm |
| Nom. velocity of prop. | 60% |
| Max. current | 1.6 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 6.6 Ohm/1000ft (22 Ohm/km) |
| UL temperature | 80°C (UL AWM 2464) |
| Flammability / reaction to fire | UL1685 FT4 Loading, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMG |
| AWM compliance | AWM 2464, AWM I A |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 8333 060100 UPC 612825204114; 8333 060250; 8333 060500 UPC 612825204138; 8333 0601000 UPC 612825204121 |
| Priced Per | FT |
