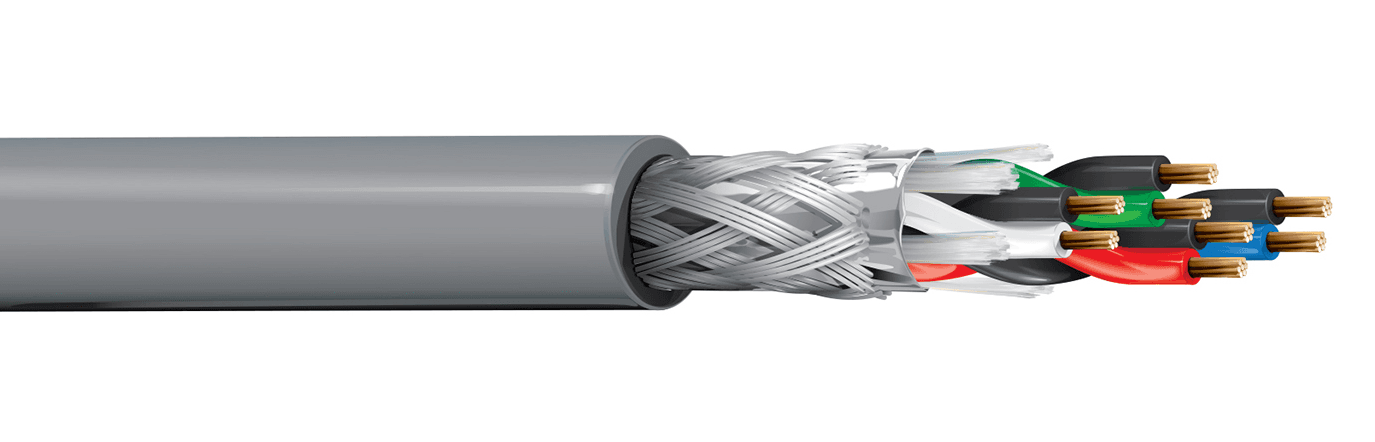

Belden 8334 060, Low Capacitance Computer Cable 4 Pair 24 AWG Shield PVC Chrome
SKU:Belden 8334 060
● In stock
Description
Belden 8334 060 is a low capacitance computer EIA RS-232 cable designed for extended distance communications, panel wiring, and low voltage analog and digital control signals. It is built with 4 pair(s) of 24 AWG stranded (7x32) TC - Tinned Copper conductors and SR-PVC - Polyvinyl Chloride (Semi-Rigid) insulation. For noise rejection, it uses a braid over foil shield with Bi-Laminate (Alum+Poly) tape (100% coverage) plus a Tinned Copper (TC) braid (65% coverage). The cable is finished with a PVC - Polyvinyl Chloride jacket in Chrome and is intended for indoor installations with Article 800, CMG compliance.
Belden 8334 060 Key Features
- Computer EIA RS-232 cable construction supports extended distance communications and computer communications.
- 4 pair(s) of 24 AWG stranded (7x32) TC - Tinned Copper conductors support low voltage analog and digital control signals.
- SR-PVC - Polyvinyl Chloride (Semi-Rigid) insulation is paired with a PVC - Polyvinyl Chloride jacket in Chrome.
- Braid over foil shield design with Bi-Laminate (Alum+Poly) tape (100% coverage) plus Tinned Copper (TC) braid (65% coverage) supports noise rejection.
- Meets Article 800, CMG and includes UL voltage rating: 300 V (CMG), 300 V (UL AWM 2464).
Belden 8334 060 Applications
- Supports RS-232 extended distance applications where maintaining signal integrity over longer runs is important.
- Enables computer communications links that require consistent performance in connected equipment.
- Handles low voltage analog signals (4-20ma, 0-10v, ...) in control and monitoring circuits.
- Supports low voltage digital control (24v, …) where reliable signal transmission is needed.
- Works in line level audio connections where shielding helps protect sensitive signals.
- Fits panel wiring layouts where organized routing and noise rejection are required.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Nom. insulation thickness | 0.011 in (0.28 mm) |
| Nom. insulation diameter | 0.044 in (1.1 mm) |
| Color Code | Western Electric Standard |
| Nom. jacket thickness | 0.035 in (0.89 mm) |
| Nom. jacket diameter | 0.272 in (6.91 mm) |
| Overall cable diameter (nominal) | 0.272 in (6.91 mm) |
| Bulk cable weight | 44 lbs/1000ft |
| Nom. conductor DCR | 28.8 Ohm/1000ft |
| Max. Conductor DCR | 9.38 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 30 pF/ft (98 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 50 pF/ft (160 pF/m) |
| Nom. characteristic impedence | 75 Ohm |
| Nom. velocity of prop. | 60% |
| Max. current | 2.2 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 6.2 Ohm/1000ft (20 Ohm/km) |
| UL temperature | 80°C |
| Operating temperature | -30°C to +80°C |
| Stationary min. bend radius | 2.7 in (69 mm) |
| Installation min. bend radius | 2.7 in (69 mm) |
| Max Pull Tension | 44 lbs (20 kg) |
| Environmental suitability | Indoor |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4 |
| CPR compliance | CPR Euroclass: Eca |
| AWM compliance | AWM 2464, AWM I A |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 8334 060100 UPC 612825204299; 8334 060250; 8334 060500 UPC 612825204312; 8334 0601000 UPC 612825204305 |
| Priced Per | FT |
