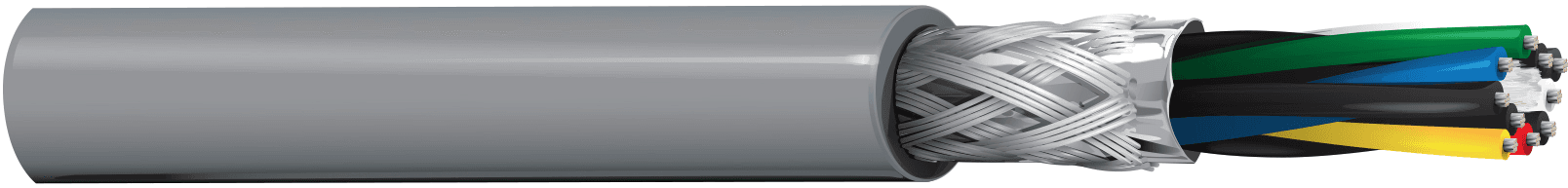

Belden 8335 060, Multi Conductor Computer Cable 5 Pair 24 AWG Shield PVC
Description
Belden 8335 060 is a Computer EIA RS-232 Cable designed for extended distance RS-232 links, computer communications, and low voltage analog and digital control signals. It is built with 5-pair 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, and a dual-shield construction for improved noise rejection. The cable is finished with a PVC jacket in Chrome and is rated 300 V (CMG) and 300 V (UL AWM 2464).
Belden 8335 060 Key Features
- 5-pair 24 AWG stranded (7x32) TC - tinned copper conductors for computer and control signal wiring.
- Dual-shield design: Beldfoil® (100% coverage) plus tinned copper braid shield (65% coverage) for improved noise rejection.
- SR-PVC - Polyvinyl Chloride (Semi-Rigid) insulation with Western Electric Standard color code.
- PVC - Polyvinyl Chloride jacket in Chrome for indoor suitability.
- UL voltage rating: 300 V (CMG), 300 V (UL AWM 2464).
Belden 8335 060 Applications
- Supports extended distance RS-232 applications where reliable serial communication is required over longer links.
- Fits computer communications systems that use EIA RS-232 signaling.
- Handles low voltage analog signals (4-20ma, 0-10v, ...) in control and signal distribution setups.
- Works with low voltage digital control (24v, …) used in automation and control wiring.
- Runs line level audio signals where consistent signal transfer is needed.
- Commonly used for panel wiring in indoor control panels and equipment enclosures.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Element | Pair(s) |
| Number of elements | 5 |
| Insulation thickness (nom.) | 0.0105 in (0.267 mm) |
| Insulation diameter (nom.) | 0.044 in (1.1 mm) |
| Shield (tape) | Bi-Laminate (Alum+Poly), 100% |
| Shield (braid) | Tinned Copper (TC), 65% |
| Jacket thickness (nom.) | 0.035 in (0.89 mm) |
| Overall cable diameter (nominal) | 0.295 in (7.49 mm) |
| Bulk cable weight | 52 lbs/1000ft |
| Nom. conductor DCR | 28.8 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 30 pF/ft (98 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 50 pF/ft (160 pF/m) |
| Nom. characteristic impedence | 75 Ohm |
| Nom. velocity of prop. | 60% |
| Max. current | 2.2 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 6.7 Ohm/1000ft (22 Ohm/km) |
| Operating temperature | -30°C to +80°C |
| UL temperature | 80°C |
| Bend radius (stationary min.) | 2.9 in (74 mm) |
| Bend radius (installation min.) | 2.9 in (74 mm) |
| Max Pull Tension | 55 lbs (25 kg) |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMG |
| AWM compliance | AWM 2464, AWM I A |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 8335 060100 UPC 612825204398; 8335 060250; 8335 060500 UPC 612825204411; 8335 0601000 UPC 612825204404 |
| Priced Per | FT |
