Belden 8336 060, Multi Conductor Computer Cable 6 Pair 24 AWG Shield PVC
SKU:Belden 8336 060
● In stock
Description

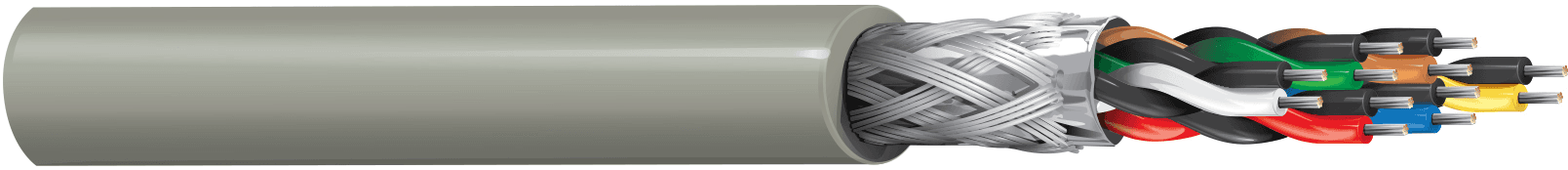

Belden 8336 060 is a Computer EIA RS-232 Cable designed for extended distance RS-232 links, computer communications, and low voltage analog and digital control signals. It is built with 6-pair 24 AWG stranded (7x32) tinned copper conductors and semi-rigid PVC insulation. A dual overall shield—Beldfoil® (100% coverage) plus tinned copper braid shield (65% coverage)—supports signal integrity in electrically noisy environments. The PVC jacket is Chrome and meets CMG/Article 800 compliance.
Belden 8336 060 Key Features
- 6-pair 24 AWG stranded (7x32) tinned copper conductors for RS-232 and control-signal wiring.
- Dual overall shielding with Beldfoil® (100% coverage) plus tinned copper braid shield (65% coverage) for noise rejection.
- PVC jacket in Chrome with CMG/Article 800 compliance.
Belden 8336 060 Applications
- Supports extended distance RS-232 applications where reliable serial communication is required.
- Connects computer communications links that carry data between equipment.
- Handles low voltage analog signals (4-20ma, 0-10v, ...) in control and signal-transfer setups.
- Enables low voltage digital control (24v, …) for device control and automation signaling.
- Serves line level audio runs where consistent signal transfer is needed.
- Used for panel wiring in indoor installations.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Cable type | Computer EIA RS-232 Cable |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | SR-PVC - Polyvinyl Chloride (Semi-Rigid) |
| Color Code | Western Electric Standard |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Tape shield material | Bi-Laminate (Alum+Poly) |
| Tape coverage | 100% |
| Braid shield material | Tinned Copper (TC) |
| Braid coverage | 65% |
| Insulation nominal thickness | 0.0105 in (0.267 mm) |
| Insulation nominal diameter | 0.044 in (1.1 mm) |
| Jacket nominal thickness | 0.035 in (0.89 mm) |
| Overall cable diameter (nominal) | 0.310 in (7.87 mm) |
| Bulk cable weight | 57 lbs/1000ft |
| Nom. conductor DCR | 28.8 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 30 pF/ft (98 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 50 pF/ft (160 pF/m) |
| Nom. characteristic impedence | 75 Ohm |
| Nom. velocity of prop. | 60% |
| Max. current | 1.96 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 6.6 Ohm/1000ft (22 Ohm/km) |
| UL Voltage Rating | 300 V (CMG), 300 V (UL AWM 2464) |
| Operating temperature | -30°C to +80°C |
| UL temperature | 80°C |
| Bend radius (stationary min.) | 3.1 in (79 mm) |
| Bend radius (installation min.) | 3.1 in (79 mm) |
| Max Pull Tension | 66 lbs (30 kg) |
| Environmental suitability | Indoor |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMG |
| AWM compliance | AWM 2464, AWM I A |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 8336 060100 UPC 612825204510; 8336 060250; 8336 060500 UPC 612825204534; 8336 0601000 UPC 612825204527 |
| Priced Per | FT |
