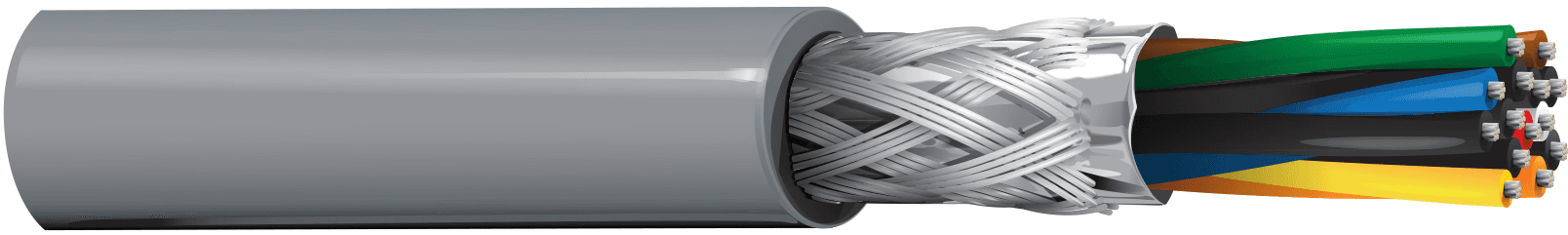

Belden 8337 060, Multi Conductor Computer Cable 7 Pair 24 AWG Shield PVC
SKU:Belden 8337 060
● In stock
Description
Belden 8337 060 is a Computer EIA RS-232 Cable designed for multi-pair signal transmission in extended distance RS-232 links, computer communications, and low voltage control and analog applications. It features 7 pairs of 24 AWG Stranded (7x32) Tinned Copper Conductors with semi-rigid PVC Insulation and dual overall shielding for noise rejection. The overall Beldfoil® (100% coverage) plus Tinned Copper Braid Shield (65% coverage) is protected by a PVC Jacket. The cable is rated 300 V (CMG), 300 V (UL AWM 2464).
Belden 8337 060 Key Features
- 7 pairs of 24 AWG Stranded (7x32) Tinned Copper Conductors support multi-pair signal transmission.
- Semi-rigid PVC Insulation helps maintain consistent conductor separation and cable construction.
- Dual overall shielding with Beldfoil® (100% coverage) plus Tinned Copper Braid Shield (65% coverage) provides noise rejection.
- PVC Jacket supports durable indoor installations.
- UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464).
Belden 8337 060 Applications
- Supports RS-232 extended distance applications where multi-pair signal transmission is required over longer links.
- Works well for computer communications wiring where reliable signal transfer is needed.
- Handles low voltage analog signals (4-20ma, 0-10v, ...) in control and instrumentation-style connections.
- Supports low voltage digital control (24v, …) for control signaling and related low voltage circuits.
- Fits line level audio connections where signal integrity is important.
- Commonly used in panel wiring to route and organize multi-pair signal and control connections inside panels.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Cable type | Computer EIA RS-232 Cable |
| Number of pairs | 7 |
| Conductor size | 24 AWG |
| Conductor stranding | 7x32 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | SR-PVC - Polyvinyl Chloride (Semi-Rigid) |
| Insulation nominal thickness | 0.0105 in (0.267 mm) |
| Insulation nominal diameter | 0.044 in (1.1 mm) |
| Color Code | Western Electric Standard |
| Shield tape material | Bi-Laminate (Alum+Poly) |
| Shield braid material | Tinned Copper (TC) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Color | Chrome |
| Jacket nominal thickness | 0.035 in (0.89 mm) |
| Overall cable diameter (nominal) | 0.321 in (8.15 mm) |
| Nominal conductor DCR | 28.8 Ohm/1000ft |
| Nominal capacitance (Cond-to-Cond) | 30 pF/ft (98 pF/m) |
| Nominal capacitance (Cond-to-other (conds + Shield)) | 50 pF/ft (160 pF/m) |
| Nominal characteristic impedence | 75 Ohm |
| Nominal velocity of prop. | 60% |
| Max. current | 1.96 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 6.7 Ohm/1000ft (22 Ohm/km) |
| Environmental suitability | Indoor |
| UL temperature | 80°C |
| Operating temperature | -30°C to +80°C |
| Bend radius (stationary min.) | 3.2 in (81 mm) |
| Bend radius (installation min.) | 3.2 in (81 mm) |
| Max Pull Tension | 82 lbs (37 kg) |
| Bulk cable weight | 60 lbs/1000ft |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMG |
| AWM compliance | AWM 2464, AWM I A |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 8337 060100 UPC 612825204541; 8337 060250; 8337 060500 UPC 612825204565; 8337 0601000 UPC 612825204558 |
| Priced Per | FT |
