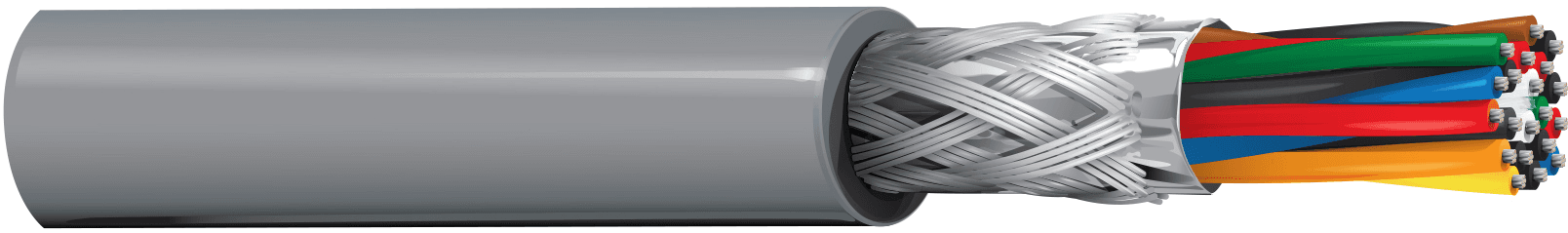

Belden 8340 060, Multi Conductor Computer Cable 10 Pair 24 AWG Shield PVC
Description
Belden 8340 060 is a 10 pair Computer EIA RS-232 Cable designed for extended distance communications, panel wiring, and low voltage analog and digital control signals. It uses 24 AWG stranded (7x32) tinned copper conductors with SR-PVC - Polyvinyl Chloride (Semi-Rigid) insulation. For noise rejection, it includes an overall Beldfoil® (100% coverage) plus tinned copper braid shield (65% coverage). The cable is finished with a PVC - Polyvinyl Chloride jacket in Chrome and is rated 300 V (CMG), 300 V (UL AWM 2464).
Belden 8340 060 Key Features
- 10 pair(s) construction for Computer EIA RS-232 Cable applications.
- 24 AWG stranded (7x32) TC - Tinned Copper conductors.
- SR-PVC - Polyvinyl Chloride (Semi-Rigid) insulation.
- Overall shield: Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage) for noise rejection.
- PVC - Polyvinyl Chloride jacket in Chrome.
- UL voltage rating: 300 V (CMG), 300 V (UL AWM 2464).
Belden 8340 060 Applications
- Supports RS-232 extended distance applications where reliable computer communications are needed.
- Fits computer communications installations that require a dedicated RS-232 cable design.
- Handles low voltage analog signals (4-20ma, 0-10v, ...) in control and signal wiring setups.
- Connects low voltage digital control (24v, …) for control-signal interconnects.
- Provides line level audio signal runs.
- Used for panel wiring in indoor installations.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Insulation thickness (nom.) | 0.0105 in (0.267 mm) |
| Color Code | White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe, White/Gray Stripe & Gray/White Stripe, Red/Blue Stripe & Blue/Red Stripe, Red/Orange Stripe & Orange/Red Stripe, Red/Green Stripe & Green/Red Stripe, Red/Brown Stripe & Brown/Red Stripe, Red/Gray Stripe & Gray/Red Stripe |
| Tape shield material | Bi-Laminate (Alum+Poly) |
| Tape coverage | 100% |
| Braid material | Tinned Copper (TC) |
| Braid coverage | 65% |
| Jacket thickness (nom.) | 0.035 in (0.89 mm) |
| Nom. diameter | 0.385 in (9.78 mm) |
| Overall cable diameter (nominal) | 0.385 in (9.78 mm) |
| Bulk cable weight | 81 lbs/1000ft (120 kg/km) |
| Nom. conductor DCR | 24 Ohm/1000ft (79 Ohm/km) |
| Nom. capacitance cond-to-cond | 30 pF/ft (98 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 50 pF/ft (160 pF/m) |
| Nom. characteristic impedence | 75 Ohm |
| Nom. velocity of prop. | 60% |
| Max. current | 1.1 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 3.5 Ohm/1000ft (11 Ohm/km) |
| UL temperature | 80°C (UL AWM 2464) |
| Operating temperature | -30°C to +80°C |
| Environmental suitability | Indoor |
| Flammability / reaction to fire | UL1685 FT4 Loading, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMG |
| AWM compliance | AWM 2464, AWM I A |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 8340 060100 UPC 612825204640; 8340 060250; 8340 060500 UPC 612825204664; 8340 0601000 UPC 612825204657 |
| Priced Per | FT |
