Belden 8342 060, Multi Conductor Computer Cable 12 Pair 124 AWG PVC
SKU:Belden 8342 060
● In stock
Description

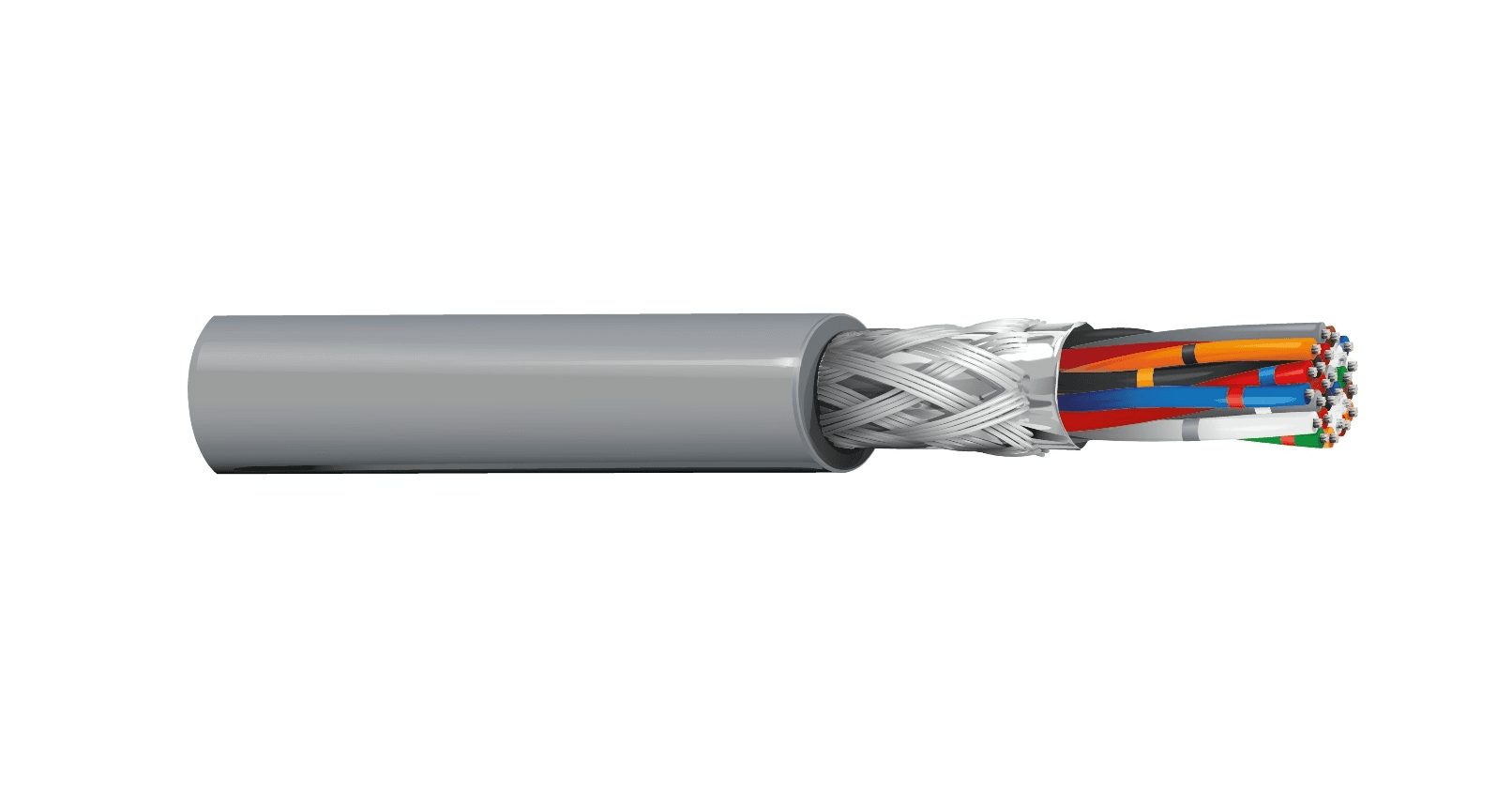

Belden 8342 060 is a Computer EIA RS-232 Cable designed for extended distance RS-232 links, computer communications, and low voltage analog and digital control signals. It uses 24 AWG stranded (7x32) TC - Tinned Copper conductors with SR-PVC - Polyvinyl Chloride (Semi-Rigid) insulation. For noise rejection, it features an overall Beldfoil® (100% coverage) plus tinned copper braid shield (65% coverage). The PVC jacket is Chrome and is intended for indoor installations.
Belden 8342 060 Key Features
- 24 AWG stranded (7x32) TC - Tinned Copper conductors for computer communications and control signal wiring.
- Conductor configuration: 12 pairs + 1 conductor for organized signal routing.
- Shield type: braid over foil shield with tape shield: Bi-Laminate (Alum+Poly), 100% and braid shield: tinned copper (TC), 65%.
- PVC - Polyvinyl Chloride jacket in Chrome for indoor use.
- UL voltage rating: 300 V (CMG), 300 V (UL AWM 2464).
- Operating temperature: -30°C to +80°C; UL temperature: 80°C.
Belden 8342 060 Applications
- Support RS-232 extended distance applications where longer RS-232 links are required.
- Use in computer communications connections that rely on RS-232 signaling.
- Carry low voltage analog signals (4-20ma, 0-10v, ...).
- Handle low voltage digital control (24v, …).
- Run line level audio signal connections.
- Apply in panel wiring where organized multi-pair signal routing is needed.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor Type | Stranded Conductor |
| Pairs | 12 |
| Insulation Material | SR-PVC - Polyvinyl Chloride (Semi-Rigid) |
| Nom. insulation thickness | 0.0105 in (0.267 mm) |
| Nom. insulation diameter | 0.044 in (1.1 mm) |
| Color Code (pairs) | Western Electric Standard |
| Color (Conductor) | Gray |
| Shielding | Yes |
| Shield construction | Special construction |
| Nom. jacket thickness | 0.040 in (1.0 mm) |
| Nom. diameter | 0.407 in (10.3 mm) |
| Overall cable diameter (nominal) | 0.407 in (10.3 mm) |
| Bulk cable weight | 100 lbs/1000ft |
| Nom. Conductor DCR (pairs) | 28.8 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 30 pF/ft (98 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 50 pF/ft (160 pF/m) |
| Nom. characteristic impedence | 75 Ohm |
| Nom. velocity of prop. | 60% |
| Max. current | 1.96 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 6.8 Ohm/1000ft (22 Ohm/km) |
| Bend radius (stationary min.) | 4.0 in (100 mm) |
| Bend radius (installation min.) | 4.0 in (100 mm) |
| Max Pull Tension | 137.5 lbs (62.37 kg) |
| Environmental suitability | Indoor |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMG |
| NEC rating | NEC CMG |
| AWM compliance | AWM 2464, AWM I A |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 8342 060100 UPC 612825204671; 8342 060250; 8342 060500 UPC 612825204695; 8342 0601000 UPC 612825204688 |
| Priced Per | FT |
