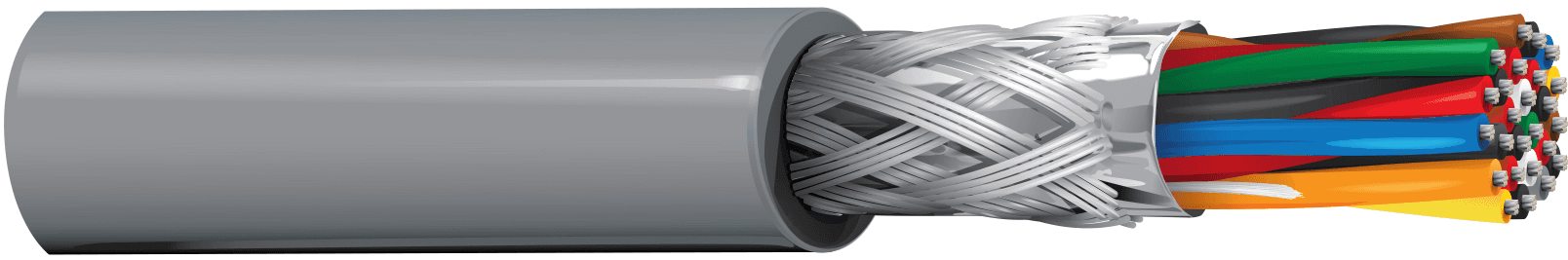

Belden 8345 060, Multi Conductor Computer Cable 15 Pair 24 AWG PVC R Shield PVC Chrome
SKU:Belden 8345 060
● In stock
Description
Belden 8345 060 is a 15-pair Computer EIA RS-232 Cable designed for extended distance RS-232 links, computer communications, and low voltage analog and digital control signals. It is built with 24 AWG Stranded (7x32) TC - Tinned Copper conductors and SR-PVC - Polyvinyl Chloride (Semi-Rigid) insulation. For noise protection, it uses an overall Beldfoil® (100% coverage) plus Tinned Copper (TC) braid shield (65% coverage). The PVC - Polyvinyl Chloride jacket is Chrome and is suited for Indoor environments.
Belden 8345 060 Key Features
- 15 pair construction (Number of elements: 15; Element type: pair(s)) for multi-signal RS-232 and control wiring.
- 24 AWG Stranded (7x32) TC - Tinned Copper conductors for flexible signal cabling.
- SR-PVC - Polyvinyl Chloride (Semi-Rigid) insulation with Nom. thickness: 0.0105 in (0.267 mm).
- Overall shielding combines Tape (Bi-Laminate (Alum+Poly), Tape coverage: 100%) plus Braid (Tinned Copper (TC), Braid coverage: 65%).
- PVC - Polyvinyl Chloride jacket in Chrome with Nom. jacket thickness: 0.040 in (1.0 mm).
- UL voltage rating: 300 V (CMG), 300 V (UL AWM 2464).
- Operating temperature: -30°C to +80°C; UL temperature: 80°C (UL AWM 2464).
- Environmental suitability: Indoor.
Belden 8345 060 Applications
- Supports extended distance RS-232 applications where reliable serial communication is needed over longer runs.
- Fits computer communications setups that require a multi-pair RS-232 cable for connecting equipment and systems.
- Handles low voltage analog signals (4-20ma, 0-10v, ...) in control and monitoring circuits.
- Enables low voltage digital control (24v, …) used in automation and control interfaces.
- Suites line level audio connections where signal integrity is important.
- Commonly used in panel wiring to route multiple control and communication signals within enclosures.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Conductor DCR (nom.) | 24 Ohm/1000ft (79 Ohm/km) |
| Capacitance, Cond-to-Cond (nom.) | 30 pF/ft (98 pF/m) |
| Capacitance, Cond-to-other (conds + Shield) (nom.) | 50 pF/ft (160 pF/m) |
| Characteristic impedence (nom.) | 75 Ohm |
| Velocity of prop. (nom.) | 60% |
| Max. current | 1.1 Amps per Conductor at 25ºC |
| Nom. outer shield DCR | 3.2 Ohm/1000ft (10 Ohm/km) |
| Overall cable diameter (nominal) | 0.445 in (11.3 mm) |
| Bulk cable weight | 113 lbs/1000ft (168 kg/km) |
| Max Pull Tension | 200 lbs (91 kg) |
| Flammability / reaction to fire | UL1685 FT4 Loading |
| NEC / UL compliance | Article 800, CMG |
| AWM compliance | AWM 2464, AWM I A |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Color Code | White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe, White/Gray Stripe & Gray/White Stripe, Red/Blue Stripe & Blue/Red Stripe, Red/Orange Stripe & Orange/Red Stripe, Red/Green Stripe & Green/Red Stripe, Red/Brown Stripe & Brown/Red Stripe, Red/Gray Stripe & Gray/Red Stripe, Black/Blue Stripe & Blue/Black Stripe, Black/Orange Stripe & Orange/Black Stripe, Black/Green Stripe & Green/Black Stripe, Black/Brown Stripe & Brown/Black Stripe, Black/Gray Stripe & Gray/Black Stripe |
| Priced Per | FT |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 8345 060100; 8345 060250; 8345 060500 UPC 612825204718; 8345 0601000 UPC 612825204701 |
