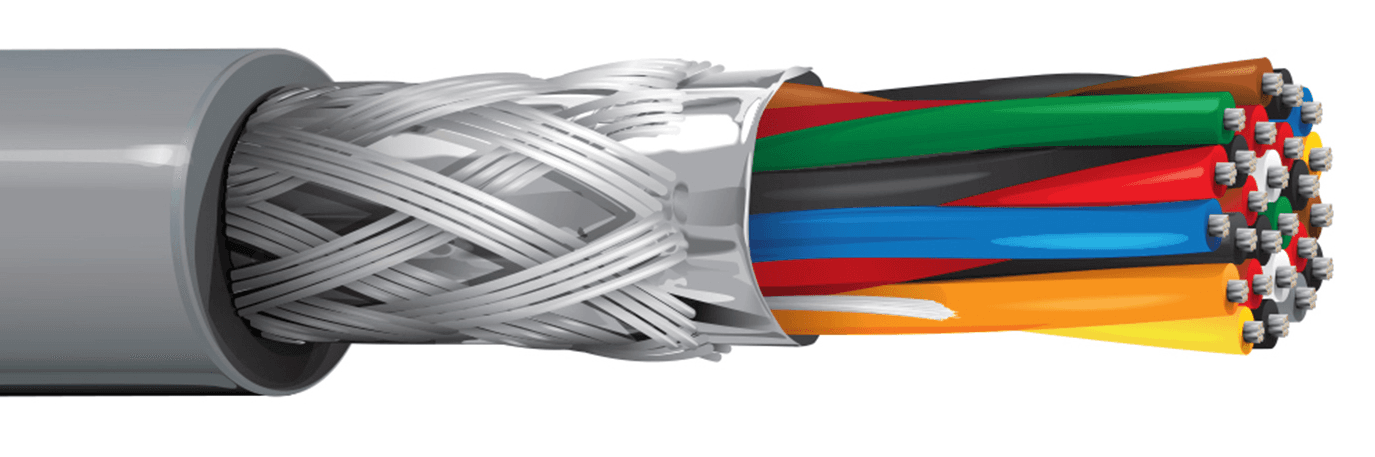

Belden 8348 060, Multi Conductor Computer Cable 18 Pair 24 AWG PVC Shield
SKU:Belden 8348 060
● In stock
Description
Belden 8348 060 is a multi-pair computer EIA RS-232 cable designed for extended distance RS-232 links, computer communications, and low voltage analog and digital control signals. It features 18 pairs of 24 AWG stranded (7x32) tinned copper conductors with semi-rigid PVC insulation. For noise rejection, it uses a dual overall shield: Beldfoil® (100% coverage) plus tinned copper braid shield (65% coverage), and a PVC jacket in Chrome. It is rated 300 V (CMG) and 300 V (UL AWM 2464) for indoor use.
Belden 8348 060 Key Features
- Designed for extended distance RS-232 links, computer communications, and low voltage analog and digital control signals.
- 18 pair(s) construction with 24 AWG stranded (7x32) tinned copper conductors.
- Semi-rigid PVC insulation with Western Electric Standard color code.
- Dual overall shielding: Beldfoil® (100% coverage) plus tinned copper braid shield (65% coverage) for noise rejection.
- PVC jacket in Chrome.
- UL voltage rating: 300 V (CMG), 300 V (UL AWM 2464).
- Environmental suitability: indoor.
Belden 8348 060 Applications
- Use in extended distance RS-232 applications where longer link runs are required.
- Deploy in computer communications systems that rely on RS-232 signaling.
- Support low voltage analog signals (4-20ma, 0-10v, ...) in control and signal distribution setups.
- Handle low voltage digital control (24v, …) for control circuits and related signaling.
- Connect line level audio signals.
- Apply in panel wiring where organized multi-pair terminations are needed.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Insulation thickness (nom.) | 0.011 in (0.28 mm) |
| Insulation diameter (nom.) | 0.044 in (1.1 mm) |
| Shield tape material | Bi-Laminate (Alum+Poly) |
| Shield braid material | Tinned Copper (TC) |
| Jacket thickness (nom.) | 0.045 in (1.1 mm) |
| Cable diameter (nom.) | 0.480 in (12.2 mm) |
| Bulk cable weight | 141 lbs/1000ft |
| Conductor DCR (nom.) | 28.8 Ohm/1000ft |
| Capacitance, Cond-to-Cond (nom.) | 30 pF/ft (98 pF/m) |
| Capacitance, Cond-to-other (conds + Shield) (nom.) | 50 pF/ft (160 pF/m) |
| Characteristic impedence (nom.) | 75 Ohm |
| Velocity of prop. (nom.) | 60% |
| Max. current | 2.2 Amps per Conductor at 25ºC |
| Outer shield DCR (nom) | 5.6 Ohm/1000ft (18 Ohm/km) |
| Operating temperature | -30°C to +80°C |
| UL temperature | 80°C |
| Bend radius (stationary min.) | 4.8 in (120 mm) |
| Bend radius (installation min.) | 4.8 in (120 mm) |
| Max Pull Tension | 198 lbs (89.8 kg) |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4 |
| CPR compliance | CPR Euroclass: Eca |
| NEC / UL compliance | Article 800, CMG |
| AWM compliance | AWM 2464 |
| CEC / C(UL) compliance | CMG |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Multi-Pair Cable |
| Other Part Numbers | 8348 060100; 8348 060250; 8348 060500 UPC 612825204732; 8348 0601000 UPC 612825204725 |
| Priced Per | FT |
