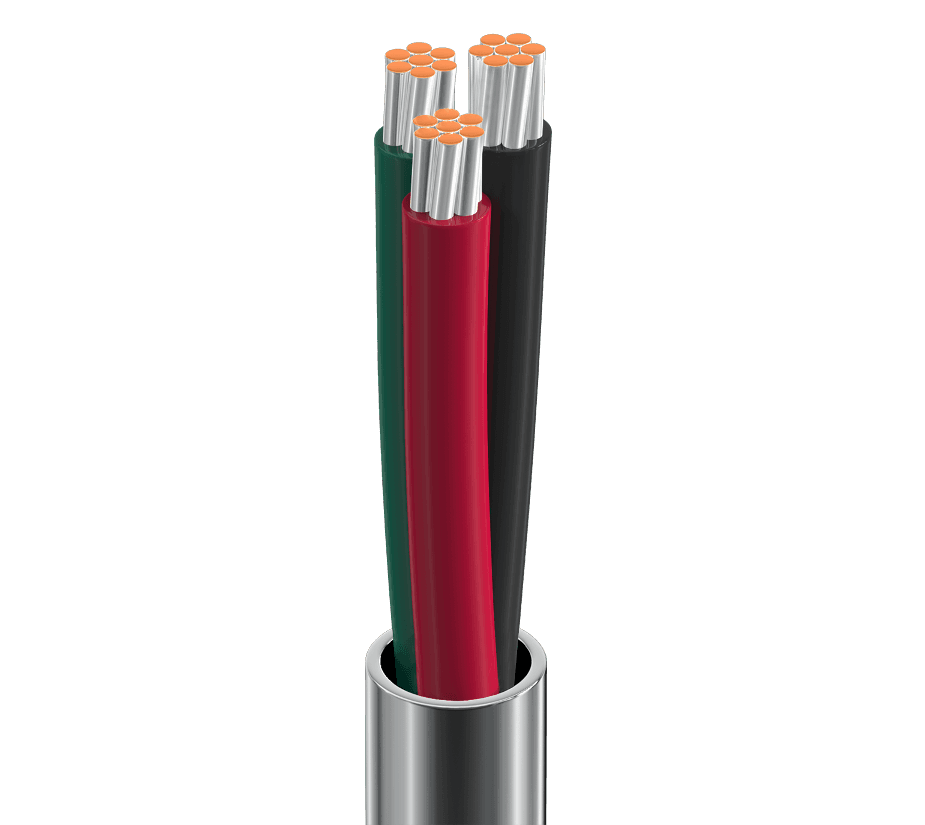

Belden 8443 060, Multi Conductor Cable 3C 22 AWG PVC Jacket
Description
Belden 8443 060 is a 3-conductor, 22 AWG multi-conductor cable with stranded (7x30) TC - Tinned Copper conductors, PVC - Polyvinyl Chloride insulation, and a PVC - Polyvinyl Chloride outer jacket. It has an indoor CMG rating and a nominal overall diameter of 0.172 in (4.37 mm) for general-purpose signal and control runs. Electrical characteristics include 17.8 Ohm/1000ft DCR and 34 pF/ft (110 pF/m) capacitance Cond-to-Cond.
Belden 8443 060 Key Features
- 3-conductor, 22 AWG construction for multi-conductor signal and control wiring.
- Stranded (7x30) TC - Tinned Copper conductors for flexible terminations.
- PVC - Polyvinyl Chloride insulation with a PVC - Polyvinyl Chloride outer jacket.
- Overall cable diameter (nominal): 0.172 in (4.37 mm).
- NEC / UL compliance: Article 800, CMG.
Applications
- Use it for low voltage analog signals (4-20ma, 0-10v, ...) in typical instrumentation and signal runs.
- Choose it for low voltage control (24v, …) where multi-conductor control wiring is needed.
- Install it for line level audio connections in installed wiring paths.
- Apply it to voice communications wiring where a multi-conductor cable is required.
- Select it for panel wiring in indoor environments.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 3 |
| Conductor size | 22 AWG |
| Conductor stranding | 7x30 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Outer jacket material | PVC - Polyvinyl Chloride |
| Color Code | Black, Red, Green |
| Nom. insulation thickness | 0.011 in (0.28 mm) |
| Nom. insulation diameter | 0.050 in (1.3 mm) |
| Nom. jacket thickness | 0.032 in (0.81 mm) |
| Bulk cable weight | 90 lbs/1000ft |
| Nom. conductor DCR | 17.8 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 34 pF/ft (110 pF/m) |
| Nom. inductance | 0.17 µH/ft (0.56 µH/m) |
| Max. current | 2.9 Amps per conductor at 25ºC |
| UL Voltage Rating | 300 V (CMG), 150 V (AWM 2576) |
| Environmental suitability | Indoor |
| Operating temperature | -20°C to +80°C |
| UL temperature | 80°C |
| Bend radius (stationary min.) | 1.7 in (43 mm) |
| Bend radius (installation min.) | 1.7 in (43 mm) |
| Max Pull Tension | 27 lbs (12 kg) |
| CEC / C(UL) compliance | CMG |
| AWM compliance | AWM 2576 |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
