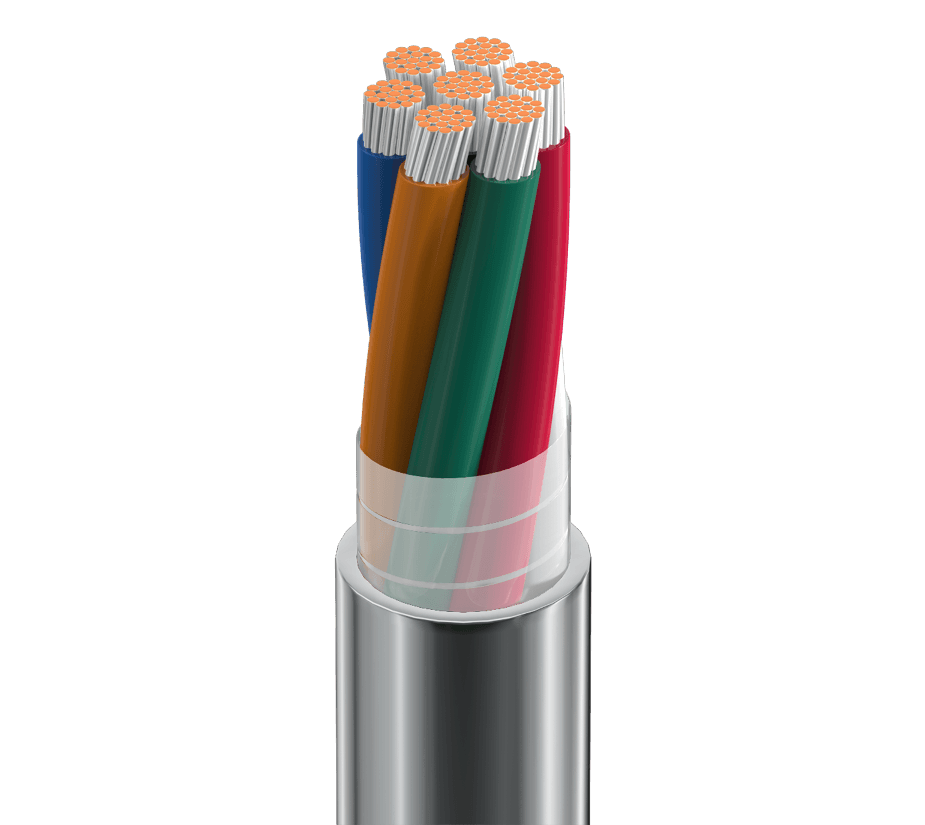

Belden 8444 060, Multi Conductor Cable 4C 22 AWG PVC
SKU:Belden 8444 060
$1.47/ FT
● In stock
Description
Belden 8444 060 is a 4 conductor 22 AWG multi conductor cable with stranded (7x30) TC - Tinned Copper conductors, PVC - Polyvinyl Chloride insulation, and a PVC - Polyvinyl Chloride outer jacket. It is rated 300 V (CMG) and 150 V (AWM 2576), and supports 2.4 Amps per Conductor at 25ºC. This cable is intended for indoor installations and meets CMG requirements under Article 800.
Belden 8444 060 Key Features
- 4 conductor 22 AWG multi conductor cable for low-voltage signal and control wiring.
- Stranded (7x30) TC - Tinned Copper conductors for flexible multi-conductor terminations.
- PVC - Polyvinyl Chloride insulation with a PVC - Polyvinyl Chloride outer jacket.
- UL voltage rating: 300 V (CMG), 150 V (AWM 2576).
- Max. current: 2.4 Amps per Conductor at 25ºC.
- Environmental suitability: indoor; NEC / UL compliance: Article 800, CMG.
Applications
- Well-suited for low voltage analog signals (4-20ma, 0-10v, ...) where consistent signal wiring is needed.
- Use it for low voltage control (24v, …) in control and automation wiring.
- Suitable for line level audio and voice communications wiring in indoor installations.
- A practical choice for panel wiring where multi-conductor routing is required.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Insulation nominal thickness | 0.011 in (0.28 mm) |
| Insulation nominal diameter | 0.050 in (1.3 mm) |
| Color Code | Black, White, Red, Green |
| Outer jacket nominal thickness | 0.032 in (0.81 mm) |
| Overall cable diameter (nominal) | 0.185 in (4.70 mm) |
| Bulk cable weight | 19 lbs/1000ft |
| Plenum number | 88444, 82444 |
| Nom. conductor DCR | 17.8 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 34 pF/ft (110 pF/m) |
| Nom. inductance | 0.17 µH/ft (0.56 µH/m) |
| UL temperature | 80°C |
| Operating temperature | -20°C to +80°C |
| Bend radius (stationary min.) | 1.9 in (48 mm) |
| Bend radius (installation min.) | 1.9 in (48 mm) |
| Max Pull Tension | 36 lbs (16 kg) |
| CEC / C(UL) compliance | CMG |
| AWM compliance | AWM 2576 |
| Flammability / reaction to fire | UL 1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
