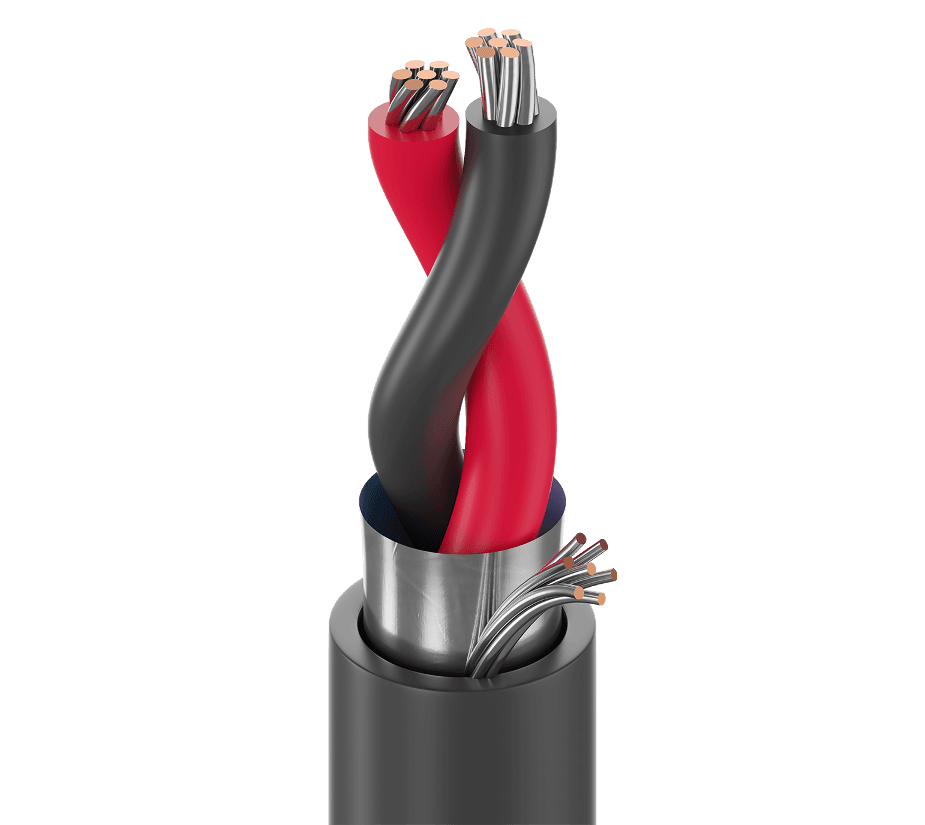

Belden 8451 008, Single Pair 22 AWG Shielded PVC Jacket

Belden 8451 008 is a 1 pair 22 AWG shielded twisted pair cable for low voltage signal and control applications. It uses 22 AWG stranded (7x30) TC - Tinned Copper conductors with PP - Polypropylene insulation, plus an overall Beldfoil® shield (100% coverage) and a 22 AWG stranded TC drain wire. The PVC - Polyvinyl Chloride jacket is rated for Indoor - Riser installations, with 45 Ohm nominal characteristic impedence and a 300 V UL Voltage Rating.

Belden 8451 008 Key Features

• 1 pair 22 AWG shielded twisted pair construction for low voltage signal and control wiring.
• Overall Beldfoil® shield with 100% coverage, supported by a 22 AWG (7x30) TC drainwire for shielding performance.
• PVC - Polyvinyl Chloride jacket designed for Indoor - Riser installations and permanent or semi-permanent runs.
• Electrical performance includes 45 Ohm nominal characteristic impedence and a 300 V UL Voltage Rating.

Belden 8451 008 Applications

• Use it for low voltage analog signals (4-20ma, 0-10v, ...) in signal and control circuits.
• Choose it for low voltage digital control (24v, …) where shielded signal wiring is needed.
• Install it for line level audio runs in permanent or semi-permanent installations.
• Specify it for computer communication connections where a shielded twisted pair is required.
• Rely on it for panel wiring in control panels and similar equipment.
• Prepare and terminate it with automatic stripping equipments.
