Belden 8502 002, Hook Up Wire 1C 20 AWG Tinned Copper PVC
SKU:Belden 8502 002
● In stock
Description

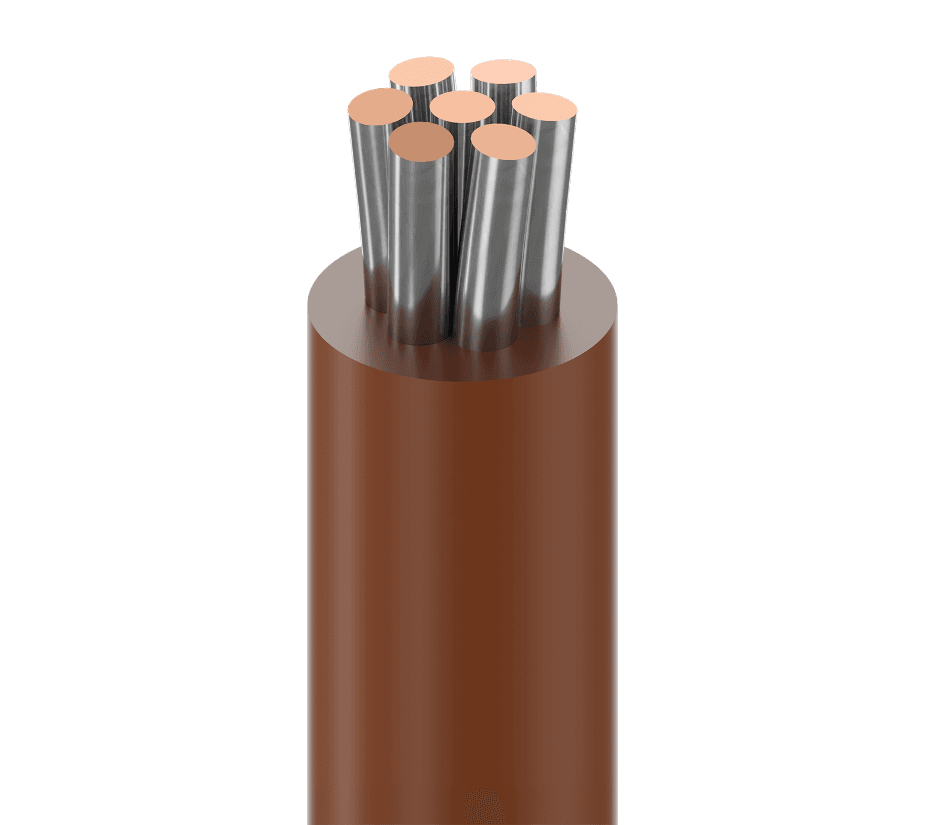

Belden 8502 002 is a low temp plastic lead wire for inter-connection circuits and internal wiring in computer, electronic equipment, meters, panels, and other electrical assemblies. It is a 1-conductor 20 AWG (7x28) wire with a TC - Tinned Copper conductor and PVC - Polyvinyl Chloride insulation in Red. Built to MIL-W-16878/1 (Type B) as product type M16878, it is rated 600 V RMS and 105°C, with an operating range of -40°C To +105°C. It is Not Shielded, suitable for Outdoor use, and RoHS compliant.
Applications
- Supports inter-connection circuits that require a low temp plastic lead wire.
- Used for internal wiring in computer and electronic equipments.
- Works for internal wiring in meters, panels, and other electrical or electronic equipment.
- Meets MIL-W-16878/1 (Type B) requirements for low temp applications.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Number of Conductors | 1 |
| Conductor size | 20 AWG |
| Stranding | 7x28 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation Color | Red |
| Shielded | Not Shielded |
| Product type | M16878 |
| Nom. thickness | 0.01 in (0.25 mm) |
| Nom. insulation diameter | 0.058 in (1.5 mm) |
| Overall cable diameter (nominal) | 0.058 in (1.5 mm) |
| Bulk cable weight | 4 lbs/1000ft |
| UL Voltage Rating | 600 V RMS |
| Nom. conductor DCR | 9.8 Ohm/1000ft |
| Max. current | Single Conductor in free air @ 30ºC: 14.0 A |
| UL temperature | 105°C |
| Operating | -40°C To +105°C |
| Bend radius (stationary min.) | 0.58 in (15 mm) |
| Bend radius (installation min.) | 0.58 in (15 mm) |
| Max Pull Tension | 11 lbs (5.0 kg) |
| Environmental suitability | Outdoor |
| Military compliance | MIL-W-16878/1 |
| Mil spec | MIL-W-16878/1 (Type B) |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| RoHS Compliant | Yes |
| Sustainability | CA Prop 65 |
| Priced Per | FT |
