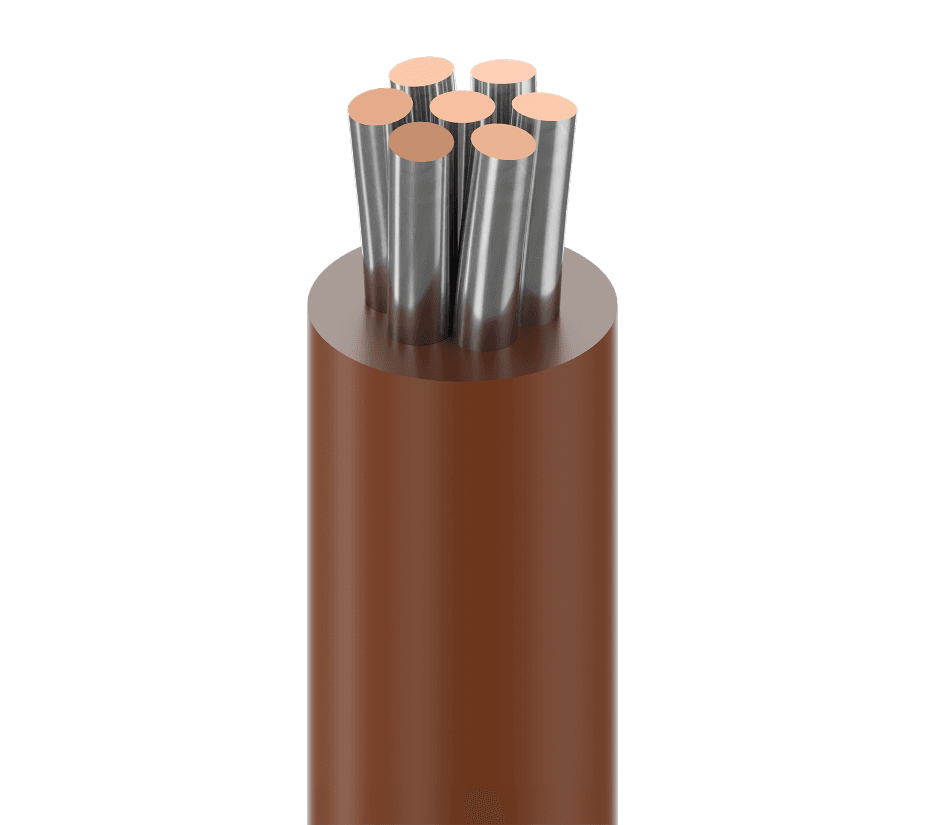

Belden 8502 004, Hook Up Wire 1C 20 AWG Tinned Copper PVC
SKU:Belden 8502 004
$1.39/ FT
● In stock
Description
Belden 8502 004 is a low temp plastic lead wire for inter-connection circuits and internal wiring in computer and electronic equipment. It is a 1-conductor 20 AWG (7x28) wire with a TC - Tinned Copper conductor and PVC - Polyvinyl Chloride insulation in Yellow. This Type B MIL-W-16878/1 wire is rated 600 V RMS and operates from -40°C To +105°C. It also meets EU CE Mark and RoHS directives.
Belden 8502 004 Applications
- Supports inter-connection circuits where a low temp plastic lead wire is specified.
- Used for internal wiring in computer and electronic equipment.
- Meets internal wiring needs in meters, panels, and electrical or electronic equipment.
- Suitable for (Type B) MIL-W-16878/1-Low Temp applications.
Belden™ and all associated trademarks are the property of their respective owners.
Specifications
| Attribute | Value |
|---|---|
| Wire type | low temp plastic lead wire |
| Number of Conductors | 1 |
| Conductor size | 20 AWG |
| Conductor stranding | 7x28 |
| Conductor Material | TC - Tinned Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation Color | Yellow |
| Shielded | Not Shielded |
| Nom. thickness | 0.01 in (0.25 mm) |
| Nom. insulation diameter | 0.058 in (1.5 mm) |
| Overall cable diameter (nominal) | 0.058 in (1.5 mm) |
| Bulk cable weight | 4 lbs/1000ft |
| UL Voltage Rating | 600 V RMS |
| Nom. conductor DCR | 9.8 Ohm/1000ft |
| Max. current | Single Conductor in free air @ 30ºC: 14.0 A |
| UL temperature | 105°C |
| Operating | -40°C To +105°C |
| Stationary min. bend radius | 0.58 in (15 mm) |
| Installation min. bend radius | 0.58 in (15 mm) |
| Max Pull Tension | 11 lbs (5.0 kg) |
| Environmental suitability | Outdoor |
| Military compliance | MIL-W-16878/1 |
| Mil spec | MIL-W-16878/1 (Type B) |
| Product type | M16878 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| RoHS Compliant | Yes |
| Sustainability | CA Prop 65 |
| Priced Per | FT |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
