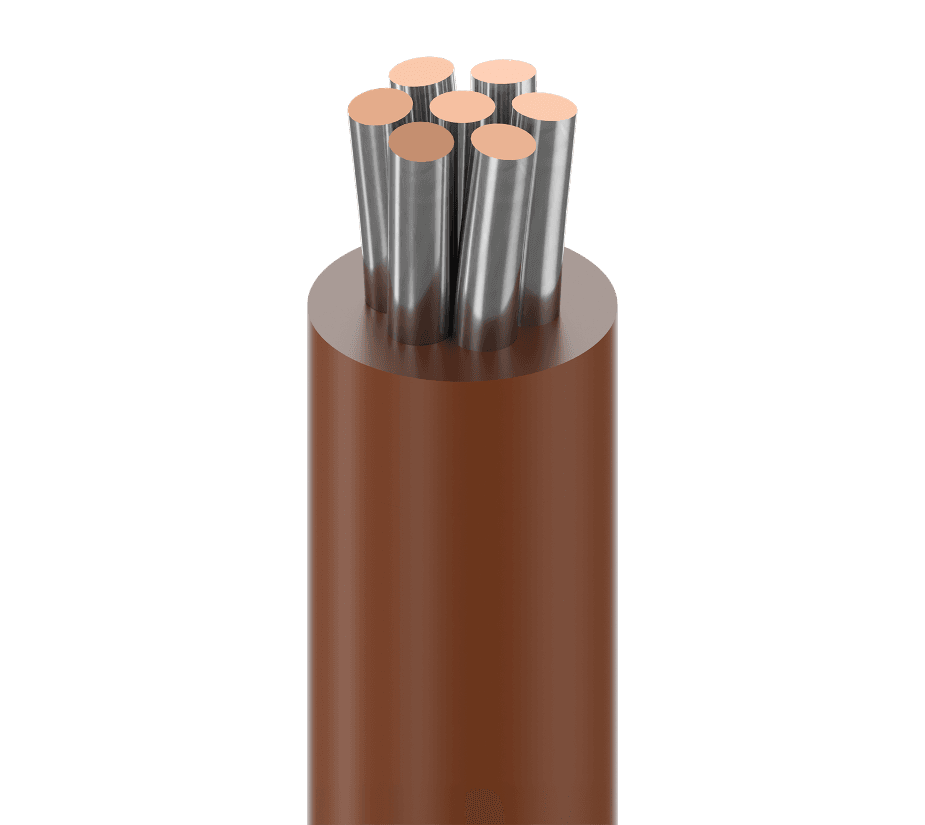

Belden 8502 009, Hook Up Wire 1C 20 AWG Tinned Copper PVC

Belden 8502 009 is a low temp plastic lead wire for inter-connection circuits and internal wiring of computer and electronic equipments, including (Type B) MIL-W-16878/1-Low Temp applications. It is a 1-conductor 20 AWG (7x28) TC - Tinned Copper wire with PVC - Polyvinyl Chloride insulation in White. This unshielded hook up wire is rated 600 V RMS and 105°C, with an operating temperature range of -40°C to +105°C. It is listed as suitable for outdoor use and includes compliance references such as CA Prop 65 and RoHS directives.

Belden 8502 009 Key Features

• 1-conductor 20 AWG (7x28) TC - Tinned Copper construction for internal wiring and inter-connection circuits.
• PVC - Polyvinyl Chloride insulation in White.
• Unshielded design.
• UL voltage rating: 600 V RMS.
• UL temperature: 105°C; operating temperature: -40°C to +105°C.
• Environmental suitability: outdoor.
• Compliance references include EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), RoHS compliant: Yes, and Sustainability: CA Prop 65.

Belden 8502 009 Applications

• Use in inter-connection circuits where a low temp plastic lead wire is needed for internal electrical connections.
• Support internal wiring of computer and electronic equipments in general-purpose electronic assemblies.
• Install for internal wiring of meters, panels, and electrical or electronic equipment where dependable point-to-point wiring is required.
• Meet (Type B) MIL-W-16878/1-Low Temp applications.

Belden™ and all associated trademarks are the property of their respective owners.
