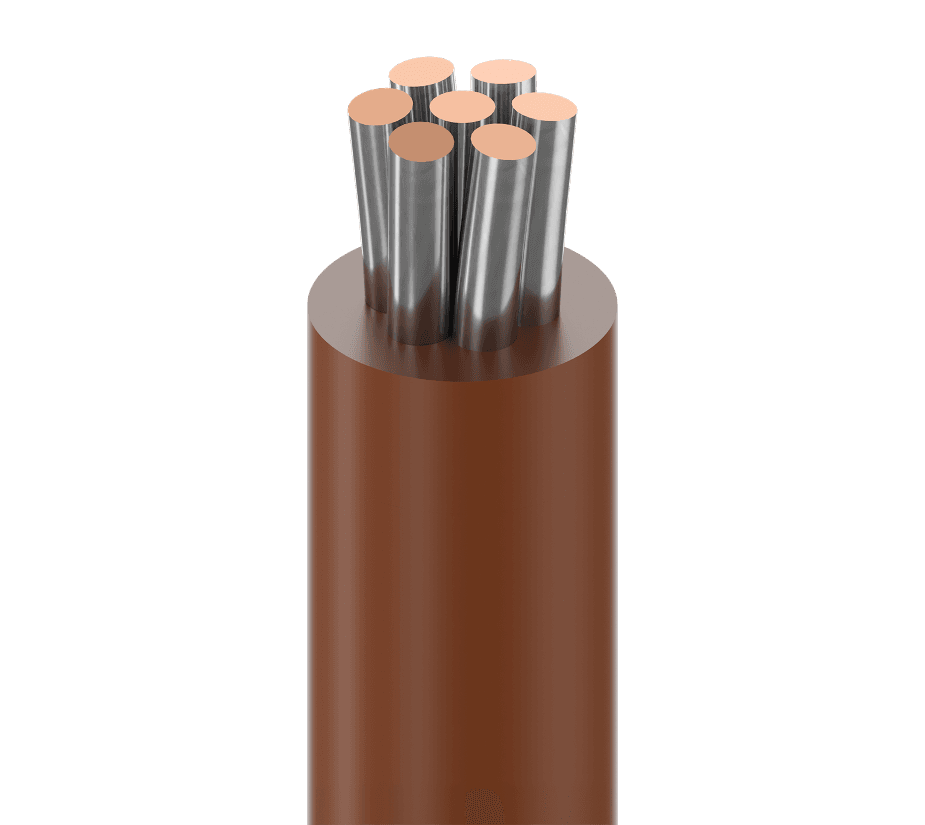

Belden 8502 010, Hook Up Wire 1C 20 AWG Tinned Copper PVC

Belden 8502 010 is a low temp plastic lead wire with a 20 AWG (7x28) TC - Tinned Copper conductor and PVC - Polyvinyl Chloride insulation. It is rated Type B MIL-W-16878/1 and supports 600 V RMS with a UL temperature rating of 105°C. This 1-conductor, not shielded hook up wire has a 0.058 in (1.5 mm) nominal diameter and is specified for outdoor environmental suitability.

Belden 8502 010 Key Features

• Built with a 20 AWG conductor using 7x28 stranding and TC - Tinned Copper material.
• PVC - Polyvinyl Chloride insulation with black insulation color.
• Rated Type B MIL-W-16878/1 with a UL voltage rating of 600 V RMS.
• UL temperature rating of 105°C and operating temperature of -40°C to +105°C.
• Compact 0.058 in (1.5 mm) nominal diameter and not shielded construction.

Belden 8502 010 Applications

• Supports inter-connection circuits where a dedicated hook up wire is needed for electrical and electronic wiring.
• Used for internal wiring of computer and electronic equipments.
• Suitable for internal wiring of meters, panels, and electrical or electronic equipment.
• Meets (Type B) MIL-W-16878/1-Low Temp applications.

Belden™ and all associated trademarks are the property of their respective owners.
